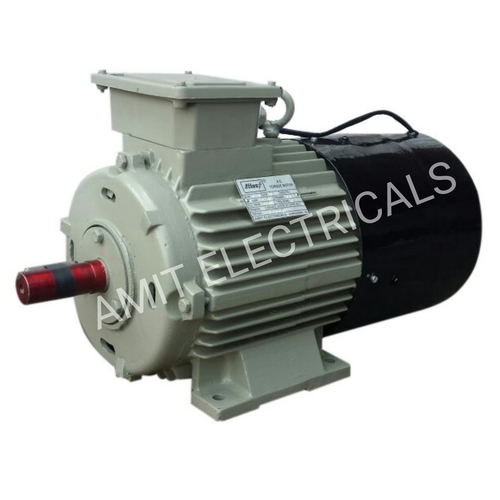

A C Torque Motor

A C Torque Motor
A C Torque Motor
Product Code : 24
Brand Name : Atlas
Product Description

Introduction
We are the manufacturer Atlas Brand Torque Motors. "Atlas" Make Torque Motor various applications where the rpm of motor is required to be changed with constant torque. Torque motor speed controlled either by providing three phases variac in series with stator winding.

Specifications:

Range of Production
Three Phase Torque Motor
0.25 H.p. to 15 H.p. (0.18 K.W. to 11 K.W.) Frame 63 to 180L in 2, 4, 6, 8, 10 & 12 Pole

Mounting
- Foot - Flange - Face

Frame
Torque Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame. In the application Which Need to drive motor on Low Rpm for Long time or Continues we suggest  higher  Frame  size.

Insulation
Torque Motor supply with class F insulation as standard feature  Also supply H on request of customer. Top (Thermal protection

Ratings
Torque motor Is Design to Work Continues. Torque Motor Supply With S1 Duty.


Voltage and Frequency
Three Phase Torque Motor Supply volts 415 +- 5% 50 Hz. +- 3% customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also.

Shaft & Rotor
Rotor is positive locking with Shaft key joint so that cannot move on high Full lord Torque. Shafts and Rotor are made by En-8 material. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise

Enclosure
Torque motor Supply with Enclosure T.E.F.C. and T.E.S.C. For Sp. Application Where need to run motor in more than 75% lower Rpm for that We supply Torque motor with Force cooling arrangement. it can improve to motor winding longer life and trouble free working.

Bearings & Lubrication
Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Application
Torque motor used in textile industries, wire/cable winding machine, plastic industries, paper mill machine, Steel rolling industries, machine tools, etc. Torque motor widely Use in In Application where need to material wind on drum or Bim.

Earthling terminals
Torque Motors provided with minimum two earthling terminals. One in the terminal box and other on foot.

Paints
All Torque motor are painted with semi glossy synthetic enamel paint. However sp. Paint is available On request.
