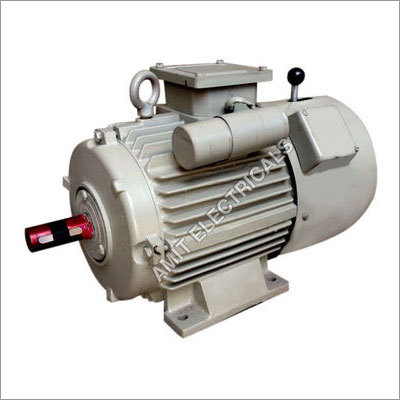

Single Phase Brake Motors

Single Phase Brake Motors
Single Phase Brake Motors
Product Code : 11
Brand Name : Atlas
Product Description

Indroduction

Atlas Make Brake Motor Ares for various applications requiring almost instant stopping of drive lord. Basically brake motor combination of an AC induction motor and a disc type, fail safe Electromagnetic brake unit. Brake motors are mfg. as per application motor. The motor brake in case of power supply failure ensuring further to a precise stop and quick braking action, the security of sudden inter venations in case of an unintentional power supply failure (i.e. power supply black-out, equipment failure)The braking action is obtained without axial sliding of shaft and provides equal braking torque in both directions of rotations



Brake Type

 Fail Safe Brake (Power off Shaft lock)



Range of Production


Single Phase Brake Motor

0.25 H.p. to 3 H.p. (0.18 K.W. to 2.2 K.W.) Frame 63 to 112M in 2 & 4, Pole



Mounting

 -  Foot        -   Flange     -   Face


Frame

Single Phase Brake Motor are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.



Insulation

Single Phase Brake Motor supply with class F insulation as standard feature. Also supply H on request of customer.



Ratings

-  Continues Duty Brake Motor (S1)

-  Short time Duty (S2)

-  Intermittent periodic Duty (S3)

-   Intermittent duty with Starting Duty (S4)

-  Intermittent duty with starting & ele. Braking (S5)



Voltage and Frequency

Single Phase Motor Are Supply volts 220 ± 5% 3 phase 50 Hz. ± 3%. we are also able to Supply motor in 110 volts on 50 or 60 HZ.  Also.


Shaft  & Rotor

Rotor is positive locking with Shaft key joint so that cannot move on high Full lord Torque.  Shafts are made by En-8 or En-9 material. Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise.



Bearings & Lubrication

Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.



Paints

All standard motor are painted with semi glossy synthetic enamel paint. However sp.Paint is available On request.



Application

Brake motor is specially suitable to be used with Lifting Machinery, Textile Machinery, Geared motor, Cable  Reeling Drums, Rolling Mills, Machine tools Ect.
