| Company Name |
AMIT ELECTRICALS |
| Brand |
Atlas |
| Product Name |

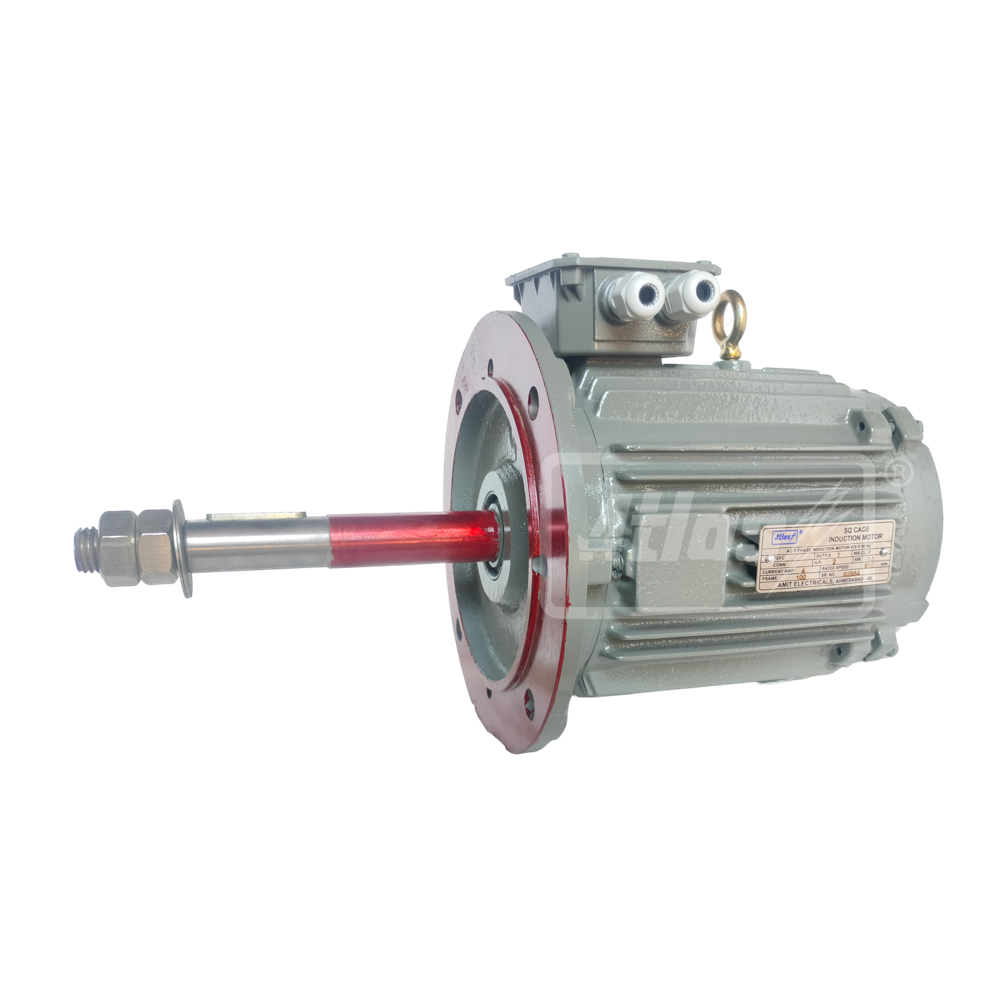

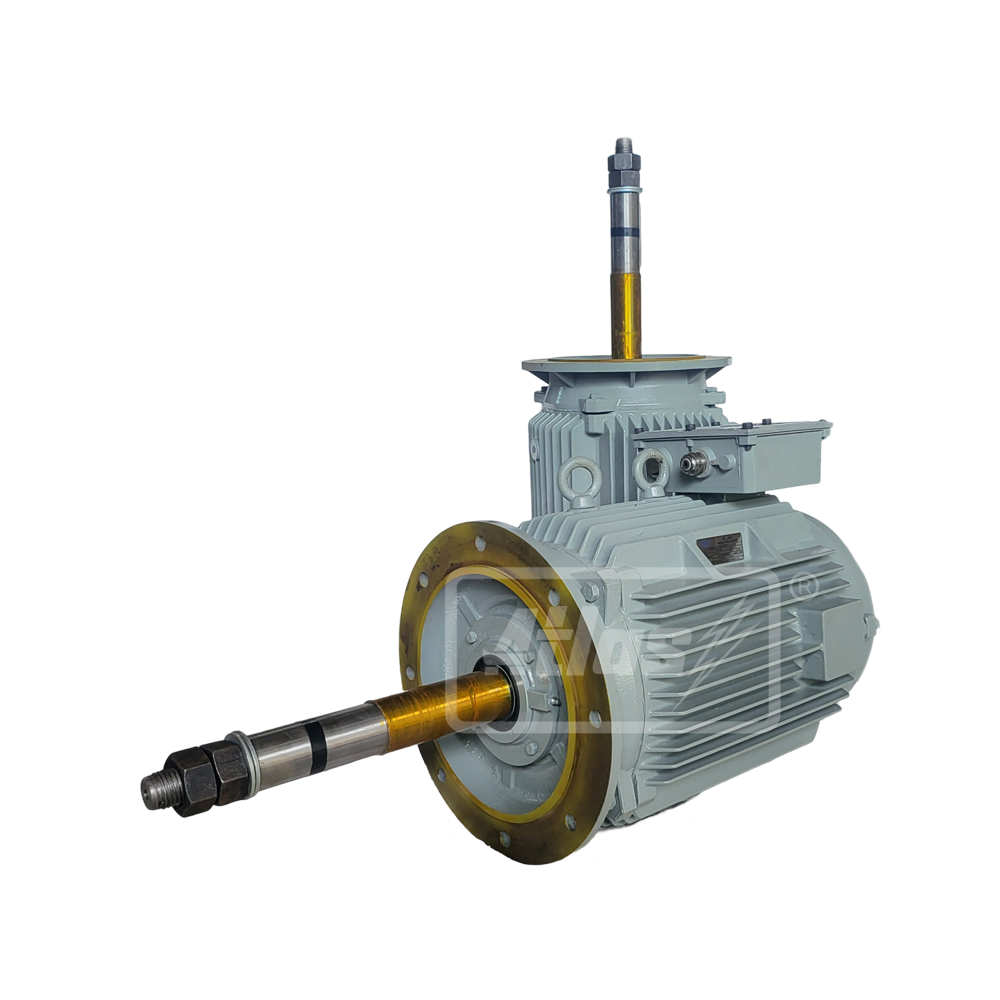

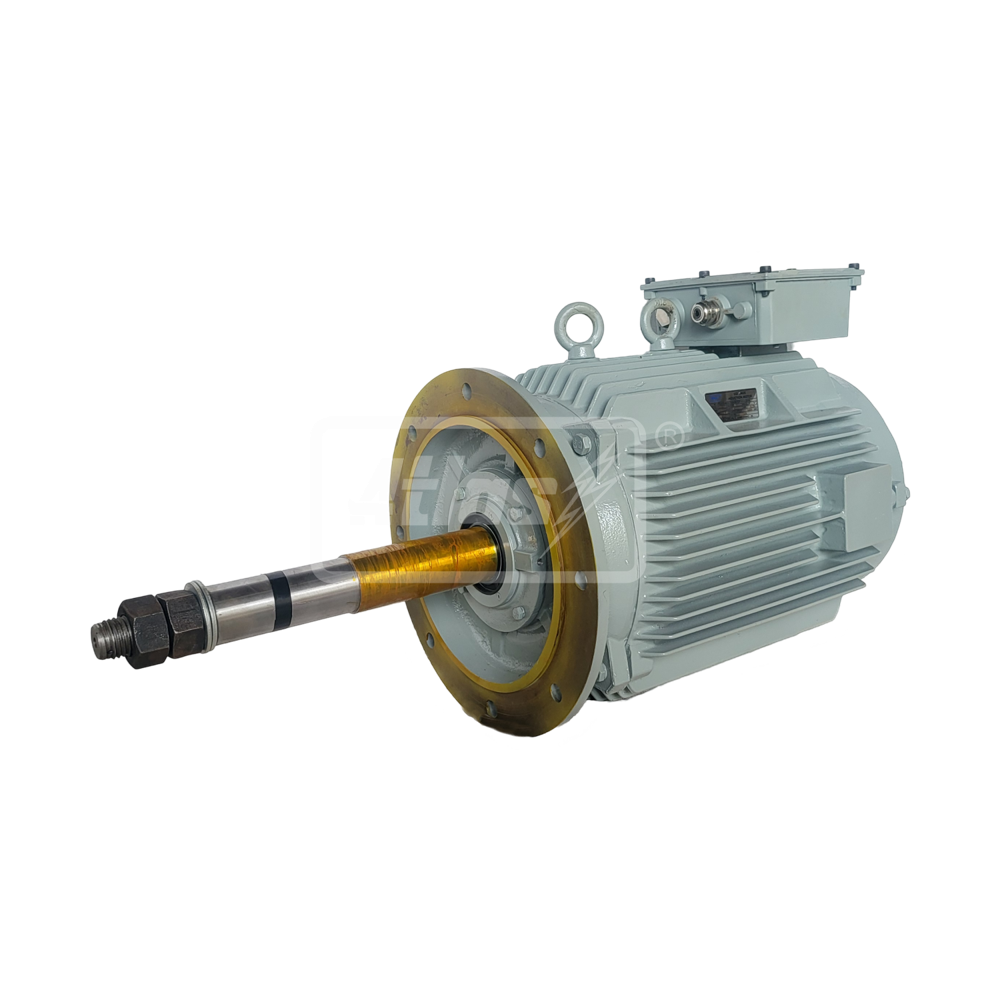

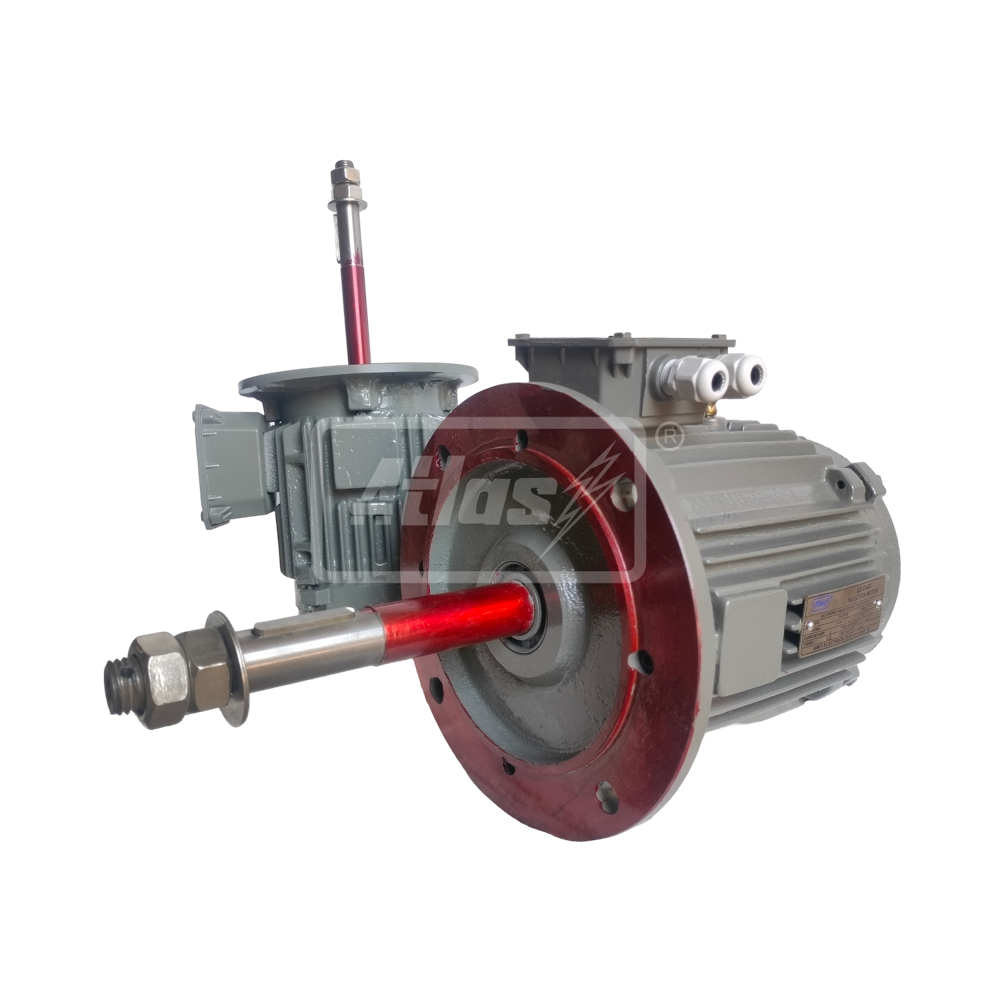

Cooling Tower Motor |
| Application |
Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery |
| Range of Production |
Power: 0.25 to 25 HP (0.18 to 18.5 KW)
Frame: 63 to 250M
Poles: 4, 6, 8, 10, 12
Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz |
| Mounting Types |
Flange (B5) |
| Frame Material |
Robust cast iron frame |
| Ratings |
S1: Continuous Duty |
| Voltage & Frequency |
Standard: 415 5%, 3 Phase, 50 Hz 3%
Optional: 220, 380, 460, 525 V at various frequencies |
| Protection |
IP55 protection
Suitable for up to 90% relative humidity |
| Shaft |
Material: Stainless Steel AISI-410
Nut & Washer: Stainless Steel AISI-202
Extended shaft for fan fitting
Corrosion protection |
| Insulation & Duty |
Insulation Class F
Designed for continuous operation (S1) |
| Bearings & Oil Seal |
Double shielded bearings (ZZ or 2RS)
Pre-lubricated with high temp grease
Oil seal prevents moisture ingress |
| Enclosure |
T.E.S.C. (Totally Enclosed Surface Cooled) |
| Thermal Overload Protection |
Optional T.O.P. switch available on demand |
| Earthing Terminals |
Minimum two: one in terminal box, one on body |
| Paint |
Semi-glossy synthetic enamel (special paints available on request) |
| Features |
Highly efficient
Durable
Smooth finishing
Economical price
Precision design
Long life |
