Price 7999.0 INR/ Piece

MOQ : 1 Piece

Hollow Shaft Motor Specification

  • Voltage
  • 220v to 480v. Volt (v)
  • Speed
  • 2000 RPM RPM
  • Warranty
  • 1Year
  • Power
  • 5 Horsepower (HP)
  • Phase
  • 3
  • Display Type
  • No
  • Material
  • Cost Iron


Hollow Shaft Motor Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • FOB Port
  • AHMEDBAD
  • Supply Ability
  • 5000 Pieces Per Month
  • Delivery Time
  • 1 Days
  • Sample Available
  • No
  • Packaging Details
  • EXPORT PACKING AVAILABLE
  • Certifications
  • ISO AND CE

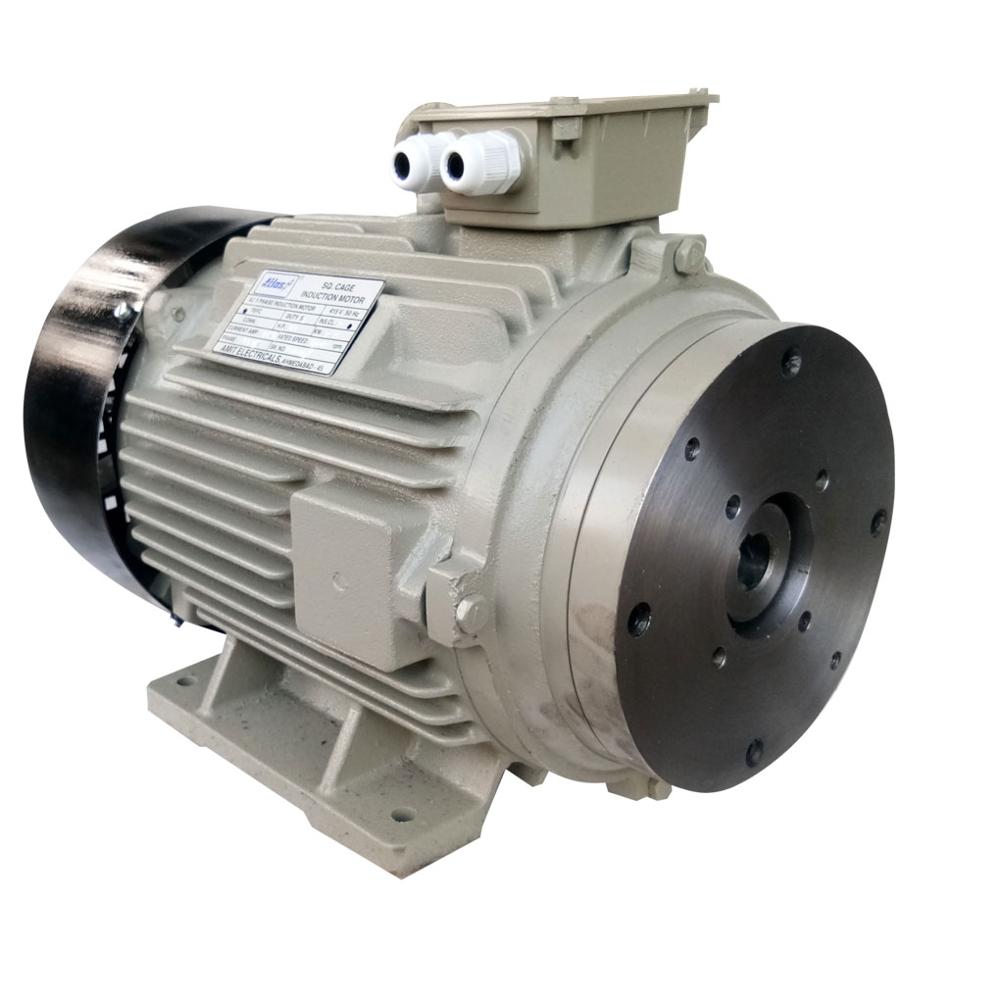

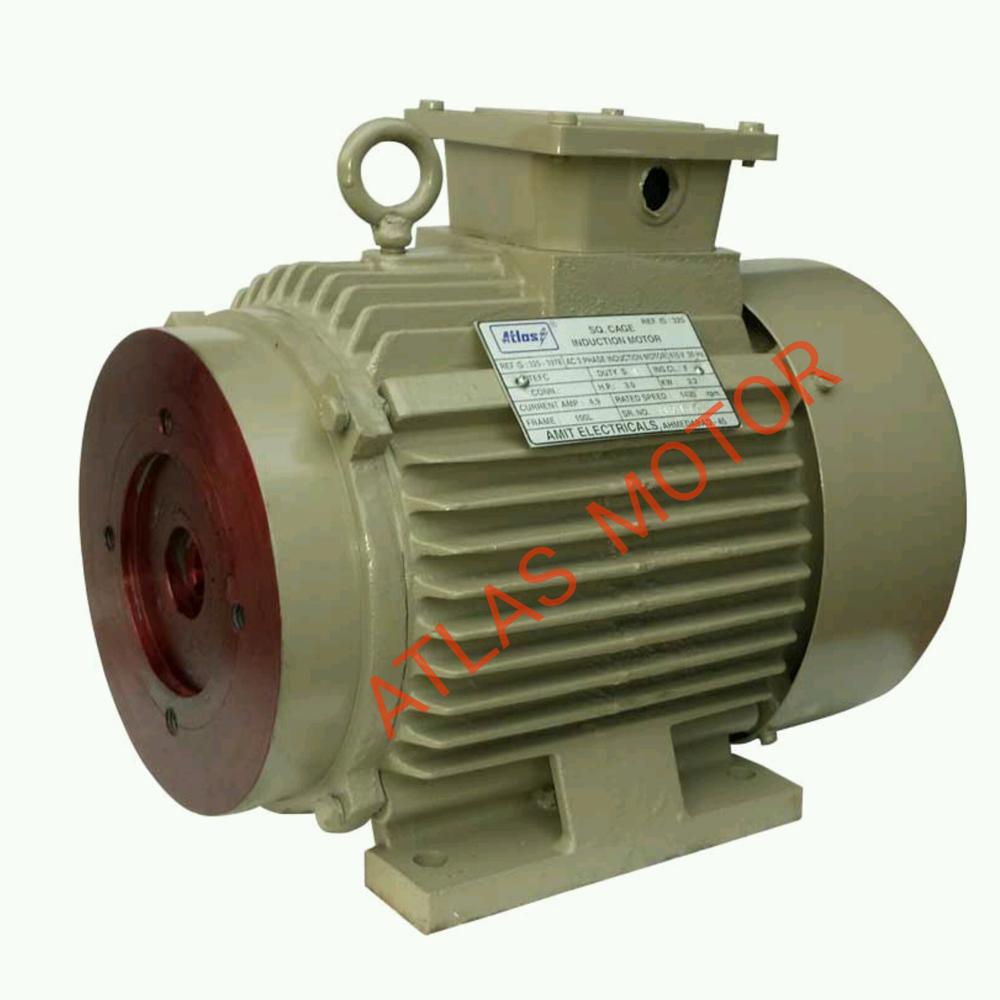

About Hollow Shaft Motor

We are attaining respect and recommendation from our customers for marketing in a panoramic spectrum of Hollow Shaft Motors. They help in catering countless number of industrial applications ranging from rotary tables to several printing and packaging applications. The motors offer an outstanding functioning throughout their entire lifetime due to their rugged structure and high tensile strength. The Hollow Shaft Motors are audited by experts panels to assure that they are free from every error and defect.

Hollow Shaft Motor Specifications
  • Range : Hollow shaft Three Phase Motors 0.10 H.p. to 20H.p. (0.075 K.W. to 15 K.W.) Frame 63 to 180L in 2, 4, 6, 8, 10 & 12 Pole
Company Name AMIT ELECTRICALS
Brand Atlas
Product Name Hollow Shaft Motor
Operation Shaft with one side hole, both sides hole, or throughout hole
Range of Production 0.5 to 50 HP (0.37 to 37.5 KW)
Frame: 63 to 180L
Poles: 2, 4, 6, 8, 10, 12
Mounting Types Foot (B3)
Flange (B5)
Foot with Flange (B35)
Frame Material Robust cast iron frame with integral feet
Aluminum body available up to 100L frame (on request)
Insulation Class F (Standard), Class H (on request)
Ratings Continuous duty (as per standard)
Voltage & Frequency Standard: 415 -/+ 5%, 50 Hz -/+ 3%
Optional: 220, 380, 460, 525 V at 50 or 60 Hz (on request)
Protection IP44 (Standard)
Optional: IP54, IP55 (on request)
Shaft & Rotor Shaft: High carbon steel pipe or stainless steel (on request)
Rotor: High-pressure E.C. Grade aluminum die-cast, dynamically balanced
Bearings & Lubrication Bearings: C3 ball bearings
Lubrication: Lithium-based grease (up to 150 deg C)
Thermal Overload Protection Optional T.O.P. switch available on customer request
Terminal Box Top position for Foot mounted (B3), left/right positions available (on request)
Earthing Terminals Minimum two: one in terminal box, one on foot
Application Pumps
Gear Boxes
Pharma and Chemical industries
Textile machinery
Features Highly efficient
Durable
Smooth finishing
Economical price
Precision design
Long life
