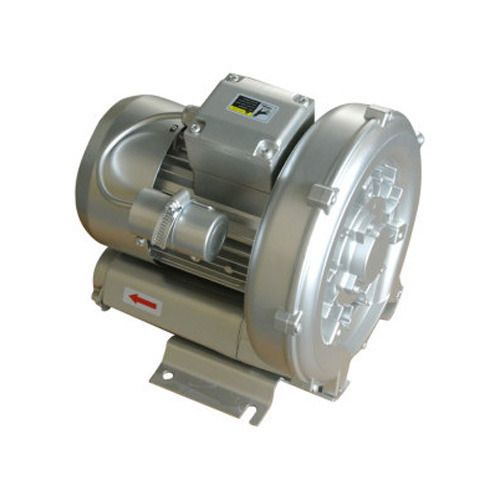

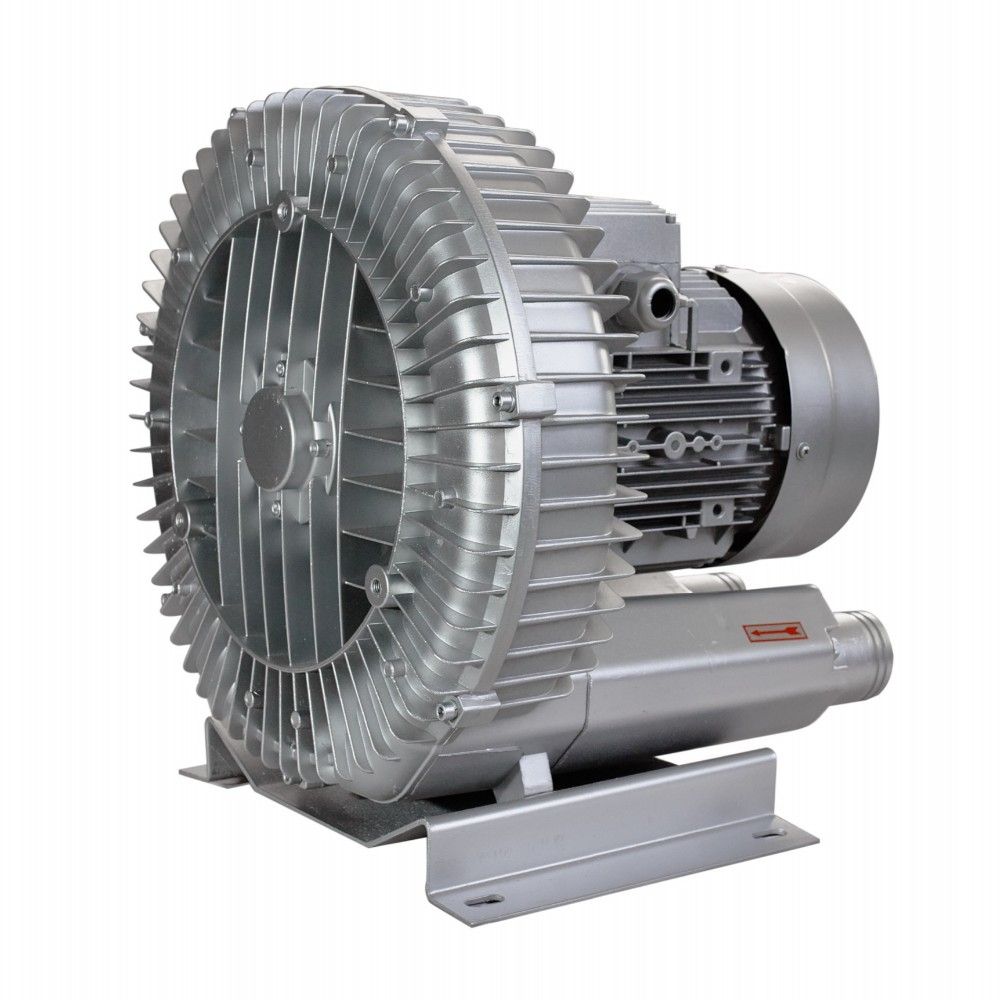

Ring Blower

Amit electricals manufacture, suppler and exporter of ring blower. Ring blower, also known as a regenerative blower, side channel blower, or vortex blower, is a type of high-volume, low-pressure blower. Here are some key specifications and features:

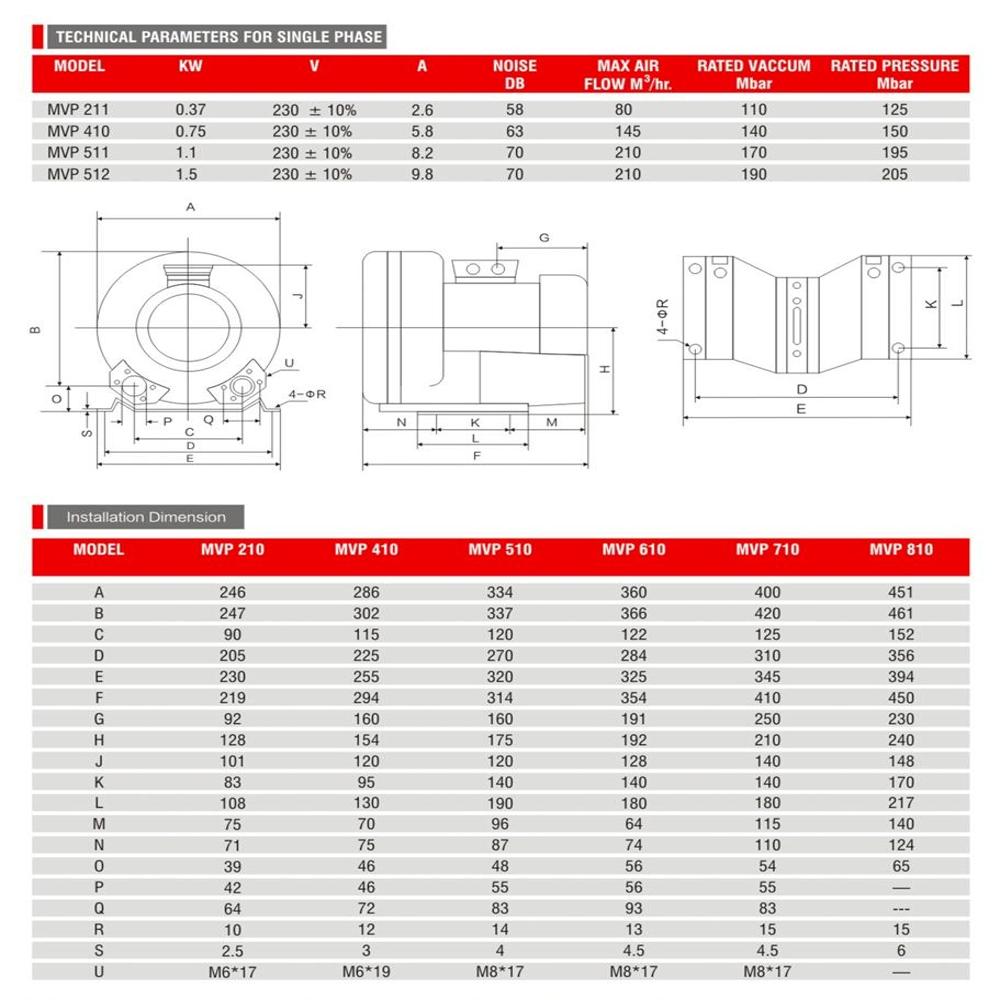

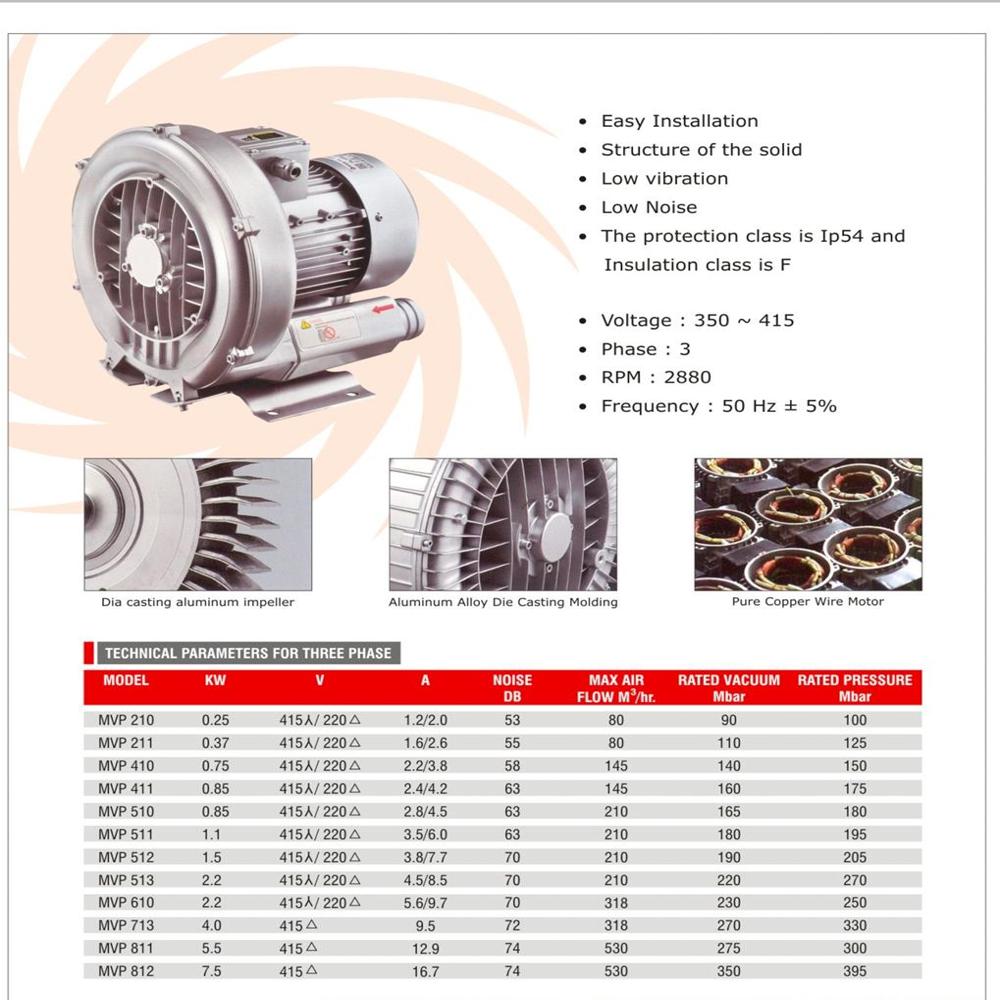

Specifications:

• Output Power: 0.18 kW to 7.5 kW
• Maximum Flow: 530 m/hr (1470 CFM)
• Maximum Pressure: 1050 mbar (422 in H2O)
• Maximum Vacuum: 730 mbar (293 in H2O)
• Stages: Single, Double, Multi
• Electrical: 220 VAC, 50 Hz, Single Phase / 440 VAC, 50 Hz, Three Phase

Features:

• Higher Pressure Ratio: Suitable for applications requiring higher pressure
• Low Noise Level: Typically around 65 dBa, max 85 dBa
• Oil-Free Air: Ensures clean operation
• Continuous Duty Rated: Designed for long-term operation
• Overload Protection: 140% overload protection
• Compact Design: Easy installation in vertical or horizontal positions
• Minimal Maintenance: Simple and durable construction

Applications:

• Pneumatic Conveying: Moving materials through pipes using air pressure
• Aeration: Providing oxygen in various industrial processes
• Vacuum Lifting: Lifting objects using vacuum pressure
• Cooling: Cooling systems in industrial settings
• Dust Cleaning: Removing dust from surfaces
