Cooling Tower Motor 10 HP 7.5 KW 600 RPM

Send Inquiry

Request To Call Back

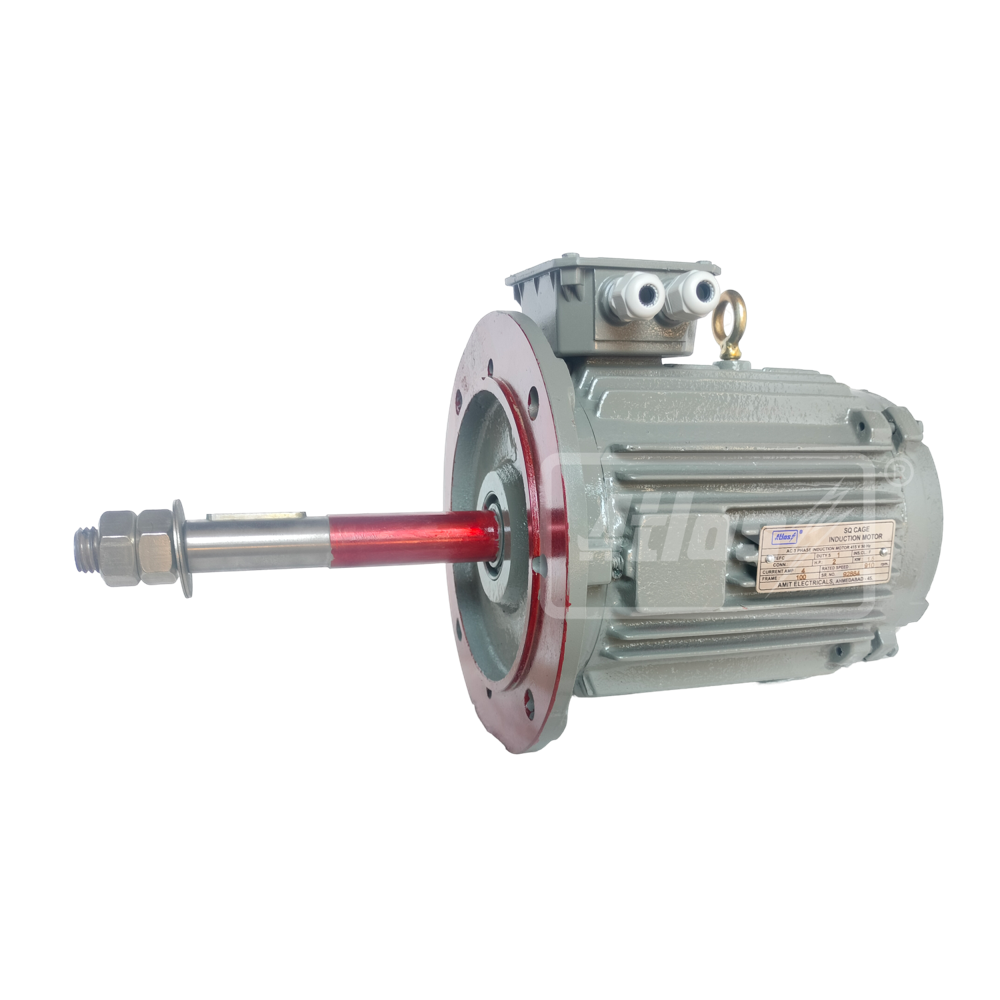

Cooling Tower Motor 10 HP 7.5 KW 600 RPM

Name: Cooling Tower Motor 10 HP 7.5 KW 600 RPM
Brand: AMIT ELECTRICALS
Price: 77000.0 INR
Availability: InStock

Price 77000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 10 HP 7.5 KW 600 RPM Specification

Current Type
AC

Ambient Temperature
-15C to +45C

Rated Voltage
415V

Starting Type
Direct On Line (DOL)

Torque
High Starting Torque

Rated Frequency
50 Hz

Features
Low Maintenance, Robust Construction, High Durability

Standard
IS 325 / IEC 60034

Poles Number
Other

Voltage
415V

Power Rating
7.5 KW

Motor Type
Squirrel Cage Induction Motor

Efficacy
High Efficiency IE2

Noise Level
Less than 75 dB

Sealed Type
Totally Enclosed

Bearing Type
Deep Groove Ball Bearings

Horse Power
10 HP

Cooling Method
Fan Cooled

Product Type
AC Induction Motor

Output Power
7.5 KW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
600 RPM

Power
10 HP

Color
Grey

Dimension (L*W*H)
(Dimensions as per IEC standard for 10 HP motor)

Weight
Approx. 80 kg

Shaft Diameter
38 mm

Mounting Type
Flange Mounted (B5)

Altitude
Up to 1000 m above sea level

Rotor
Aluminium Die Cast

Service Factor
1.15

Stator Winding
Copper

Lubrication
Grease Lubricated Bearings

Application
Industrial Drives, Pumps, Compressors, Conveyors

Frame Size
160M

Direction of Rotation
Both Directions Possible

Thermal Protection
Optional On Request

Insulation Class
Class F

Cooling Tower Motor 10 HP 7.5 KW 600 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 10 HP 7.5 KW 600 RPM

Experience top-notch performance with the Atlas Cooling Tower Motor, 10 HP (7.5 KW), 600 RPM, crafted by AMIT ELECTRICALS. This ace-quality motor is designed for robust industrial drives, pumps, compressors, conveyors, and cooling tower fan applications. Its fresh, high-efficiency IE2 technology delivers unparalleled performance at an unbeatable price. Featuring a durable cast iron frame, copper stator winding, and double shielded bearings, this low-maintenance, totally enclosed (IP55) motor operates reliably in demanding, high-humidity environments. Industrial users worldwide demand its exceptional longevity, corrosion-resistant shaft, and smooth operation. Distribute only the best-choose Atlas.

Specialized Usage and Extra Features for Industrial Demands

The 10 HP 7.5 KW 600 RPM Atlas Cooling Tower Motor is specifically tailored for industrial applications including HVAC, textile, and plastic machinery cooling towers. This motor excels in high humidity environments and operates efficiently in both general and specialized settings. Its extra features such as totally enclosed surface cooling, stainless steel extended shaft, corrosion protection, and class F insulation guarantee high durability and a long service life, ensuring continuous operation and low maintenance needs.

Payment Terms, Certifications, and Fast Dispatch

Valuation of the Atlas Cooling Tower Motor is set competitively to deliver exceptional value. Payment terms are flexible, customizable upon inquiry. Each motor is certified to IS 325 and IEC 60034, guaranteeing trustworthy quality. Expect your order to be dispatched promptly-standard delivery usually occurs within days, depending on the location and mode of shipment. Shipping charges are calculated transparently, ensuring a seamless procurement process for clients globally.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 10 HP 7.5 KW 600 RPM:

Q: How does the Atlas Cooling Tower Motor benefit operations in high humidity areas?

A: The Atlas Cooling Tower Motor is engineered to operate efficiently in high humidity environments, featuring IP55 protection and double shielded bearings, which safeguard against moisture ingress and ensure extended operational life.

Q: What applications are ideal for the 10 HP 7.5 KW 600 RPM motor?

A: This motor is perfect for driving cooling tower fans, pumps, compressors, conveyors, and other industrial machinery, especially in environments like HVAC, textile, and plastic processing where reliability and durability are crucial.

Q: When can I expect my ordered motor to be dispatched?

A: Orders are typically processed and dispatched within a few business days from the time of order confirmation, with delivery times varying based on shipment destination and mode.

Q: Where can the Atlas Cooling Tower Motor be installed?

A: With its flange (B5) mounting and robust construction, the motor can be installed in cooling towers, industrial plants, and other locations requiring continuous heavy-duty performance.

Q: What certifications ensure the quality of this motor?

A: The Atlas Cooling Tower Motor complies with IS 325 and IEC 60034 standards, assuring customers of high safety, efficiency, and reliability standards.

Q: How is the motor protected from corrosion and harsh conditions?

A: The shaft is made from corrosion-resistant stainless steel, and the semi-glossy synthetic enamel paint further protects the motor body in corrosive or humid settings.
