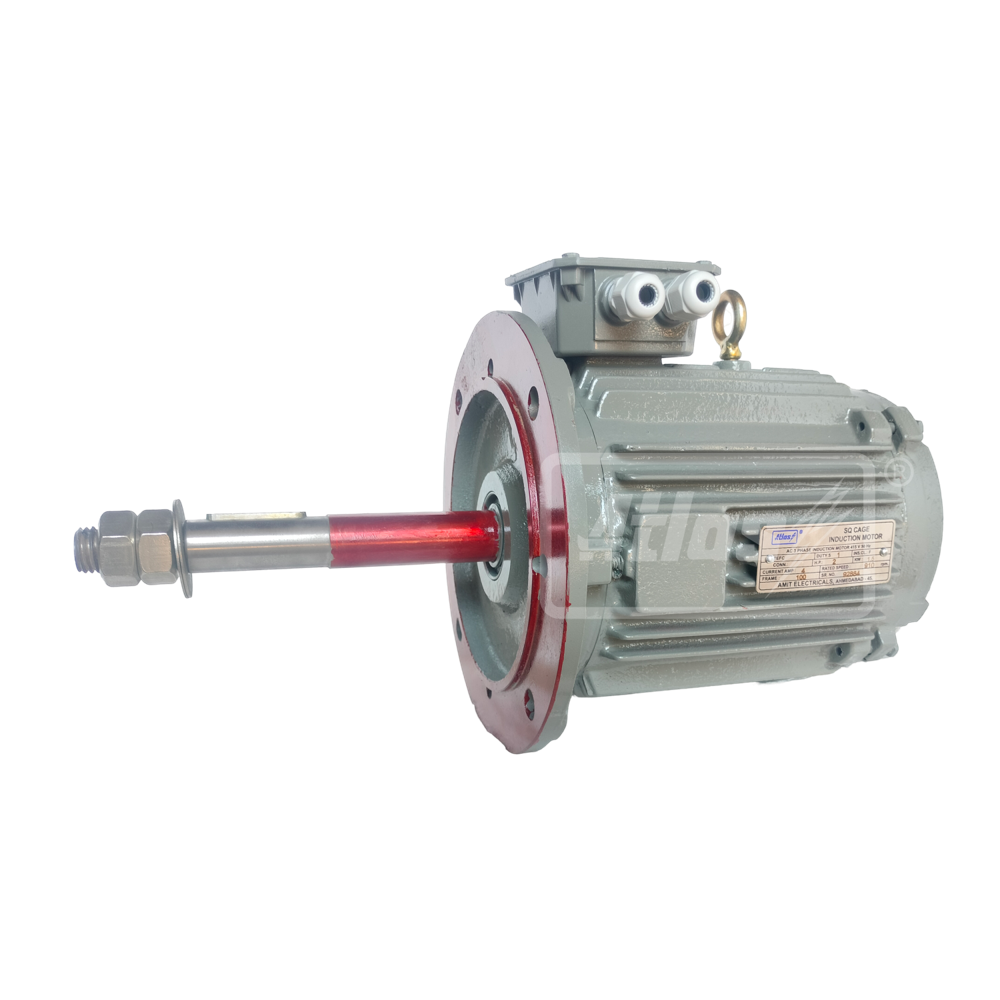

Cooling Tower Motor 15 HP 11 KW 1000 RPM

Name: Cooling Tower Motor 15 HP 11 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 52200.0 INR
Availability: InStock

Price 52200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 15 HP 11 KW 1000 RPM Specification

Voltage
415 V

Power Rating
11 kW

Efficacy
High Efficiency

Sealed Type
Drip Proof / Sealed

Rated Frequency
50 Hz

Standard
IS 325 / IEC 60034

Features
Low Noise, Vibration Free, Rugged Construction

Rated Voltage
415 V

Motor Type
Squirrel Cage Induction Motor

Bearing Type
Deep Groove Ball Bearing

Ambient Temperature
Up to 50 C

Poles Number
Other

Cooling Method
IC411 (Self-cooled)

Torque
106 Nm (Approximate)

Starting Type
DOL (Direct-On-Line)

Noise Level
<75 dB

Current Type
AC

Horse Power
15 HP

Product Type
Three Phase Induction Motor

Output Power
15 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1000 RPM

Power
11 kW

Color
Grey

Dimension (L*W*H)
Standard Frame Size 160L

Weight
Approx. 100 kg

Shaft Diameter
38 mm (Standard for 160L Frame)

Mounting Type
Foot / Flange Mounted

Service Factor
1.0

Cable Entry
Double entry

Insulation Class
F Class

Altitude Limit
Up to 1000 m above sea level

Frame Size
160L

Vibration Level
Within permissible limits as per IS standards

Duty Type
S1 (Continuous) Duty

Shaft Length
80 mm

Construction Material
Cast Iron Body

Thermal Protection
Available on request

Application
Industrial Machines, Pumps, Compressors, Fans

Lubrication
Grease Lubricated Bearings

Balancing
Dynamically Balanced Rotor

Cooling Tower Motor 15 HP 11 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Week

About Cooling Tower Motor 15 HP 11 KW 1000 RPM

Unlock the power of the Atlas Cooling Tower Motor, meticulously engineered by AMIT ELECTRICALS for industrial invincibility. Spotlighting a robust cast iron construction and a champion-worthy IP55 protection, this 15 HP, 11 kW, 1000 RPM marvel delivers continuous duty performance (S1) with Class F insulation. Its dynamically balanced rotor guarantees vibration-free operation, while a sealed, drip-proof enclosure ensures long-lasting reliability. Grab peak efficiency with minimal maintenance and low noise. Decorated for excellence, it's the top choice for cooling tower fan systems in demanding environments.

Ideal Applications and Usage Versatility

The 15 HP 11 KW 1000 RPM Atlas Cooling Tower Motor is used by major industrial sectors for reliable, continuous performance. Commonly used in applications such as HVAC cooling towers, textile and plastic machinery, and compressor units, it is deployed as the driving force behind industrial fans and pumps. Known for its efficiency and invincible operation, it is widely chosen by manufacturers, suppliers, and large-scale industries that require round-the-clock, uninterrupted duty.

Efficient Delivery and Global Reach

Enjoy premium delivery options with the Atlas Cooling Tower Motor, available for swift global dispatch. Our supply ability ensures consistent availability for bulk orders, supported by express shipping and reliable freight services. Main export markets for this decorated product include Asia, Africa, and Europe. From prompt handling to secure packaging, every delivery reflects our commitment to excellence, ensuring your invincible motor arrives on schedule and in pristine condition, wherever your operations are spotlighted.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 15 HP 11 KW 1000 RPM:

Q: How does the 15 HP 11 KW 1000 RPM Cooling Tower Motor ensure longevity in harsh environments?

A: The motor's cast iron frame, IP55 protection, double shielded bearings, and sealed enclosure defend against humidity and dust, while stainless steel shaft components ensure corrosion resistance, supporting reliable operation in challenging industrial settings.

Q: What are the typical usages of this motor in industrial applications?

A: This motor is specifically designed for cooling tower fan operations and is commonly used in industrial HVAC systems, textiles, plastics machinery, and as a power source for pumps, compressors, and large fans requiring continuous duty.

Q: Where is the Atlas Cooling Tower Motor primarily exported?

A: The Atlas Cooling Tower Motor is exported to a wide range of markets, with strong presence in Asia, Africa, Europe, and other regions requiring high-efficiency, durable industrial motors.

Q: What is the delivery process for this motor if ordered in bulk?

A: Upon order confirmation, the product is securely packed and shipped via trusted freight or express courier services. Standard handling times are minimized to expedite delivery, ensuring timely arrival for bulk and regular supply orders.

Q: What is the benefit of choosing a motor with a dynamically balanced rotor and low vibration characteristics?

A: A dynamically balanced rotor ensures smoother operation, reducing wear and tear on machinery, minimizing vibration-induced damage, and enhancing the lifespan and efficiency of the entire system.
