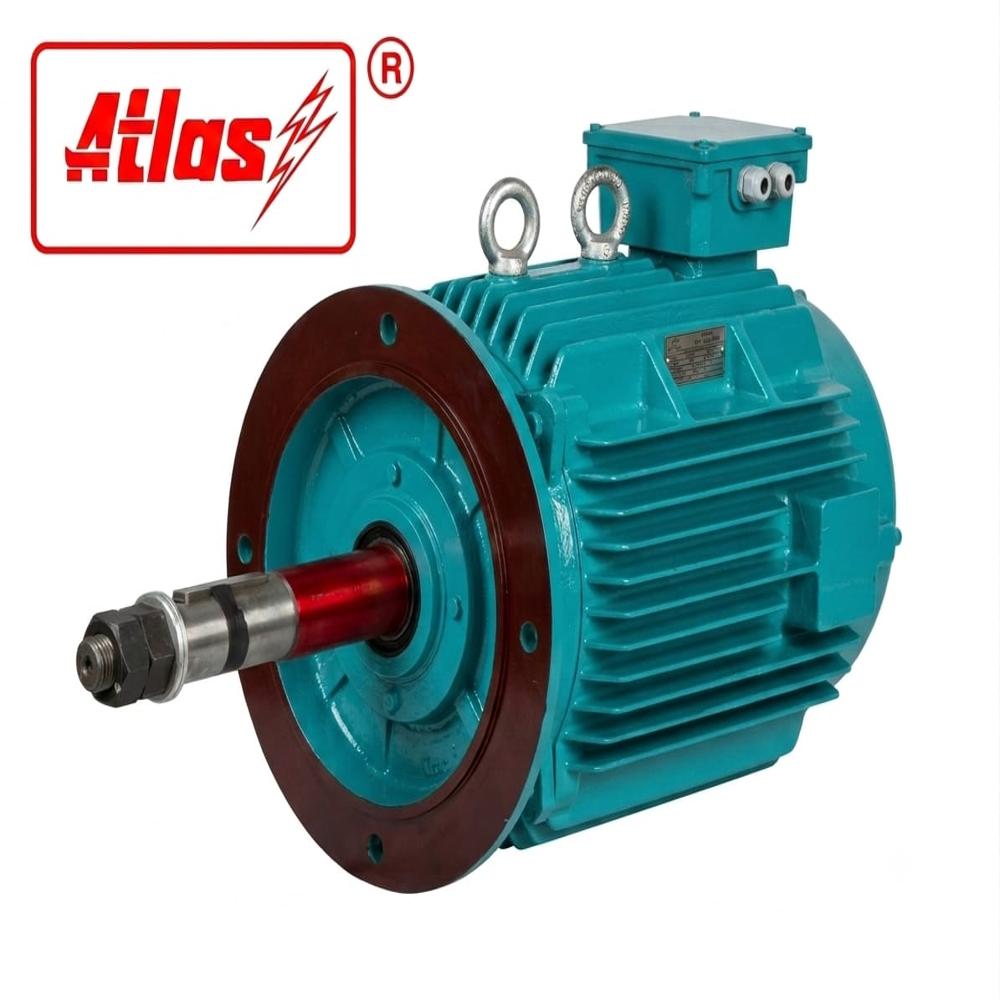

Cooling Tower Motor 2.0 HP 1.5 KW 1000 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 2.0 HP 1.5 KW 1000 RPM

Name: Cooling Tower Motor 2.0 HP 1.5 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 12000.0 INR
Availability: InStock

Price 12000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 2.0 HP 1.5 KW 1000 RPM Specification

Starting Type
Direct On Line (DOL)

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Voltage
415 V

Torque
14.3 Nm (at full load)

Cooling Method
Fan Cooled

Efficacy
High Efficiency

Bearing Type
Deep Groove Ball Bearing

Power Rating
1.5 kW

Noise Level
<70 dB

Current Type
AC

Rated Voltage
415 V

Ambient Temperature
-15C to +40C

Rated Frequency
50 Hz

Horse Power
2.0 HP

Standard
IEC 60034-1

Features
Robust Design, Low Vibration, Energy Efficient

Poles Number
Other

Motor Type
Squirrel Cage Induction Motor

Product Type
Electric Motor

Output Power
1.5 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55 Protection

Phase
Three Phase

Speed
1000 RPM

Power
2.0 HP

Color
Grey

Dimension (L*W*H)
Customized as per model

Weight
Approx. 35-45 kg

Shaft Diameter
28 mm

Mounting Type
Foot / Flange Mounting

IP Rating
IP55

Applicable Standards
IS 325, IEC 60034

Service Factor
1.15

Lubrication
Pre-lubricated Bearings

Insulation Class
F Class

Frame Material
Cast Iron

Paint Finish
Corrosion Resistant Paint

Rotor Type
Aluminium/Copper Bar

Rated Duty
S1 (Continuous Duty)

Connection Type
Star/Delta

Ambient Humidity
90% RH (non-condensing)

Altitude Limit
1000m above sea level

Thermal Protection
Thermistor (optional)

Cooling Tower Motor 2.0 HP 1.5 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Week

About Cooling Tower Motor 2.0 HP 1.5 KW 1000 RPM

Discover the fresh, imposing performance of the Atlas Cooling Tower Motor from Amit Electricals, now available at a reduced price. This ace 2.0 HP, 1.5 kW, 1000 RPM motor boasts unmatchable efficiency and robust construction with corrosion-resistant paint and a cast iron frame. Engineered for relentless, continuous duty under high humidity (up to 90% RH), it excels in industrial HVAC and textile applications. Standard IP55 protection, energy-efficient operation, and smooth, imposing design make this a standout, cost-effective powerhouse.

Versatile Industrial Usage & Application

The 2.0 HP 1.5 KW 1000 RPM Cooling Tower Motor is specifically crafted for round-the-clock operation in high humidity environments. Its ace performance is well-suited for cooling tower fan drives in industries such as HVAC, textiles, and plastics. The motor is simple to use in star/delta connections and direct-on-line starting. Designed for both indoor and sheltered outdoor applications, it provides dependable service and impressive torque, making it an unmatchable solution for demanding environments.

Export Market Focus & Fast Shipping Details

Amit Electricals, renowned exporter and manufacturer, ensures quick dispatch and safe packaging of the Atlas 2.0 HP Motor. Main export markets include Asia, the Middle East, and Africa, ensuring broad availability. Shipments are handled through major FOB ports with strong logistics networks, and each motor is securely packed to avoid transit damage. With minimal charge, prompt documentation and fast dispatching, customers worldwide experience hassle-free delivery of these ace industrial motors.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 2.0 HP 1.5 KW 1000 RPM:

Q: How is the Atlas Cooling Tower Motor best utilized in industrial settings?

A: The Atlas Cooling Tower Motor is best utilized in high humidity and continuous operation environments such as cooling tower fan drives in HVAC systems, textile, and plastic machinery industries.

Q: What are the main areas and industries where this motor is applicable?

A: This motor is suitable for cooling towers, especially in factories, textile mills, plastics processing, and industrial HVAC systems requiring reliable, robust, and energy-efficient performance.

Q: When can I expect the motor to be dispatched after placing an order?

A: Orders are processed promptly and dispatched quickly, ensuring minimum wait times for clients, with shipping documentation managed efficiently for a smooth delivery experience.

Q: Where does Amit Electricals export the 2.0 HP Cooling Tower Motor?

A: Amit Electricals exports predominantly to markets in Asia, the Middle East, and Africa, with availability in several other global regions.

Q: What is the benefit of the corrosion-resistant paint and robust design?

A: The corrosion-resistant paint and cast iron frame provide long-lasting durability and protection against harsh industrial conditions, ensuring prolonged service life and reduced maintenance.

Q: How does the packaging process safeguard the motor during transit?

A: Each motor is securely packed using robust material to protect components from impact and moisture, minimizing risk of damage during shipping and handling.
