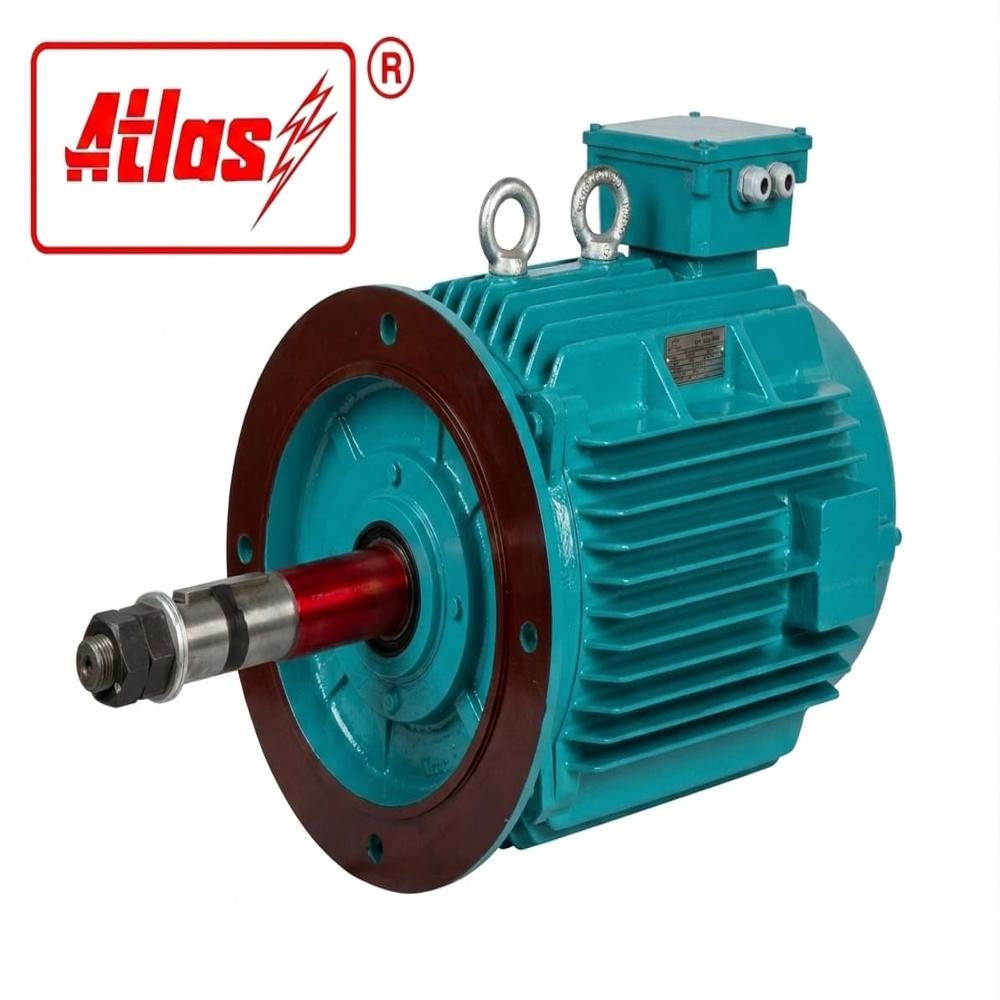

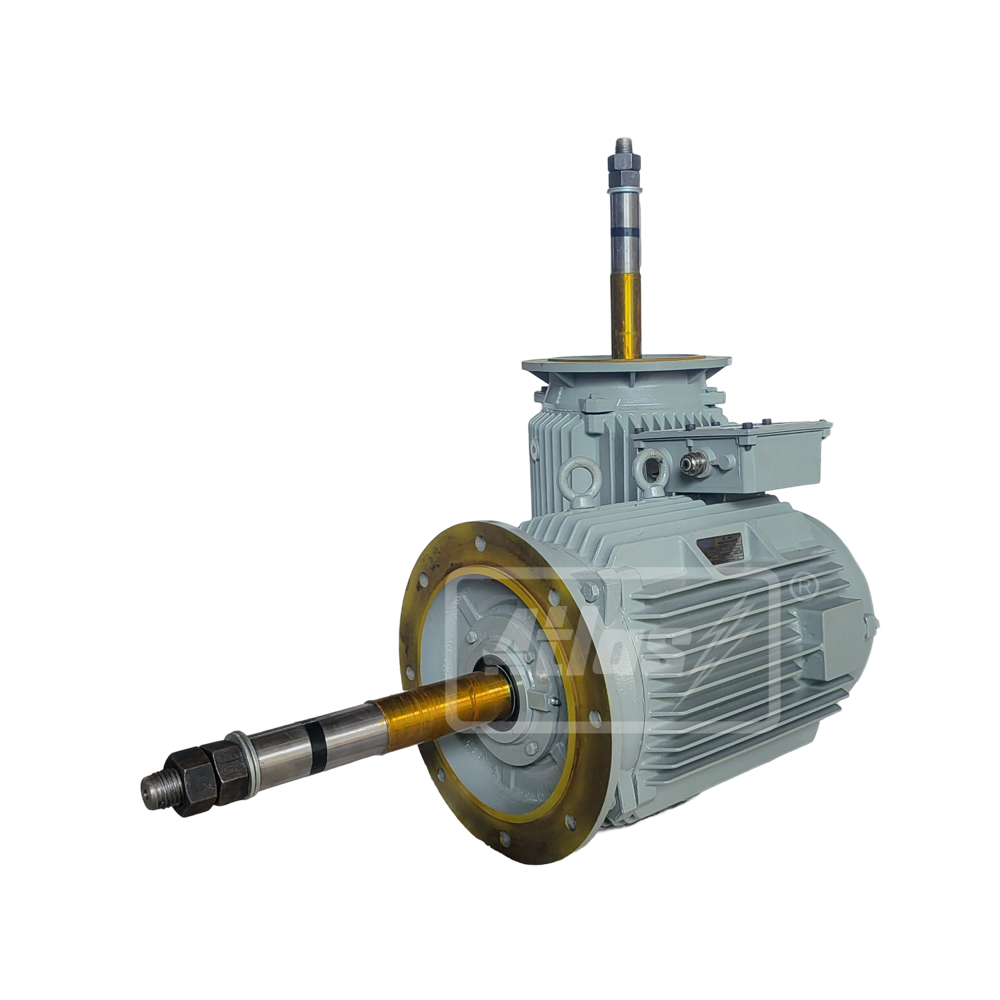

Cooling Tower Motor 20 HP 15 KW 600 RPM

Name: Cooling Tower Motor 20 HP 15 KW 600 RPM
Brand: AMIT ELECTRICALS
Price: 107800.0 INR
Availability: InStock

Price 107800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 20 HP 15 KW 600 RPM Specification

Starting Type
Direct On Line (DOL)

Motor Type
Squirrel Cage Induction Motor

Voltage
415 V

Power Rating
15 kW

Features
Robust Construction, Low Maintenance, High Starting Torque

Poles Number
Other

Ambient Temperature
-15C to +40C

Cooling Method
IC411 (Self Cooled)

Sealed Type
IP55

Standard
IEC/IS Standard

Efficacy
High Efficiency

Torque
239 Nm

Rated Voltage
415 V

Bearing Type
Deep Groove Ball Bearing

Rated Frequency
50 Hz

Noise Level
<65 dB

Current Type
AC

Horse Power
20 HP

Product Type
Electric Motor

Output Power
15 KW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
600 RPM

Power
20 HP

Color
Grey

Dimension (L*W*H)
Custom/As Per Design

Weight
Approx. 220 kg

Shaft Diameter
55 mm

Mounting Type
Flange or Foot Mounted

IP Rating
IP55

Phase Balance
Within 1%

Insulation Class
F Class

Lubrication
Pre-lubricated Bearing

Frame Size
200L

Application
Industrial Machinery, Pumps, Compressors

Duty Type
S1 (Continuous Duty)

Efficiency Class
IE2/IE3 (As required)

Altitude
Up to 1000m above sea level

Operation
Horizontal

Cooling Fan Material
Plastic/Aluminium

Cooling Tower Motor 20 HP 15 KW 600 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 20 HP 15 KW 600 RPM

Discover the elite ATLAS 20 HP (15 KW) 600 RPM Cooling Tower Motor by AMIT ELECTRICALS, a venerable solution tailored for industrial machinery, HVAC, pumps, and compressors. Engineered with praiseworthy precision, this robust motor features F-class insulation, S1 duty type, and an IP55 totally enclosed fan-cooled exterior, guaranteeing exceptional performance in high humidity environments. Its extraordinary efficiency class (IE2/IE3) meets international standards and ensures longevity, low maintenance, and high starting torque. This limited-time offer empowers clients to grab a powerful, reliable, and highly efficient option for demanding industrial needs.

Elite Performance & Praiseworthy Design: Features and Applications

Equipped with a durable cast iron frame and stainless-steel shaft, the 20 HP 15 KW 600 RPM motor excels in demanding applications such as cooling tower fans in industrial HVAC, textile, and plastic machinery. Its highly efficient, self-cooled (IC411) system and pre-lubricated deep groove ball bearings elevate performance and guarantee long service life. The motor boasts both flange (B5) and foot mounting, making it ideal for customization. High starting torque, continuous duty (S1), and robust enclosure set this motor apart.

Certifications, Packaging & Export: Seamless Order Completion

Certified to IEC/IS standards and featuring IP55 protection, the ATLAS motor represents venerable quality in the export market. Every unit is packaged with care, ensuring safe transit, and can be shipped internationally, meeting stringent export requirements. AMIT ELECTRICALS also provides samples upon request, supporting client confidence before order completion. The process is designed for efficiency, with prompt dispatch and full documentation for all shipped motors, fostering trust and reliability in global supply chains.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 20 HP 15 KW 600 RPM:

Q: How does the ATLAS 20 HP 15 KW 600 RPM motor handle high humidity environments?

A: The ATLAS motor is specifically designed for cooling tower operations in high-humidity areas. Features such as F-class insulation, a robust cast iron frame, double shielded pre-lubricated bearings, and IP55 protection ensure reliable operation and long life, even in challenging atmospheric conditions.

Q: What makes this motor an extraordinary choice for industrial applications?

A: This praiseworthy motor combines high efficiency (IE2/IE3), continuous S1 duty rating, robust construction, and low maintenance requirements. Its direct-on-line (DOL) starting and high starting torque make it suitable for demanding industrial processes with intensive operational needs.

Q: Where can the 20 HP 15 KW 600 RPM motor be used effectively?

A: The motor is ideally suited for cooling towers, pumps, compressors, and industrial HVAC systems, particularly in sectors like textiles and plastics where reliable, continuous performance in humid or corrosive environments is essential.

Q: What is the process for obtaining certification and export documentation?

A: Each motor is manufactured in compliance with IEC/IS standards and comes with full export documentation. Upon order completion, the motor is packaged securely and shipped with all relevant certifications to ensure smooth acceptance in export markets.

Q: When is sample availability offered for bulk orders?

A: Samples are available upon request to assist clients in evaluating quality and compatibility before placing a bulk order. This supports informed purchasing and builds confidence in the product's elite capabilities.
