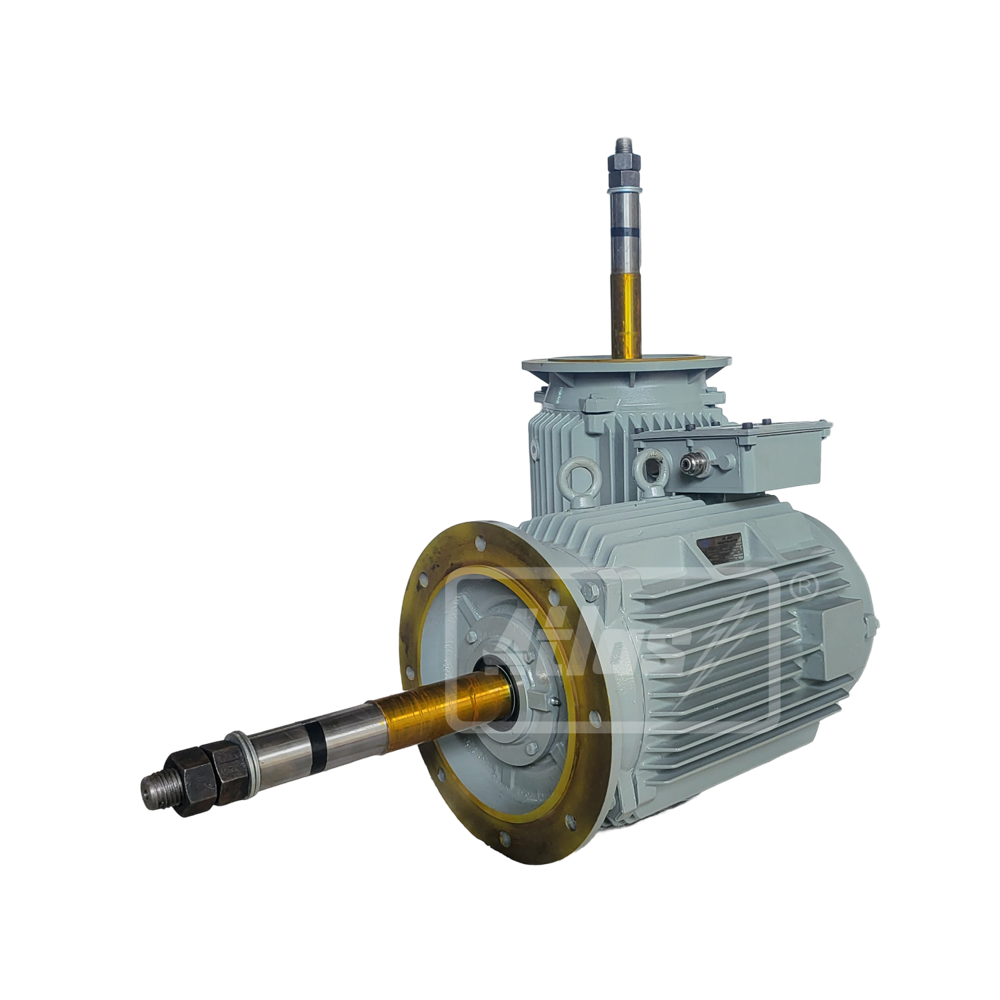

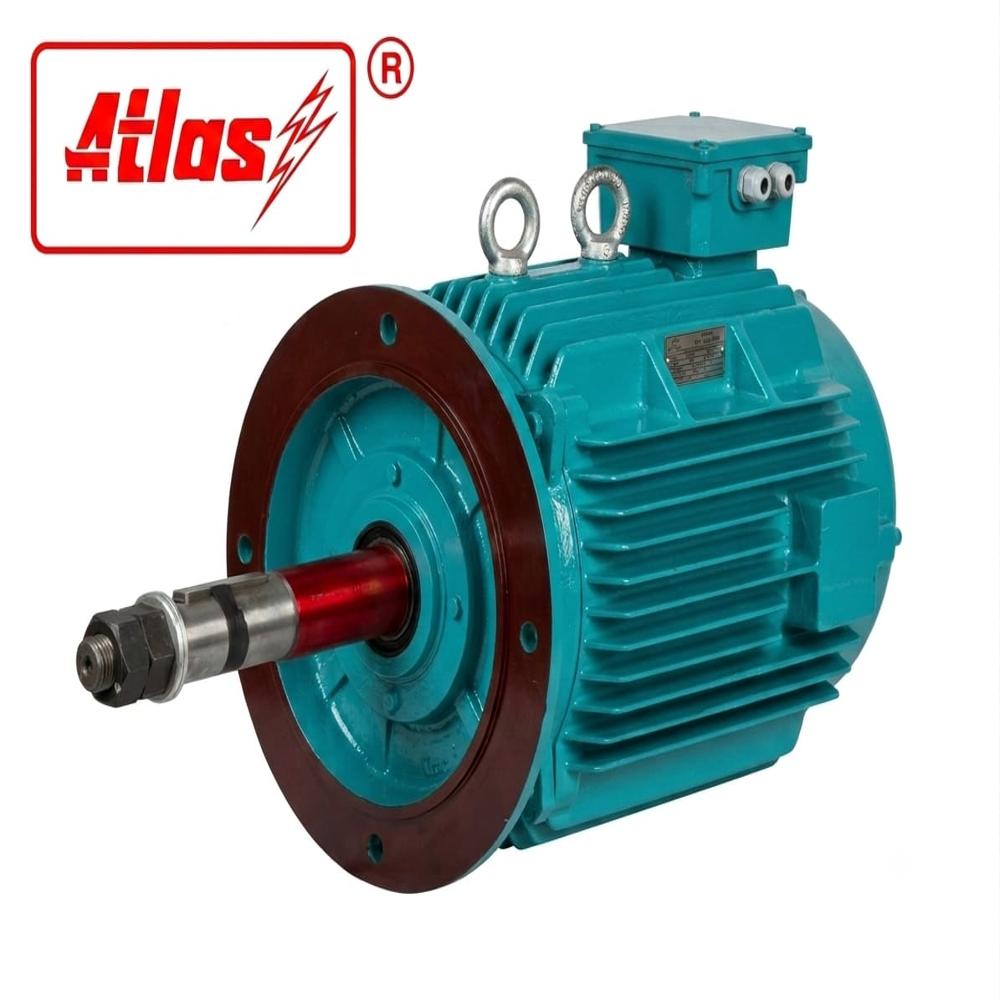

Cooling Tower Motor 20 HP 15 KW 750 RPM

Name: Cooling Tower Motor 20 HP 15 KW 750 RPM
Brand: AMIT ELECTRICALS
Price: 104150.0 INR
Availability: InStock

Price 104150.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 20 HP 15 KW 750 RPM Specification

Torque
191 Nm (approx.)

Horse Power
20 HP

Noise Level
<75 dB

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Current Type
AC

Voltage
415 V

Power Rating
15 kW

Features
Low Vibration, Sturdy Construction, Energy Efficient

Ambient Temperature
-15C to 50C

Rated Frequency
50 Hz

Cooling Method
Fan Cooled

Starting Type
DOL

Bearing Type
Ball Bearing

Efficacy
High Efficiency

Motor Type
Squirrel Cage Induction Motor

Rated Voltage
415 V

Poles Number
Other

Standard
IS 325 / IEC 60034

Product Type
Electric Motor

Output Power
15 kW

Frequency (MHz)
50 Hz (0.05 MHz)

Protect Feature
IP55

Phase
Three Phase

Speed
750 RPM

Power
20 HP

Color
Grey

Dimension (L*W*H)
620 mm x 340 mm x 420 mm (approx.)

Weight
180 kg (approx.)

Shaft Diameter
48 mm (approx.)

Mounting Type
Foot/Flange Mounted

IP Rating
IP55

Duty Cycle
S1 (Continuous Duty)

Housing Material
Cast Iron

Thermal Protection
Optional PTC/PT100

Insulation Class
F Class

Shaft Material
High-grade Carbon Steel

Service Factor
1.15

Efficiency at Full Load
>90%

Lubrication Type
Grease Lubricated

Bearings Make
SKF/FAG/Equivalent

Regreasing Feature
Available

Cooling Tower Motor 20 HP 15 KW 750 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 20 HP 15 KW 750 RPM

The Elite Atlas 20 HP 15 kW 750 RPM Cooling Tower Motor, manufactured by AMIT ELECTRICALS, is an in-demand option for industrial applications requiring exceptional reliability. Celebrated for its sterling efficiency (>90% at full load) and robust cast iron construction, this unassailable motor comes with Insulation Class F, continuous S1 duty cycle, and competitive pricing. With unyielding thermal protection, SKF/FAG bearings, and IP55 protection, this motor assures long operational life in harsh environments. Trusted for cooling tower fan operations in demanding sectors, it guarantees remarkable performance with low vibration and superior durability.

Elite Commercial Applications and Superior Features

The 20 HP 15 kW 750 RPM Cooling Tower Motor excels in commercial environments such as industrial HVAC systems, textile and plastic machinery. Its highly efficient, low-vibration operation, and robust cast iron housing make it ideal for continuous duty in high-humidity areas. With precision design, corrosion-resistant shaft, and seamless compatibility for fan fitting, this celebrated equipment guarantees enduring performance. Its totally enclosed, fan-cooled structure further ensures a reliable service life on a diverse array of application surfaces.

Packaging, Supply, and Certifications for Your Peace of Mind

Each motor is supplied with precision packaging to prevent transit damage and ensure pristine condition on delivery. Upon receipt of a confirmed purchase order, our streamlined supply process ensures timely distribution. Payment terms are flexible, tailored to meet commercial requirements. This product is certified under IS 325 and IEC 60034 standards, reflecting sterling quality assurance. Packaging includes clear labeling, components protection, and ready-to-install instructions for seamless integration into your industrial setup.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 20 HP 15 KW 750 RPM:

Q: How does the 20 HP 15 KW 750 RPM Cooling Tower Motor benefit industrial cooling applications?

A: The motor provides unassailable energy efficiency, reliable performance in high-humidity zones, and continuous operation with Insulation Class F, making it ideal for demanding cooling tower fan applications in industries like HVAC, textiles, and plastics.

Q: What materials and features enhance the durability of this cooling tower motor?

A: The housing uses robust cast iron, and the shaft is made of high-grade carbon steel for enduring strength. With double-shielded SKF/FAG bearings, grease lubrication, and corrosion protection, the motor is designed for long-term, uninterrupted use.

Q: Where is this motor most commonly used?

A: This motor is widely installed in industrial establishments requiring high-performance cooling such as large HVAC plants, textile machinery setups, and plastic manufacturing facilities, owing to its remarkable ability to operate in harsh, humid environments.

Q: What is the packaging process and how is the product delivered?

A: Each motor is carefully packaged in protective materials and labeled for safe shipping. Delivery is initiated upon confirmation of your purchase order through reliable supply chains to ensure timely and secure arrival.

Q: What certifications and standards does the motor meet?

A: The motor complies with renowned IS 325 and IEC 60034 standards, attesting to its celebrated quality, safety, and energy efficiency. Customers receive full documentation with every delivery for their peace of mind.
