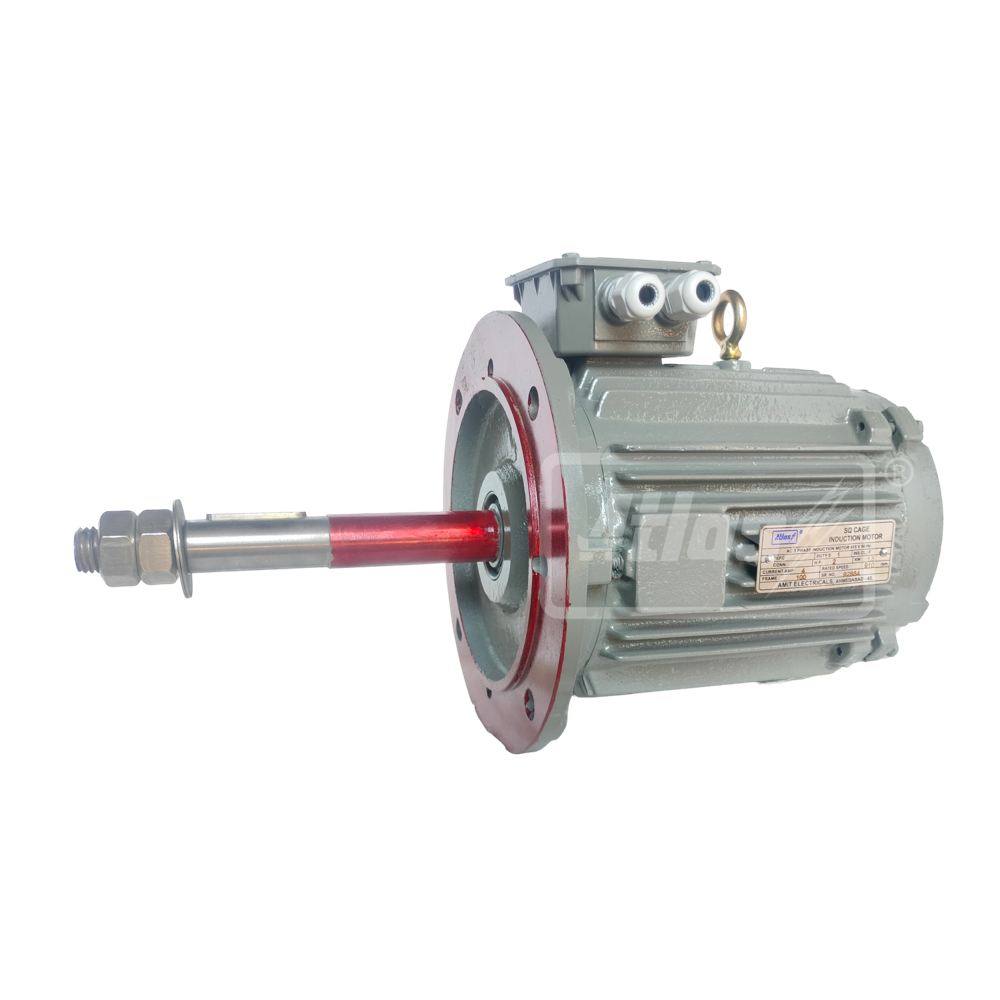

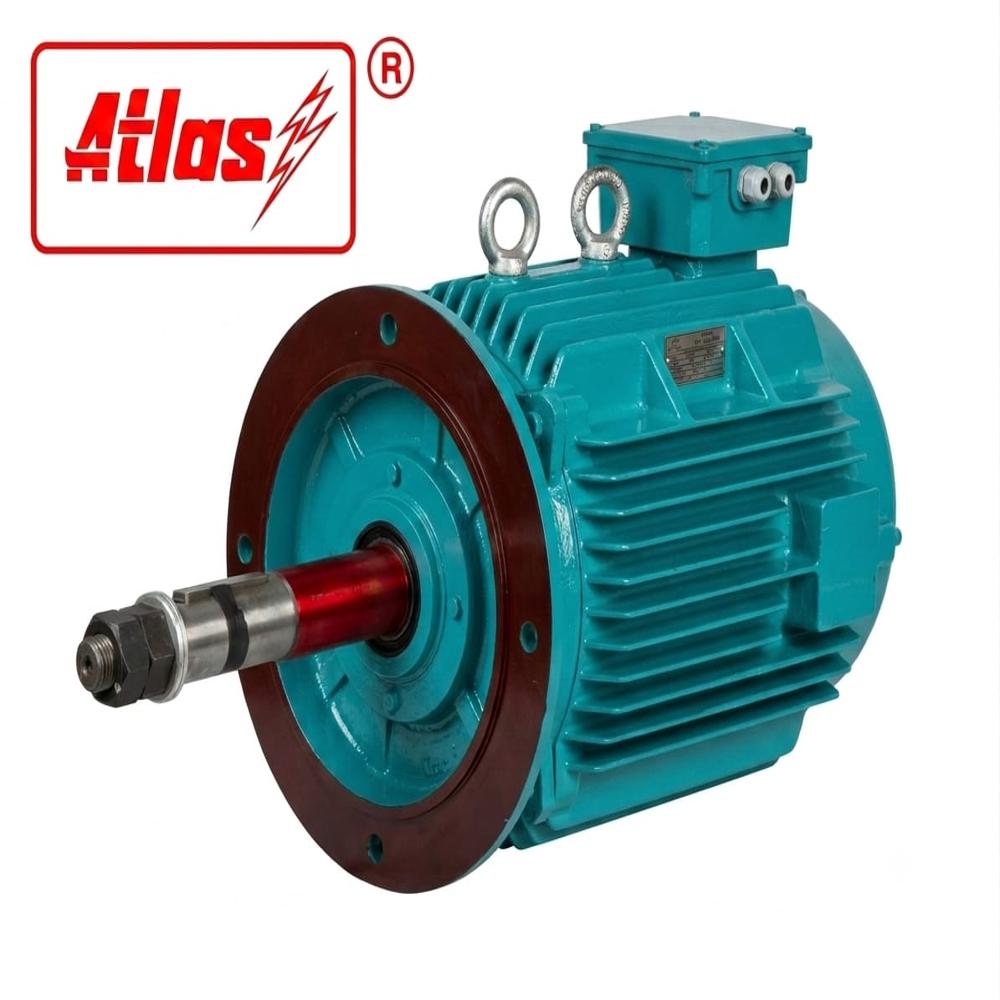

Cooling Tower Motor 3.0 HP 2.2 KW 1000 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 3.0 HP 2.2 KW 1000 RPM

Name: Cooling Tower Motor 3.0 HP 2.2 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 15900.0 INR
Availability: InStock

Price 15900.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 3.0 HP 2.2 KW 1000 RPM Specification

Rated Voltage
415 V

Bearing Type
Deep Groove Ball Bearing

Starting Type
Direct On Line (DOL)

Power Rating
2.2 KW

Cooling Method
Fan Cooled

Poles Number
Other

Horse Power
3.0 HP

Standard
IS 325/IEC Standard

Voltage
415 V

Features
Durable Construction, Heavy Duty Shaft, Copper Winding

Sealed Type
TEFC

Ambient Temperature
-15C to +40C

Noise Level
<70 dB

Efficacy
High Efficiency

Rated Frequency
50 Hz

Current Type
AC

Torque
Standard as per 3.0 HP, 1000 RPM

Motor Type
Induction Motor

Product Type
Three Phase Induction Motor

Output Power
2.2 KW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1000 RPM

Power
3.0 HP

Color
Grey

Dimension (L*W*H)
Standard As per Manufacturer

Weight
Approx. 35 kg

Shaft Diameter
Standard as per 3.0 HP motor

Mounting Type
Foot / Flange Mounting

Application
Industrial, Pumps, Compressors, Blowers

Thermal Protection
Optional

Enclosure Type
TEFC (Totally Enclosed Fan Cooled)

Service Factor
1.15

Lubrication
Grease Lubricated Bearings

Frame Size
112 M/L

Operating Position
Any

Insulation Class
Class F

Vibration Level
Within Permissible Limit

Cooling Tower Motor 3.0 HP 2.2 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 3.0 HP 2.2 KW 1000 RPM

Experience exceptional performance and peerless reliability with the Atlas 3.0 HP 2.2 KW Cooling Tower Motor from AMIT ELECTRICALS. Engineered for high-efficiency usage, this induction motor is the best choice for industrial applications, pumps, compressors, blowers, and especially cooling tower operations. Durable construction, copper winding, and a heavy-duty shaft ensure longevity and optimal operation in challenging environments. Benefit from our exclusive Price Cut-order today to secure outstanding savings on a motor built to the highest IS 325/IEC standards, offering both robust capability and cost-effectiveness.

Optimal Performance for Industrial Applications

The 3.0 HP 2.2 KW 1000 RPM Cooling Tower Motor is designed for versatile usage across industrial sectors. Suited for continuous and demanding applications, this peerless motor excels in environments such as HVAC cooling towers, textile machinery, plastic machinery, and more. Its compatibility with a broad range of operating surfaces makes it a reliable solution for professionals seeking powerful, long-lasting equipment that delivers consistently high efficiency with every use.

Reliable Supply & Global Dispatching

With exceptional supply ability, the Atlas Cooling Tower Motor is ready for valuation and prompt dispatching worldwide. Products are shipped efficiently to main export markets including Asia, Africa, and the Middle East. Our streamlined operations ensure reliable, quick delivery times so you can count on your equipment being shipped securely and arriving when you need it. Trust AMIT ELECTRICALS for a seamless experience from order to installation.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 3.0 HP 2.2 KW 1000 RPM:

Q: How is the 3.0 HP 2.2 KW 1000 RPM motor typically used?

A: This motor is primarily designed for cooling tower fan operations and is ideal for various industrial uses, including pumps, compressors, blowers, HVAC systems, and textile machinery.

Q: What surfaces and environments are suitable for installing this motor?

A: The motor is robustly built with a cast iron frame and IP55 protection, making it suitable for installation in high-humidity areas and challenging industrial environments, including cooling towers and production facilities.

Q: Where does AMIT ELECTRICALS export the Atlas Cooling Tower Motor?

A: AMIT ELECTRICALS supplies and ships this motor to main export markets such as Asia, Africa, and the Middle East, ensuring global industry coverage and timely delivery.

Q: What are the benefits of choosing a TEFC (Totally Enclosed Fan Cooled) enclosure?

A: A TEFC enclosure offers enhanced protection against dust, moisture, and contaminants, which leads to superior durability and longevity, especially in harsh industrial or outdoor settings.

Q: What is the process for ordering and receiving the motor?

A: Simply place your order with AMIT ELECTRICALS to take advantage of our price cut. Products are valued, dispatched, and shipped promptly to your location, ensuring you get the motor precisely when needed.

Q: When does the motor offer the highest efficiency?

A: The motor is rated for continuous S1 duty with Class F insulation, delivering best-in-class efficiency and consistent performance when operated for extended periods in demanding applications.
