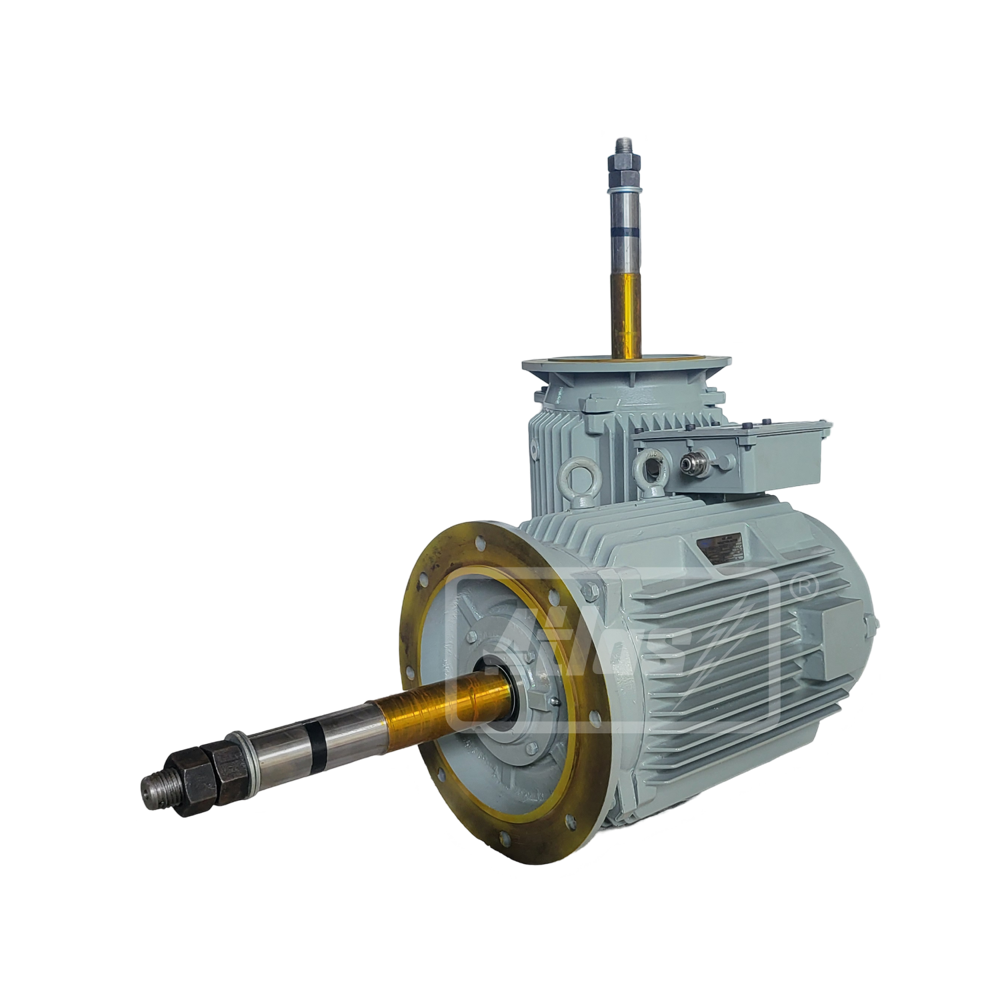

Cooling Tower Motor 5.0 HP 3.7 KW 500 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 5.0 HP 3.7 KW 500 RPM

Name: Cooling Tower Motor 5.0 HP 3.7 KW 500 RPM
Brand: AMIT ELECTRICALS
Price: 54800.0 INR
Availability: InStock

Price 54800.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 5.0 HP 3.7 KW 500 RPM Specification

Noise Level
<75 dB(A)

Efficacy
IE2

Ambient Temperature
-15C to +40C

Motor Type
Squirrel Cage Induction Motor

Features
Robust design, Long life, Low maintenance

Standard
IS:325, IEC:60034

Voltage
415 V

Current Type
AC

Cooling Method
IC411

Rated Frequency
50 Hz

Poles Number
Other

Power Rating
3.7 kW

Torque
70.72 Nm

Rated Voltage
415 V

Horse Power
5.0 HP

Bearing Type
Deep Groove Ball Bearing

Starting Type
DOL

Sealed Type
IP55

Product Type
Electric Motor

Output Power
5.0 HP / 3.7 KW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
500 RPM

Power
3.7 kW

Color
Grey

Dimension (L*W*H)
Custom/Standard On Request

Weight
Approx. 75 kg

Shaft Diameter
Tapered/Custom as per standard

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Efficiency at Full Load
~85%

Frame Size
132M

Duty Cycle
S1 (Continuous)

Insulation Class
F Class

Operating Position
Horizontal/Vertical available

Cooling Tower Motor 5.0 HP 3.7 KW 500 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 5.0 HP 3.7 KW 500 RPM

Explore the sublime sophistication of the Atlas Cooling Tower Motor by AMIT ELECTRICALS, designed to deliver lavish performance for demanding applications. Utilise this exclusive offer to experience a robust 5.0 HP, 3.7 KW motor operating at a gorgeous 500 RPM, with frame 132M and Insulation Class F. Its IP55 rated, totally enclosed fan-cooled design ensures resilience even in high humidity. Suitable for industrial HVAC, textile, and plastics, this deal combines efficiency (85%), reliability, and enduring quality for continuous heavy-duty cycles. Don't miss the chance to own a precision-crafted powerhouse today!

The Ideal Choice: Features & Advantages of 5.0 HP 3.7 KW 500 RPM Motor

This robust motor is especially suitable for use in cooling tower fan operations in industrial HVAC, textile, and plastic machinery where reliability is paramount. Among its standout features are IE2 efficacy, high torque of 70.72 Nm, and a lavish, dust-tight IP55 protection for use in humid environments. The advantage lies in its long life, low maintenance, and flexible horizontal/vertical mounting-all underpinned by a durable cast iron frame and corrosion-protected shaft, making it a gorgeous investment for continuous operations.

Delivery, Payment, and Supply Terms for the 5.0 HP 3.7 KW 500 RPM Motor

Enjoy seamless transactions with flexible payment terms and secure shipping options. Delivery is managed efficiently via your preferred FOB Port, with strong packing to safeguard your valuable shipment. Our reliable supply ability ensures prompt dispatch and sustained availability even for large orders. For a stress-free procurement experience, every motor is carefully checked and shipped in compliance with international export standards, ensuring safe delivery to your specified destination. Utilise this offer for hassle-free acquisition and quick deployment.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 5.0 HP 3.7 KW 500 RPM:

Q: How is the 5.0 HP 3.7 KW Cooling Tower Motor beneficial for industrial applications?

A: The motor delivers high efficiency, robust performance, and reliable operation in demanding industrial environments such as HVAC, textile, and plastics. Its durability and IP55 protection make it ideal for continuous heavy-duty cycles and high-humidity conditions.

Q: What mounting and operating positions are available for this motor?

A: This motor offers both horizontal and vertical mounting options, and is available in foot or flange configurations (including B5), providing flexibility to suit various installation requirements.

Q: Where can the Atlas Cooling Tower Motor be used most effectively?

A: It is specifically designed for cooling tower fan operations, particularly in high-humidity areas commonly found in industries such as industrial HVAC systems, textiles, and plastics manufacturing.

Q: What are the key features that distinguish this motor from conventional options?

A: Key features include IE2 efficiency, a sealed IP55 enclosure, corrosion-resistant stainless steel shaft, double-shielded bearings, and a robust cast iron frame-ensuring smooth, quiet, and long-lasting operation.

Q: How are payment and delivery managed for international shipments?

A: Payment flexibility with multiple secure methods is available, while delivery is organized via your selected FOB Port. Secure packing and shipping ensure the motor arrives in perfect condition, complying with all export standards.

Q: What process is followed to ensure product reliability before delivery?

A: Each motor is thoroughly tested for performance and safety, with stringent quality checks prior to dispatch, guaranteeing reliable operation and customer satisfaction upon arrival.
