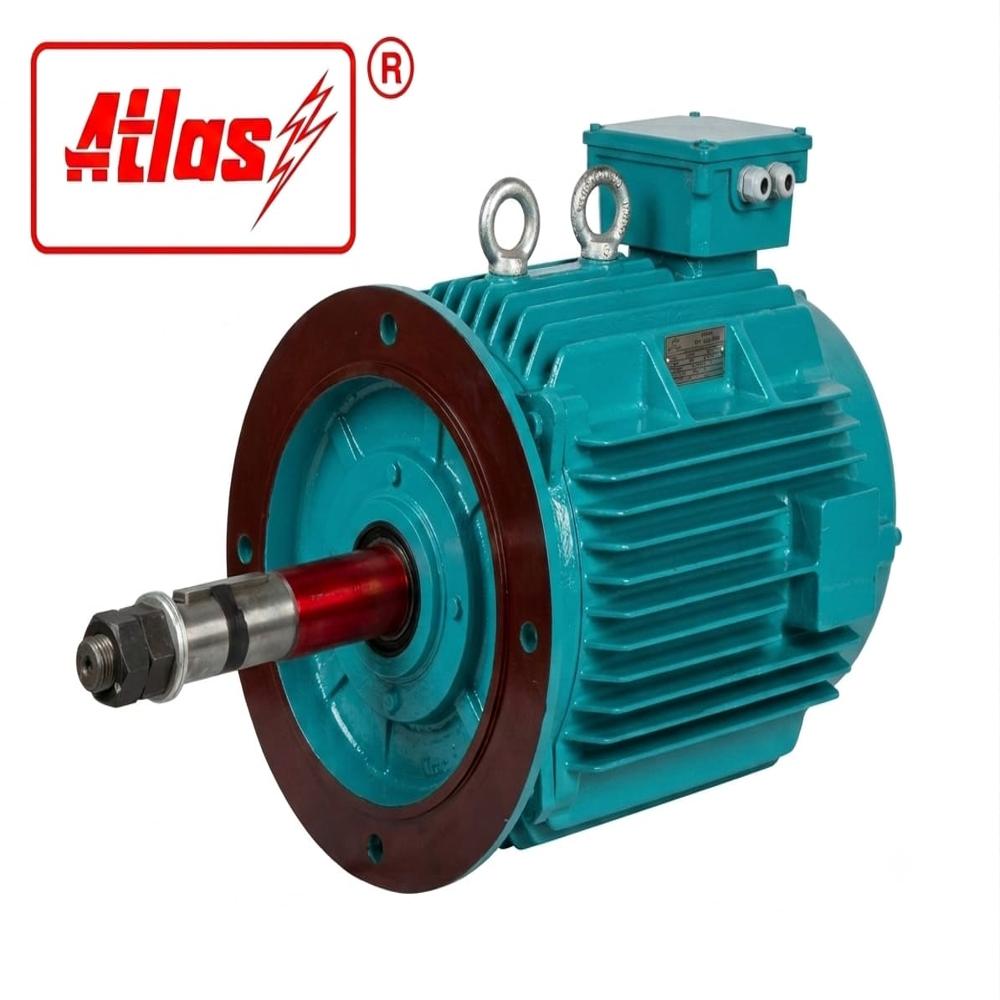

Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM
Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM

Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM

Price 46200.0 INR/ Piece

MOQ : 1 Piece

Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM Specification

  • Voltage
  • 415 V
  • Motor Type
  • Squirrel Cage Induction Motor
  • Rated Frequency
  • 50 Hz
  • Power Rating
  • 3.7 KW
  • Noise Level
  • <70 dB
  • Torque
  • 59 Nm (approx.)
  • Rated Voltage
  • 415 V
  • Efficacy
  • High Efficiency
  • Cooling Method
  • External Fan Cooling
  • Poles Number
  • 12
  • Horse Power
  • 5.0 HP
  • Current Type
  • AC
  • Starting Type
  • Direct-On-Line (DOL)
  • Sealed Type
  • IP55 Sealed
  • Standard
  • IEC/IS standard
  • Features
  • Low RPM, high torque, rugged cast iron body
  • Bearing Type
  • Ball Bearing
  • Ambient Temperature
  • -20C to +50C
  • Product Type
  • Electric Motor
  • Output Power
  • 3.7 KW
  • Frequency (MHz)
  • 50 Hz
  • Protect Feature
  • Totally Enclosed Fan Cooled (TEFC)
  • Phase
  • Three Phase
  • Speed
  • 600 RPM
  • Power
  • 5.0 HP
  • Color
  • Grey
  • Dimension (L*W*H)
  • Custom/Standard size (consult manufacturer)
  • Weight
  • Consult supplier for exact value
  • Shaft Diameter
  • 38 mm (specify to confirm)
  • Mounting Type
  • Flange Mounted (B5)
  • IP Rating
  • IP55
  • Cooling Type
  • IC411
  • Duty Type
  • S1 (Continuous duty)
  • Efficiency Class
  • IE2/IE3 (upon request)
  • Vibration Level
  • Within permissible limits as per IS:12075
  • Insulation Class
  • F/Class H
  • Frame Material
  • Cast Iron
  • Bearing Brand
  • SKF/Equivalent
  • Thermal Overload Protection
  • Provided upon request
  • Application
  • Suitable for heavy-duty industrial pumps, crushers, cement mills, etc.


Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Delivery Time
  • 7 Days


About Cooling Tower Motor 5.0 HP 3.7 KW 600 RPM



Unlock blue-ribbon performance with the ATLAS Cooling Tower Motor from AMIT ELECTRICALS. This ultimate 5.0 HP (3.7 KW), 600 RPM, 12-pole induction motor boasts a robust cast iron frame and advanced IE2/IE3 efficiency (on request)-providing unwavering, preeminent power for your heavy-duty industrial needs. Designed for continuous S1 duty and protected by an IP55 seal, it delivers unmatched durability in high humidity environments. With this exclusive deal, seize the lowest price and enjoy substantial savings, coupled with maximum reliability for your critical operations.

Superior Features & Ultimate Versatility

This 5.0 HP, 3.7 KW, 600 RPM cast iron motor stands out with IE2/IE3 energy efficiency (as requested), SKF-quality bearings, and a rugged construction ideal for demanding roles. Totally enclosed and fitted with an IP55 seal, it combats moisture and dust brilliantly. Engineered for continuous operation, it possesses ball bearing assemblies, low vibration, and reduced noise-ideal for applications like pump drives, crushers, cement mills, and mainly for cooling tower fans in industrial or high-humidity settings.


Reliable Supply, Flexible Shipping & Transparent Transactions

Enjoy prompt supply ability and competitive asking price for bulk orders, dispatched promptly from our FOB port in India. Freight options can be tailored to your needs, ensuring your machine arrives safely and on schedule. AMIT ELECTRICALS supports multiple payment terms (L/C, T/T, and others), providing stress-free financial transactions and reliable support throughout the purchase process, making your buying experience seamless and cost-effective.


Company Name AMIT ELECTRICALS
Brand Atlas
Product Name Cooling Tower Motor
Application Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production Power: 0.25 to 25 HP (0.18 to 18.5 KW)
Frame: 63 to 250M
Poles: 4, 6, 8, 10, 12
Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types Flange (B5)
Frame Material Robust cast iron frame
Ratings S1: Continuous Duty
Voltage & Frequency Standard: 415 5%, 3 Phase, 50 Hz 3%
Optional: 220, 380, 460, 525 V at various frequencies
Protection IP55 protection
Suitable for up to 90% relative humidity
Shaft Material: Stainless Steel AISI-410
Nut & Washer: Stainless Steel AISI-202
Extended shaft for fan fitting
Corrosion protection
Insulation & Duty Insulation Class F
Designed for continuous operation (S1)
Bearings & Oil Seal Double shielded bearings (ZZ or 2RS)
Pre-lubricated with high temp grease
Oil seal prevents moisture ingress
Enclosure T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection Optional T.O.P. switch available on demand
Earthing Terminals Minimum two: one in terminal box, one on body
Paint Semi-glossy synthetic enamel (special paints available on request)
Features Highly efficient
Durable
Smooth finishing
Economical price
Precision design
Long life


FAQ's of 5.0 HP 3.7 KW 600 RPM:


Q: How is the 5.0 HP 3.7 KW 600 RPM Cooling Tower Motor typically used?

A: This motor is engineered primarily for cooling tower fan operations, especially in high-humidity settings such as industrial HVAC, textile, and plastic machinery. It's also suitable for pumps, crushers, and cement mills.

Q: What features make the Atlas Cooling Tower Motor preeminent in its segment?

A: Features include a rugged cast iron body, high-efficiency IE2/IE3 options, SKF-equivalent bearings, IP55 protection, extended corrosion-protected shaft, double-shielded bearings, and thermal overload protection upon request.

Q: When should I request thermal overload protection with this motor?

A: Thermal overload protection is recommended if you're operating in environments prone to voltage fluctuations or where thermal spikes are possible, to enhance safety and prolong motor life.

Q: Where are these motors manufactured and dispatched from?

A: All Atlas Cooling Tower Motors by AMIT ELECTRICALS are manufactured and dispatched from our facility in India. Orders are shipped from the designated FOB port with suitable freight arrangements.

Q: What is the process for ordering and payment for this motor?

A: To order, consult with AMIT ELECTRICALS regarding specifications. Payment options include L/C, T/T, and others to ensure a smooth transaction. Our team assists you throughout the transaction for hassle-free procurement.

Q: How do I benefit from choosing this motor for my industrial setup?

A: You'll secure a highly durable, efficient, and precision-designed motor at a blue-ribbon asking price. Its reliable design ensures long-term savings in maintenance and energy costs, making it a smart investment for continuous industrial operations.
