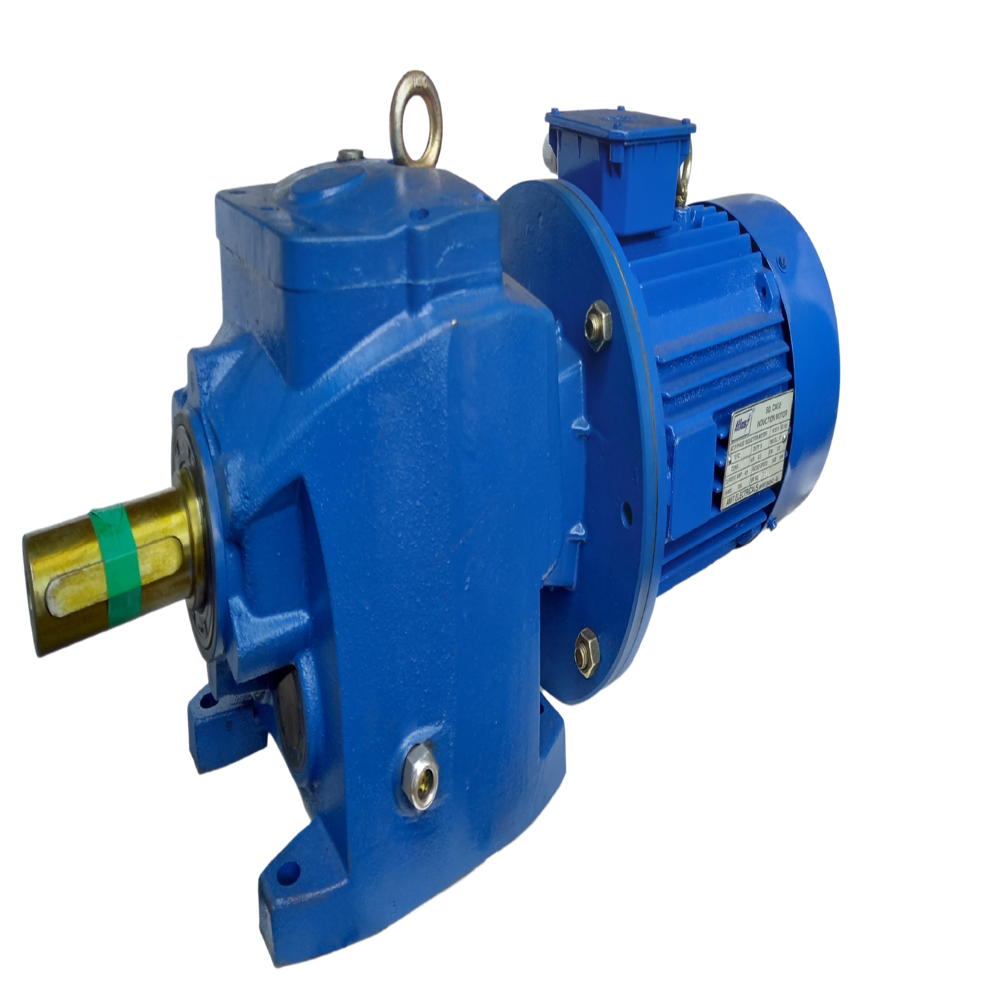

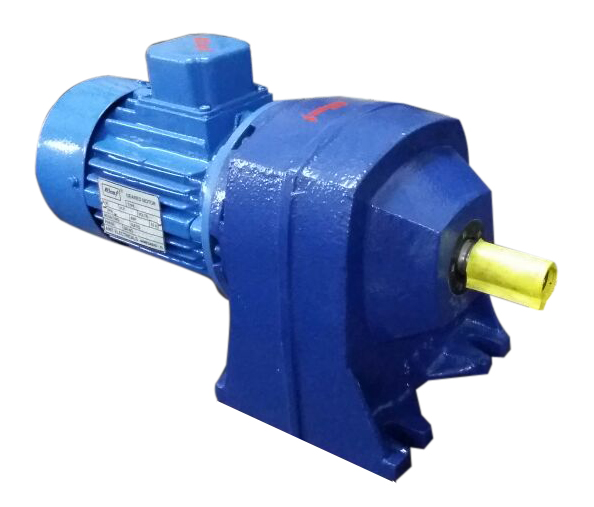

Helical Geared Motor

Helical Gear Motor

We are manufacturer supplier and exporter of helical gear motor. Helical Gear motor is widely use in Industries. We are a paramount organization of this domain involved in offering high qualityHelical Geared Motorto our prestigious customers. These motors are manufactured using high grade quality metal that is sourced from reliable and trusted suppliers of the market. Moreover, we are offering these products to esteemed customers in various designs and specifications to suit their precise requirements in best possible manner. One can avail these motors from us at leading market rates.

We having Three Type of Helical Gear motor

- R series Gear motor

- M Series Gear motor

- V series Gear Motor

R series Helical Gear Motor

R series Helical Geared Motor
K W 0.37 to 22 (0.5 to 30 Hp) in for 415 5% volts 50 HZ 3% other voltage and frequency also we can supply on demand.

Ratio range

We have a vide Rpm and Torque range in R series Helical Geared Motor Minimum Output speed: 4 to 80 rpm and torque 7000 nm Up

Mounting type

Foot-mounted

Body

R series Helical Geared Motor body is made by a robust, rugged cast iron frame with integral feet. It provides long life.

Bearing

The ball or roller bearings are used in R series Helical Geared Motor with ample capacity so that is can take journal and thrust loads.

Oil seals

Superior quality oil seals are user to ensure complete oil tight.

Features

Dimensionally stable

Durable

Highly Standard Modular Designed

High Strength, Compact Dimension

Proper harden Gear provide it Long Service Life

Low Noise. High Efficiency

Two and three stage gear Motor can support high permissible radial load.

High efficiency, can reach to 95%.

M series Helical Gear Motor

M series Helical Geared Motor
K W 0.37 to 5.5 (0.5 to 10 Hp) in for 415 5% volts 50 HZ 3% other voltage and frequency also we can supply on demand.

Ratio range

We have a vide Rpm and Torque range in V series Helical Geared Motor Minimum Output speed: 4 to 80 rpm and torque 4000 nm Up

Mounting type

Foot-mounted

Flange

Foot Cum Flange

Body

M series Helical Geared Motor body is made by a robust, rugged cast iron frame with integral feet. It provides long life.

Bearing

The ball or roller bearings are used in M series Helical Geared Motor with ample capacity so that is can take journal and thrust loads.

Oil seals

Superior quality oil seals are user to ensure complete oil tight.

Features

Dimensionally stable

Durable

Highly Standard Modular Designed

High Strength, Compact Dimension

Proper harden Gear provide it Long Service Life

Low Noise. High Efficiency

Two and three stage gear Motor can support high permissible radial load.

High efficiency, can reach to 95%.

V series Helical Gear Motor

V series Helical Geared Motor
K W 0.37 to 3.7 (0.5 to 5 Hp) in for 415 5% volts 50 HZ 3% other voltage and frequency also we can supply on demand.

Ratio range

We have a vide Rpm and Torque range in V series Helical Geared Motor Minimum Output speed: 4 to 60 rpm and torque 1200 nm Up

Mounting type

Foot-mounted

Flange

Body

V series Helical Geared Motor body is made by a robust, rugged cast iron frame with integral feet. It provides long life.

Bearing

The ball or roller bearings are used in V series Helical Geared Motor with ample capacity so that can take journal and thrust loads.

Oil seals

Superior quality oil seals are user to ensure complete oil tight.

Features

Dimensionally stable

Durable

Highly Standard Modular Designed

High Strength, Compact Dimension

Proper harden Gear provide it Long Service Life

Low Noise. High Efficiency

Two and three stage gear Motor can support high permissible radial load.

High efficiency, can reach to 95%.
