| Company Name |
AMIT ELECTRICALS |
| Brand |
Atlas |
| Product Name |

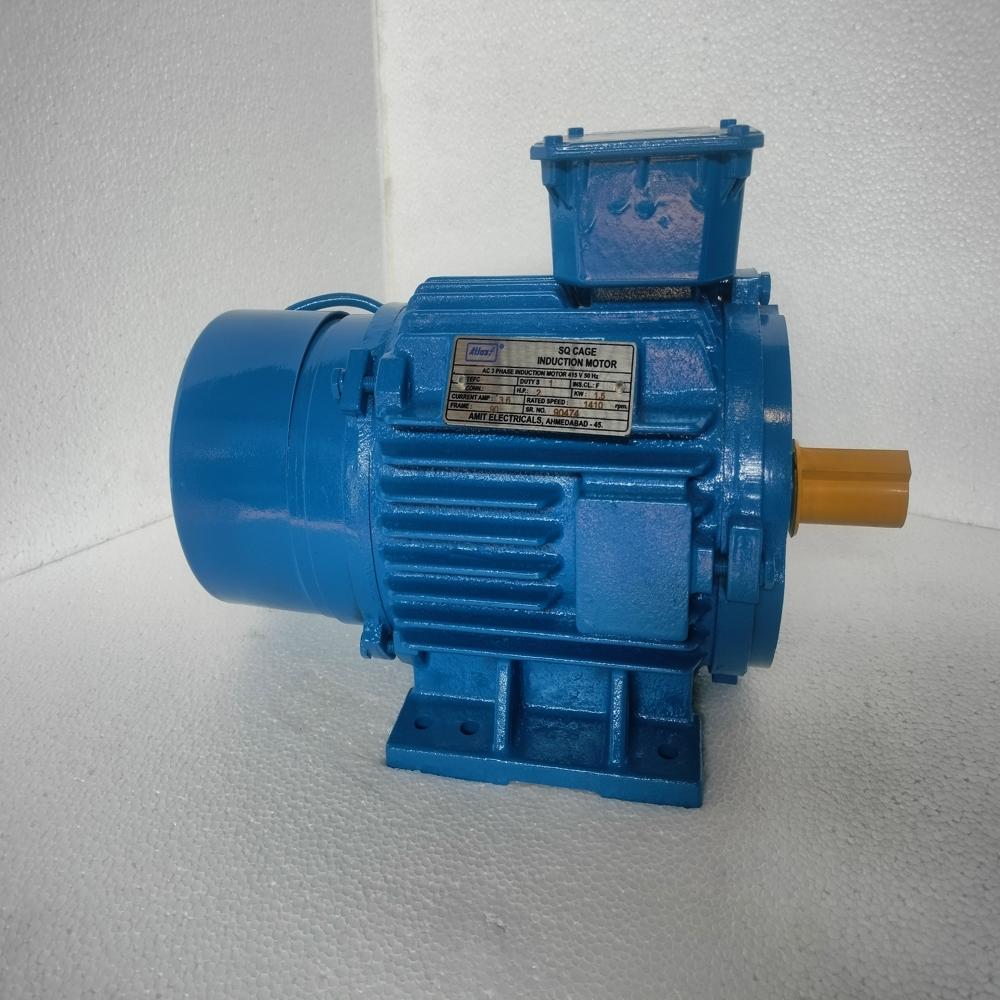

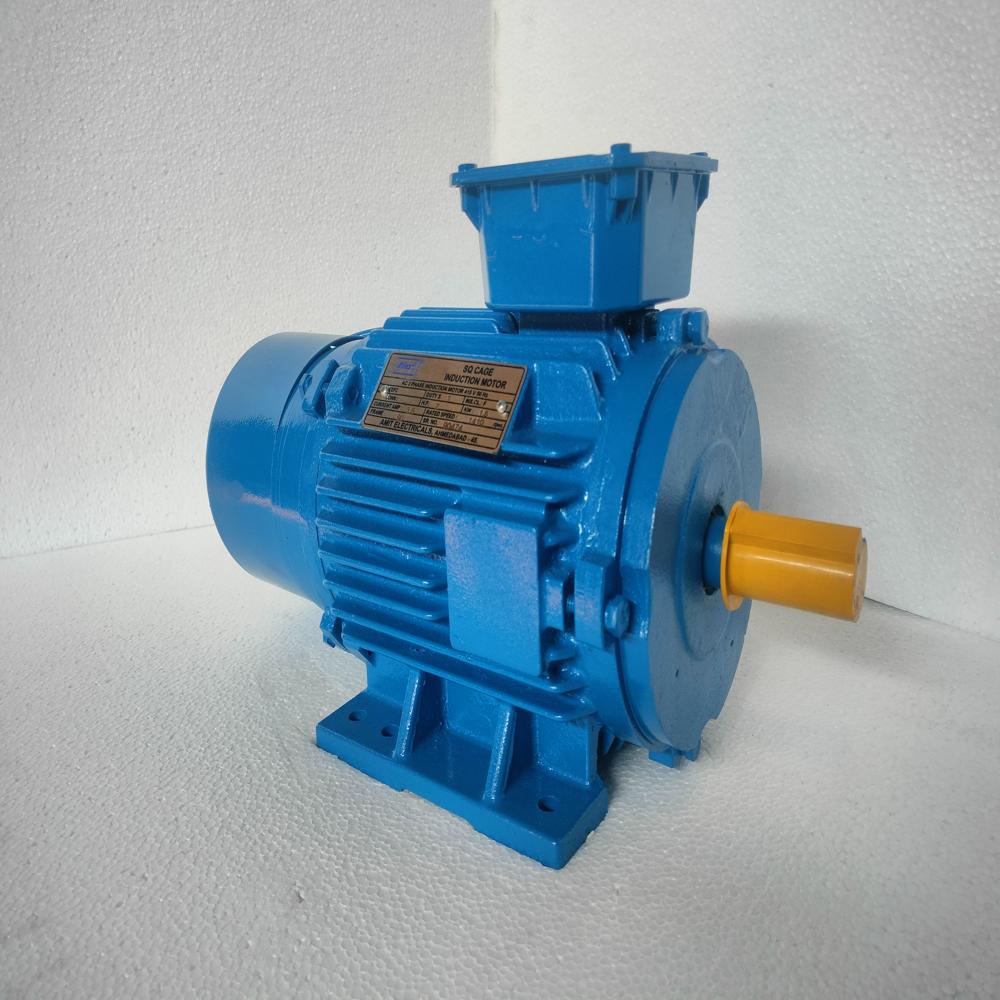

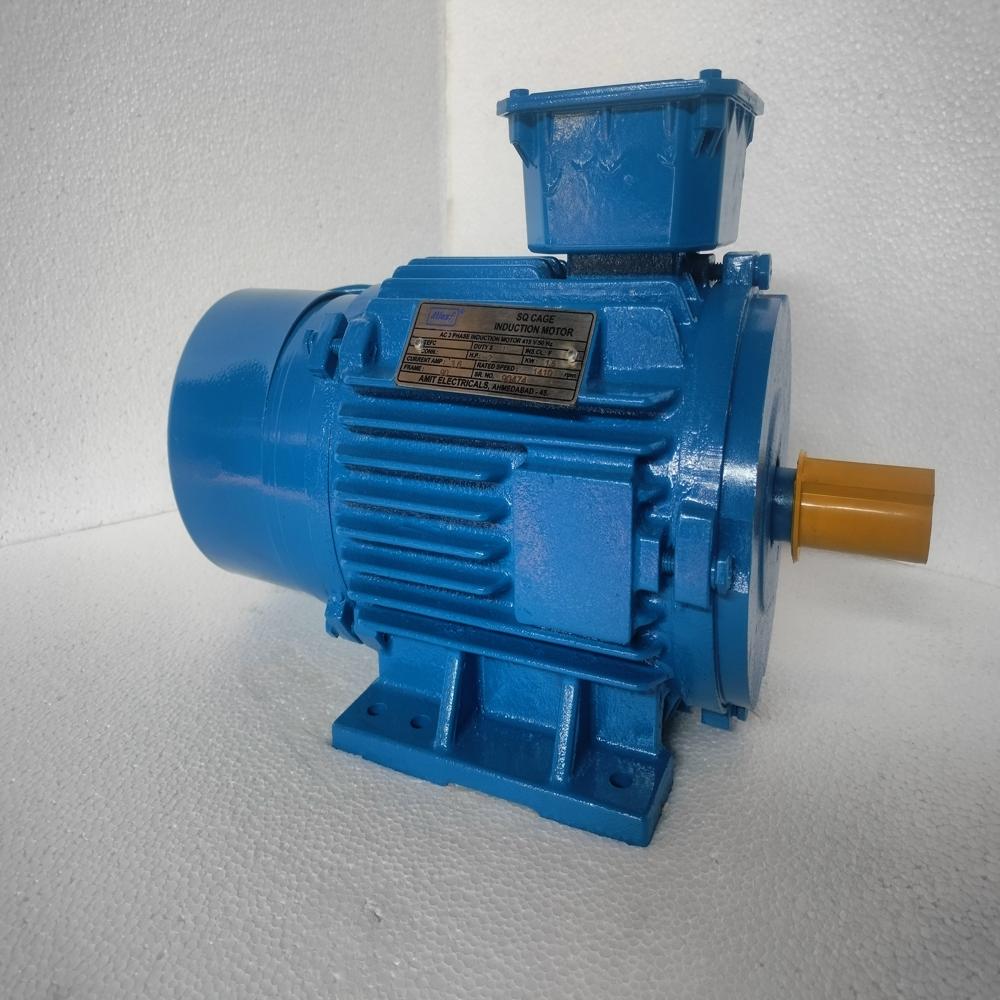

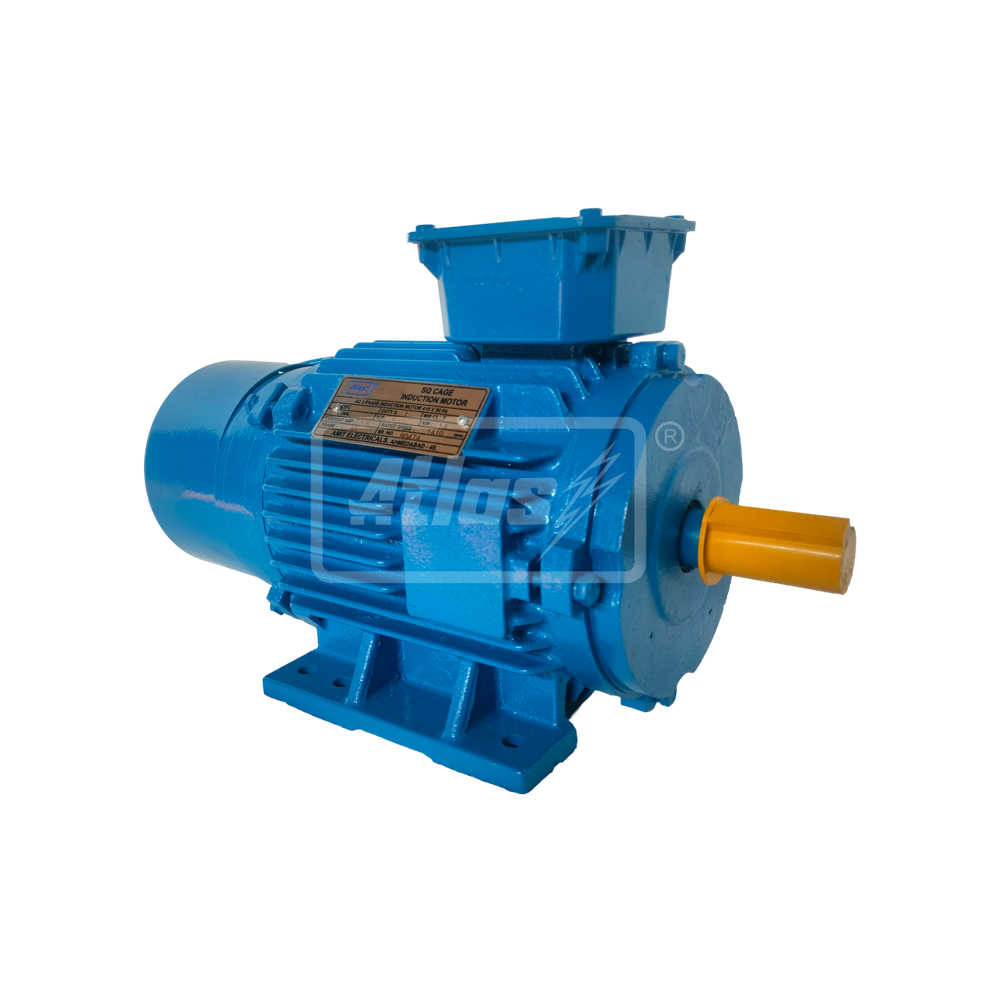

AC Brake Motor |
| Operation |
Motor and Brake both operate with AC voltage |
| Brake Type |
Fail Safe (Power off - Shaft lock) |
| Range of Production |
Three Phase AC Brake Motor
Power: 0.25 to 50 HP (0.18 to 37 KW)
Frame: 63 to 225M
Poles: 2, 4, 6, 8, 10, 12 |
| Mounting Types |
Foot (B3)
Flange (B5)
Face (B14) |
| Frame Material |
Robust cast iron frame with integral feet
Aluminum body available up to 100L frame (on request) |
| Insulation |
Class F (Standard)
Class H (on request) |
| Ratings |
S1: Continuous Duty
S2: Short Time Duty
S3: Intermittent Periodic Duty
S4: Intermittent with Starting Duty
S5: Intermittent with Starting and Electrical Braking |
| Voltage & Frequency |
Standard: 415 -/+ 5%, 50 Hz -/+ 3%
Optional: 220, 380, 460, 525 V at 50 or 60 Hz (on request) |
| Protection |
IP44 (Standard)
Optional: IP54, IP55 (on request) |
| Shaft & Rotor |
Shaft: EN-8 or EN-9 material
Rotor: High-pressure E.C. Grade aluminum die-cast
Dynamically balanced to reduce vibration & noise |
| Bearings & Lubrication |
Bearings: C3 ball bearings
Lubrication: Lithium-based grease (up to 150 deg C) |
| Thermal Overload Protection |
Optional T.O.P. switch available on customer request |
| Terminal Box |
Top position for Foot mounted (B3)
Left/right positions available (on request) |
| Earthing Terminals |
Minimum two: one in terminal box, one on foot |
| Application |
Lifting machinery
Textile machinery
Geared motors
Cable reeling drums
Rolling mills
Machine tools |
| Features |
Highly efficient
Noise-free
Vibration-free
Low running cost
Durable
Smooth finishing
Cost-effective
Precision design |
