Dual Speed Brake Motor

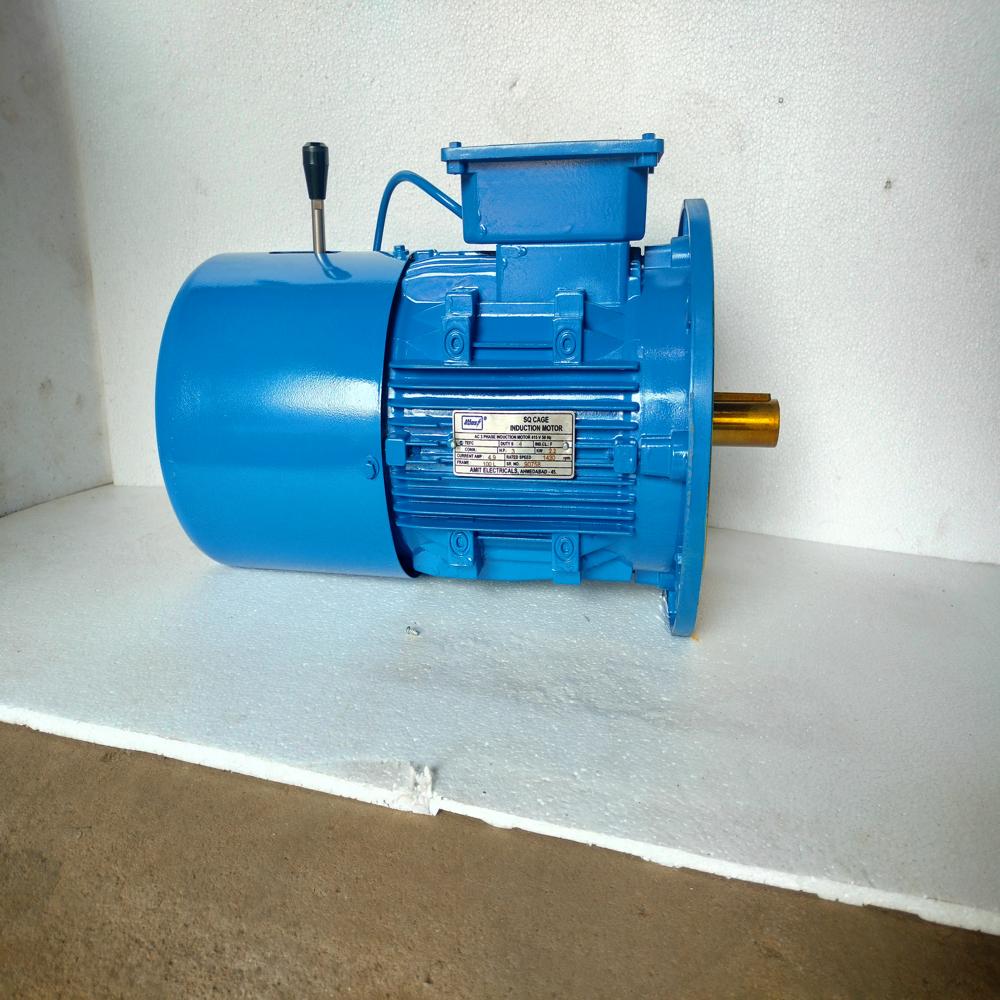

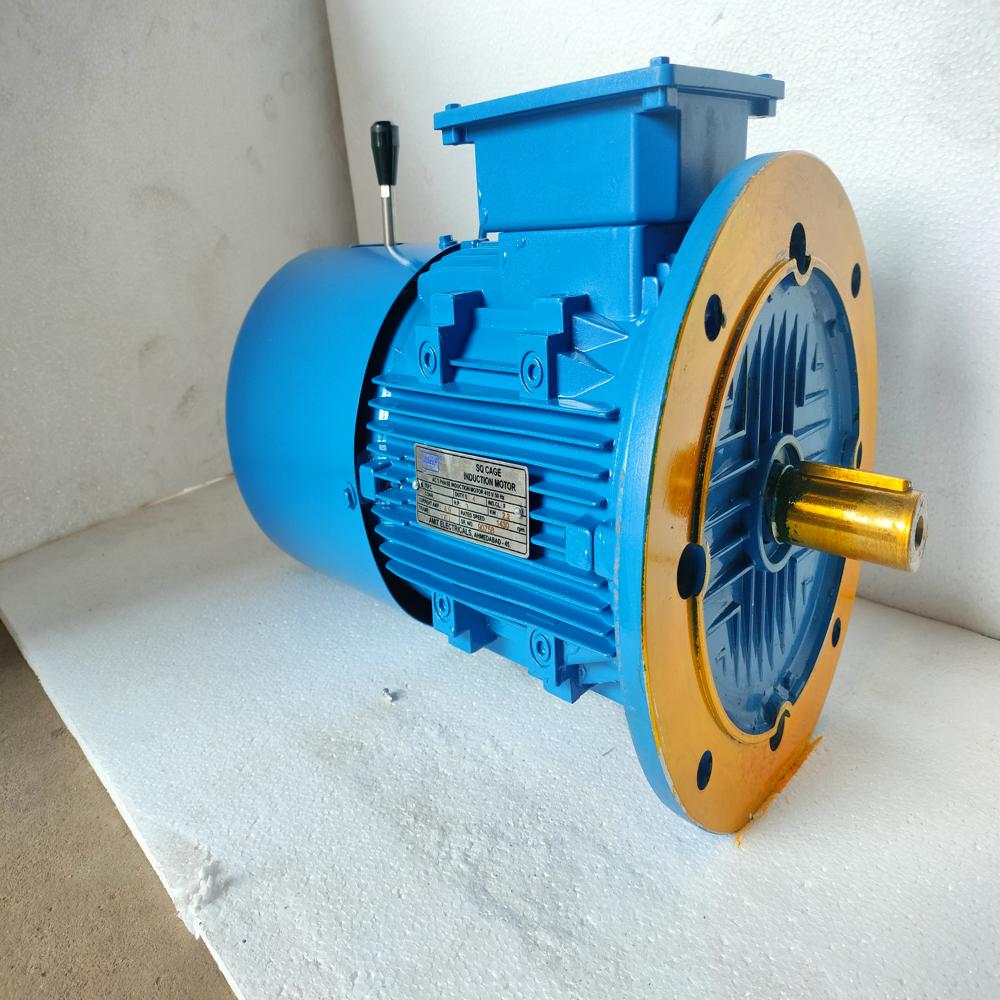

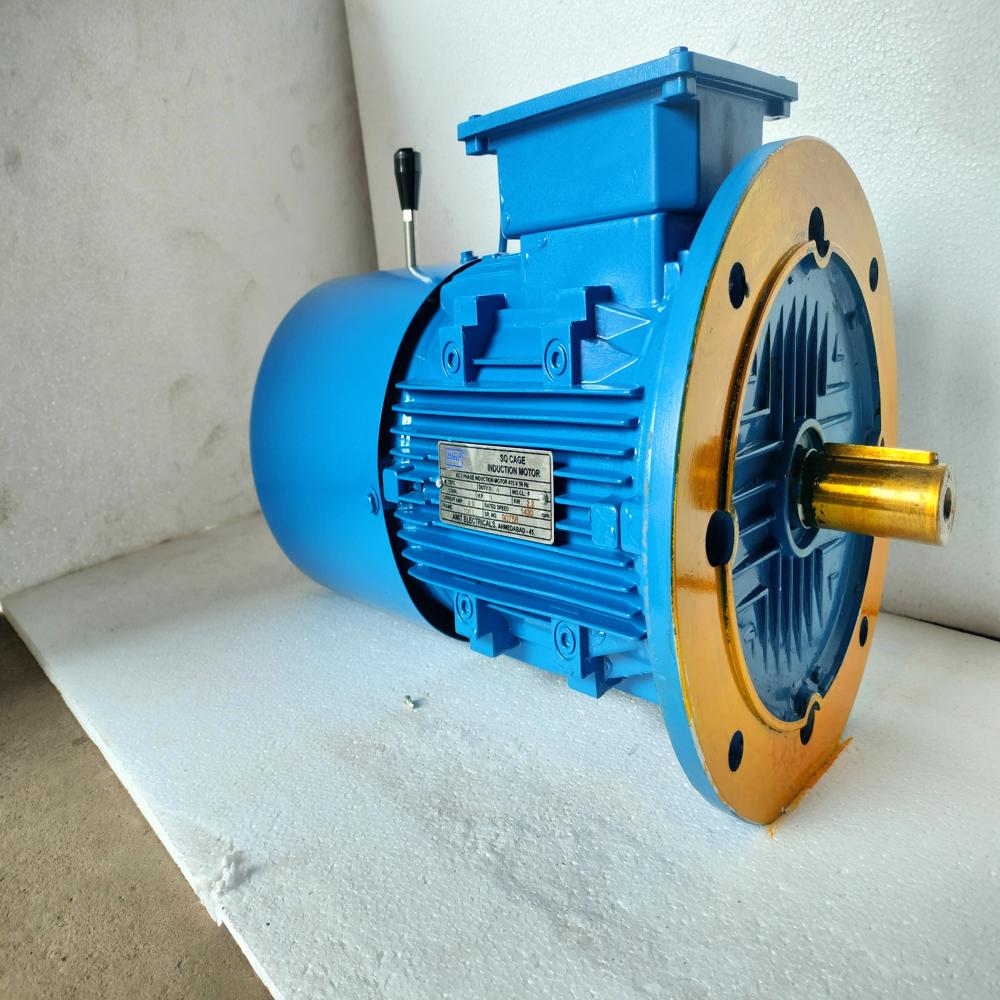

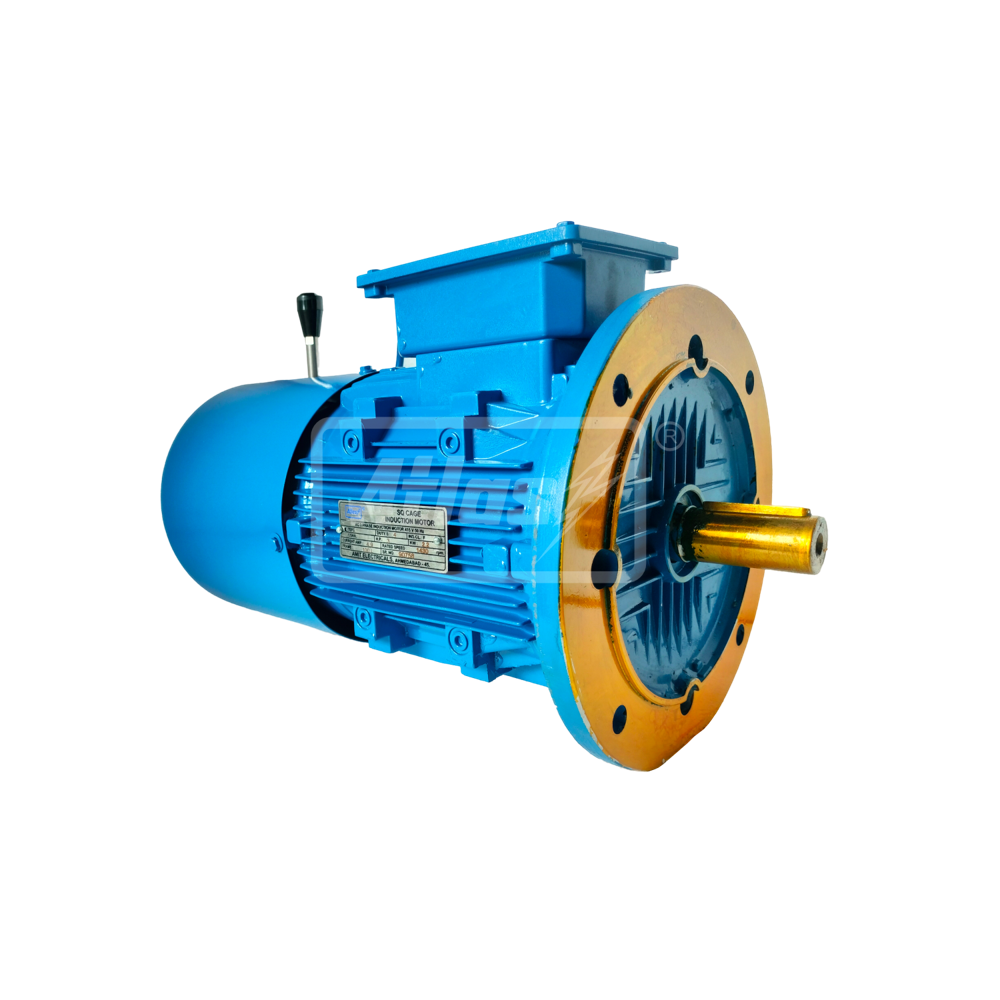

Name: Dual Speed Brake Motor
Brand: AMIT ELECTRICALS
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Kilowatt

Get a Price/Quote

MOQ : 1 Piece

Dual Speed Brake Motor Specification

Product Type
Motor

Frequency (MHz)
50 Hertz (HZ)

Protect Feature
Waterproof

Phase
Three Phase

Starting Type
Electric Start

Warranty
1 Year

Usage & Applications
Industrial

Color
Ble

Dual Speed Brake Motor Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Ahmedbad

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Pieces Per Day

Delivery Time
1 Days

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Western Europe, Eastern Europe, Middle East, Africa

Certifications
ISO and CE

About Dual Speed Brake Motor

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	AC Brake Motor
Operation	Motor and Brake both operate with AC voltage
Brake Type	Fail Safe (Power off - Shaft lock)
Range of Production	Three Phase AC Brake Motor Power: 0.25 to 50 HP (0.18 to 37 KW) Frame: 63 to 225M Poles: 2, 4, 6, 8, 10, 12
Mounting Types	Foot (B3) Flange (B5) Face (B14)
Frame Material	Robust cast iron frame with integral feet Aluminum body available up to 100L frame (on request)
Insulation	Class F (Standard) Class H (on request)
Ratings	S1: Continuous Duty S2: Short Time Duty S3: Intermittent Periodic Duty S4: Intermittent with Starting Duty S5: Intermittent with Starting and Electrical Braking
Voltage & Frequency	Standard: 415 -/+ 5%, 50 Hz -/+ 3% Optional: 220, 380, 460, 525 V at 50 or 60 Hz (on request)
Protection	IP44 (Standard) Optional: IP54, IP55 (on request)
Shaft & Rotor	Shaft: EN-8 or EN-9 material Rotor: High-pressure E.C. Grade aluminum die-cast Dynamically balanced to reduce vibration & noise
Bearings & Lubrication	Bearings: C3 ball bearings Lubrication: Lithium-based grease (up to 150 deg C)
Thermal Overload Protection	Optional T.O.P. switch available on customer request
Terminal Box	Top position for Foot mounted (B3) Left/right positions available (on request)
Earthing Terminals	Minimum two: one in terminal box, one on foot
Application	Lifting machinery Textile machinery Geared motors Cable reeling drums Rolling mills Machine tools
Features	Highly efficient Noise-free Vibration-free Low running cost Durable Smooth finishing Cost-effective Precision design
