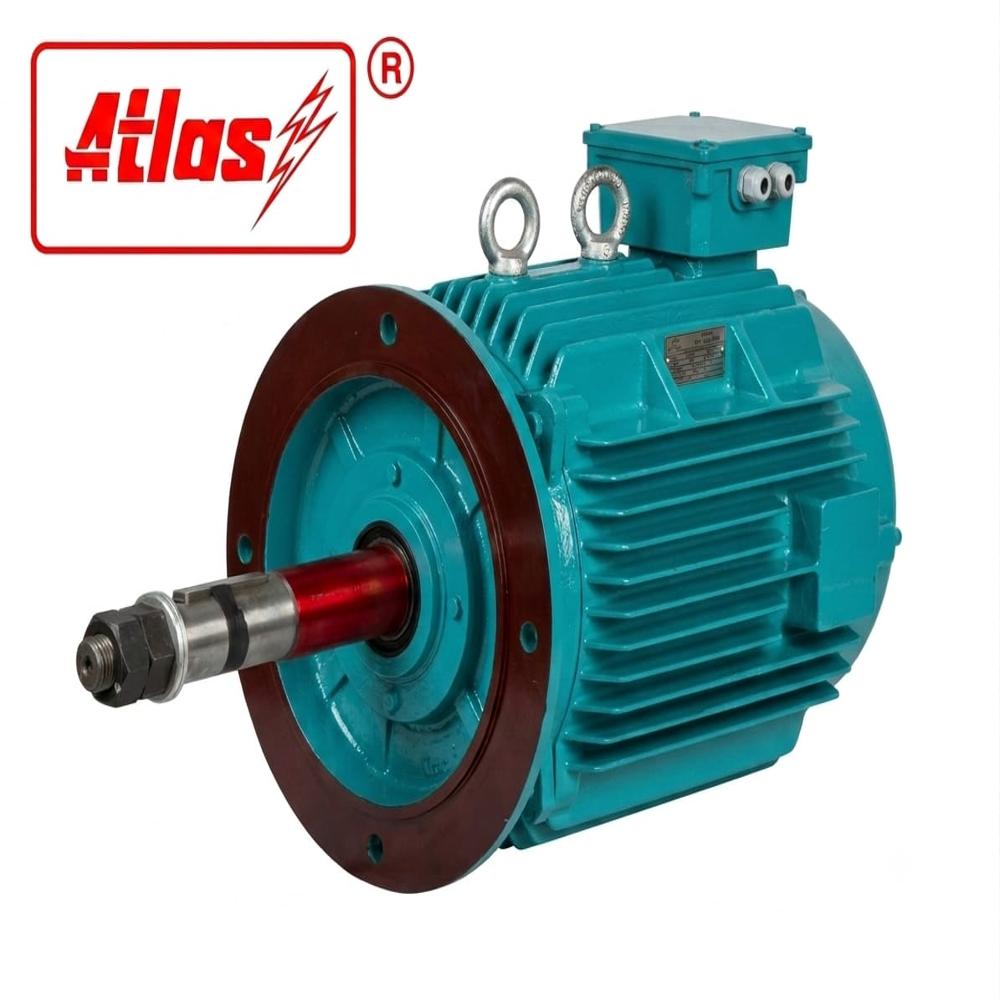

Cooling Tower Motor 0.5 HP 0.37 KW 750 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 0.5 HP 0.37 KW 750 RPM

Name: Cooling Tower Motor 0.5 HP 0.37 KW 750 RPM
Brand: AMIT ELECTRICALS
Price: 9400.0 INR
Availability: InStock

Price 9400.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 0.5 HP 0.37 KW 750 RPM Specification

Motor Type
Induction Motor

Bearing Type
Ball Bearing

Noise Level
Less than 65 dB

Starting Type
DOL

Standard
IS: 325, IEC 60034

Features
Low Maintenance, Energy Efficient, Robust Design

Horse Power
0.5 HP

Efficacy
High Efficiency

Rated Frequency
50 Hz

Rated Voltage
415V

Torque
4.71 Nm (approximate at full load)

Voltage
415V

Power Rating
0.37 KW

Ambient Temperature
-15C to +40C

Cooling Method
Fan Cooled

Current Type
AC

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Poles Number
Other

Product Type
Electric Motor

Output Power
0.37 KW

Frequency (MHz)
50 Hz

Protect Feature
IP55 Protection

Phase
Three Phase

Speed
750 RPM

Power
0.5 HP

Color
Grey

Dimension (L*W*H)
Standard Frame Size

Weight
Approx. 18 kg

Shaft Diameter
19 mm

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Service Factor
1.0

Insulation Class
Class F

Rotor Type
Squirrel Cage

Lubrication
Grease Packed

Altitude
Up to 1000 m above sea level

Frame Material
Cast Iron

Duty Type
S1 (Continuous Duty)

Thermal Protection
Optional

Direction of Rotation
Both (CW & CCW)

Connection Type
Star / Delta

Cooling Tower Motor 0.5 HP 0.37 KW 750 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 0.5 HP 0.37 KW 750 RPM

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

Engineered for Reliable Performance

Built with a squirrel cage rotor, the motor operates at high efficiency with a 1.0 service factor, ensuring continuous and dependable power. Its robust cast iron construction and TEFC enclosure safeguard against dust, water, and harsh environments, meeting IS:325 and IEC 60034 standards for industrial-grade reliability.

Versatile Usage and Easy Installation

Designed for mounting flexibility, this motor can be installed in either foot or flange mount arrangements. With a standard frame size and 19 mm shaft diameter, integration into various machinery is straightforward. Connection options (Star/Delta) and support for both rotation directions facilitate seamless adaptation to your requirements.

FAQ's of 0.5 HP 0.37 KW 750 RPM:

Q: How does the IP55 rating benefit this induction motor?

A: The IP55 protection ensures the motor is safe from dust ingress and low-pressure water jets. This makes it suitable for operations in demanding environments, reducing the risk of internal damage and extending operational lifespan.

Q: What are the typical applications for a 0.5 HP, 750 RPM, three-phase induction motor?

A: This motor is ideal for industrial and commercial applications such as conveyors, pumps, fans, and small machinery, especially where continuous (S1) duty and reliable, energy-efficient operation are essential.

Q: Where can this induction motor be installed?

A: With its TEFC construction and IP55 protection, the motor is well-suited for indoor and outdoor installations, including production facilities, workshops, and environments exposed to dust or moisture, as long as altitude remains below 1000 meters.

Q: What is the process for starting this motor?

A: This motor utilizes Direct-On-Line (DOL) starting, which is straightforward and commonly used for motors with lower power ratings. Ensure proper Star/Delta connection according to your setup during installation for optimal performance.

Q: When should the motor be lubricated or serviced?

A: Thanks to its grease-packed ball bearings and low-maintenance design, the motor requires minimal servicing. Routine inspection as per manufacturer's guidelines is recommended to ensure smooth and reliable operation.

Q: How does the insulation class F enhance motor longevity?

A: Class F insulation allows the windings to withstand higher temperatures (up to 155C), offering better protection against thermal overload and contributing to longer service life, even under continuous operation.
