Cooling Tower Motor 1.0 HP 0.75 KW 1000 RPM

Send Inquiry

Request To Call Back

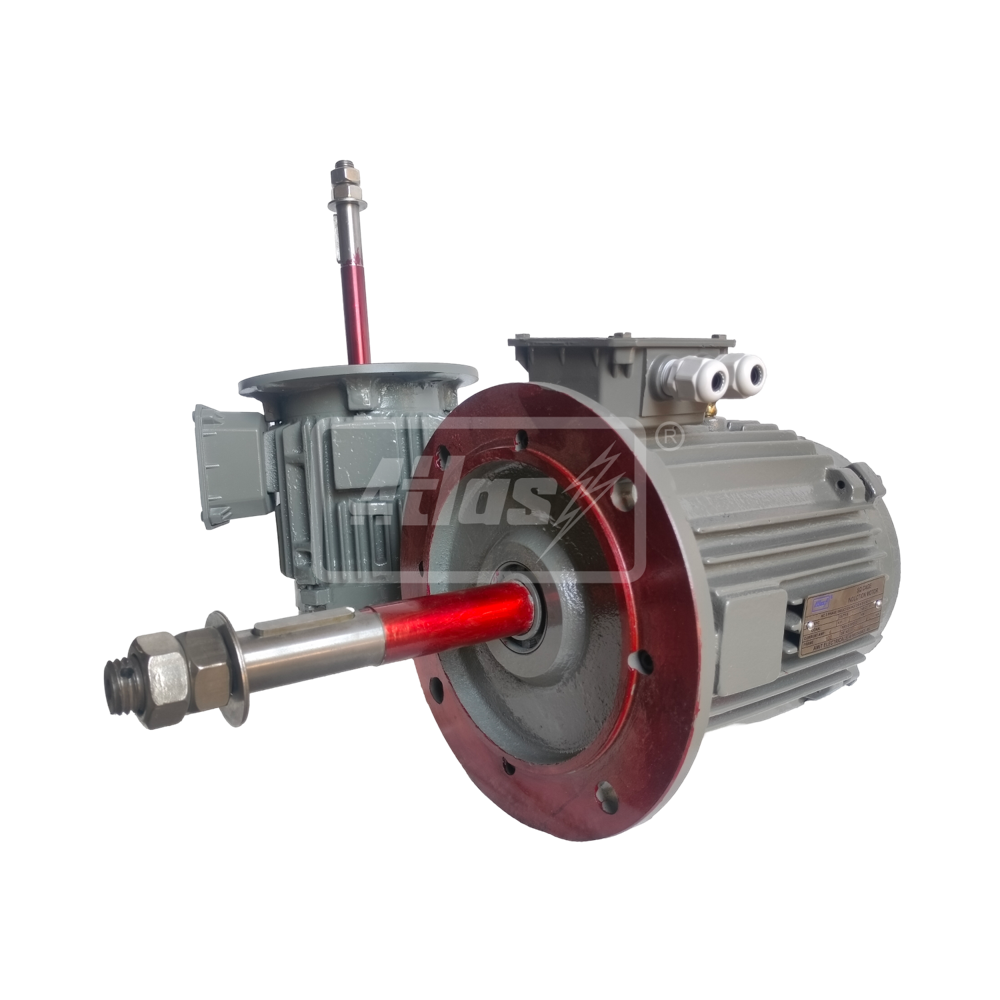

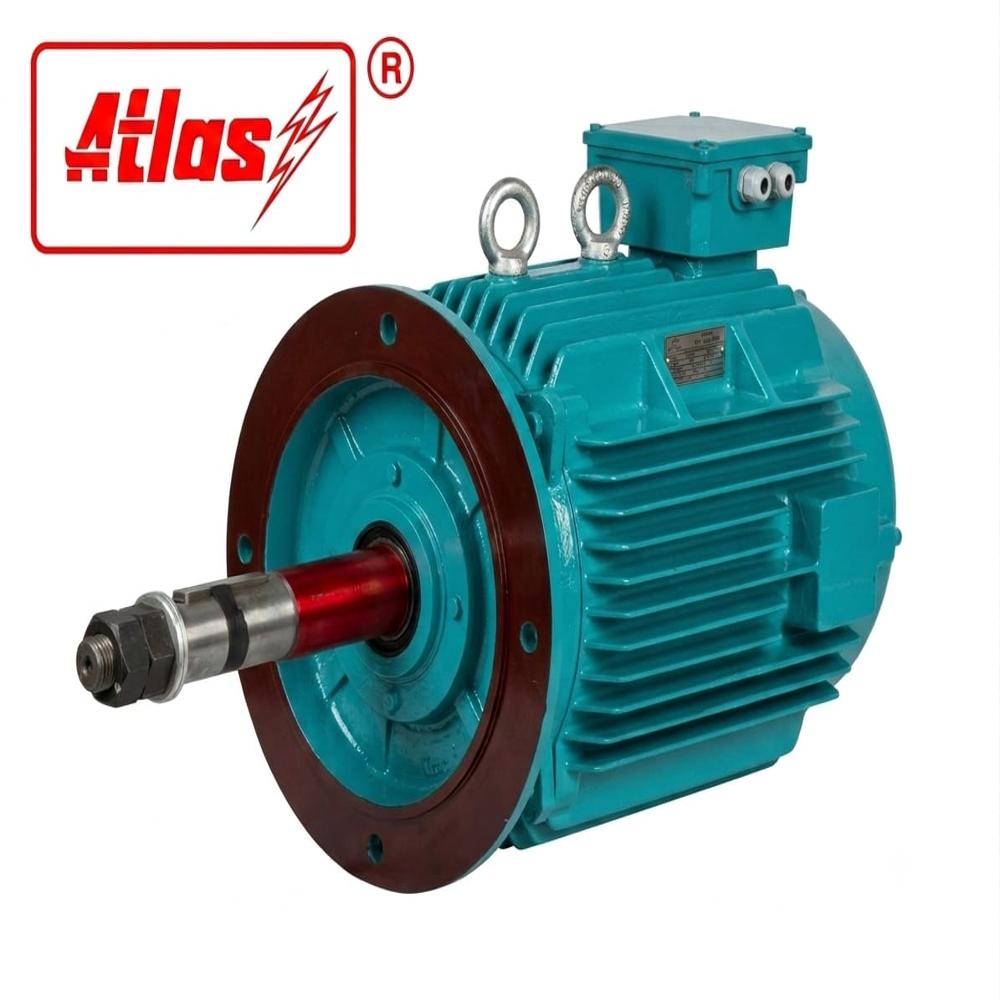

Cooling Tower Motor 1.0 HP 0.75 KW 1000 RPM

Name: Cooling Tower Motor 1.0 HP 0.75 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 9250.0 INR
Availability: InStock

Price 9250.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 1.0 HP 0.75 KW 1000 RPM Specification

Rated Frequency
50 Hz

Horse Power
1.0 HP

Cooling Method
Fan Cooled

Standard
IS: 325, IS: 12615

Sealed Type
IP55

Ambient Temperature
-15C to +50C

Torque
7.16 Nm

Noise Level
Low Noise (<65 dB)

Starting Type
Direct-On-Line (DOL)

Power Rating
0.75 KW

Efficacy
IE2 Standard

Poles Number
Other

Rated Voltage
415 V

Voltage
415 V

Features
Robust construction, high efficiency, low maintenance

Bearing Type
Deep Groove Ball Bearing

Motor Type
Induction Motor

Current Type
AC

Product Type
Electric Motor

Output Power
0.75 KW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
1000 RPM

Power
1.0 HP

Color
Grey

Dimension (L*W*H)
320 x 190 x 230 mm (Approx.)

Weight
22 kg (Approx.)

Shaft Diameter
24 mm

Mounting Type
Foot/Flange Mounting

Enclosure Material
Cast Iron

Duty Type
S1 (Continuous)

Rotor Type
Squirrel Cage

Ambient Humidity
90%

Frame Size
112M

Service Factor
1.15

Insulation Class
Class F

Cooling Tower Motor 1.0 HP 0.75 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 1.0 HP 0.75 KW 1000 RPM

Ending soon: elevate your operations with the Atlas Cooling Tower Motor from AMIT ELECTRICALS - a must-have solution for high-humidity industrial environments. This kingly 1.0 HP, 0.75 KW motor embodies wondrous efficiency with a continuous S1 duty cycle, lavish cast iron enclosure, and robust IP55 rating. Precision engineered for high torque, low noise (<65 dB), and optimal performance, it offers immense value with minimal maintenance. Don't miss your chance to secure a motor that pairs luxury construction with economical reliability.

Versatile Power for Demanding Environments

The 1.0 HP 0.75 KW 1000 RPM Cooling Tower Motor is used extensively in high-humidity locations such as cooling towers, textile machinery, and plastic industries. Featuring an extra durable cast iron frame, Class F insulation, and sealed IP55 protection, it delivers continuous operation with low noise. Ideal for commercial and industrial operations where reliability and efficiency are paramount, this motor's wondrous versatility and robust features make it the kingly choice for challenging applications.

Packaging, Sample, and Delivery Information

Packing & Dispatch for the 1.0 HP 0.75 KW 1000 RPM motor is executed with extreme care, ensuring product safety and maintaining market value. Quick Dispatch guarantees minimal lead-time, with standard packaging ensuring damage-free delivery. Sample policies are available on demand for bulk requirements. Customers benefit from efficient logistics, with products consistently delivered on schedule, assuring reliability and satisfaction for every valuable investment in AMIT ELECTRICALS machinery.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 1.0 HP 0.75 KW 1000 RPM:

Q: How is the Cooling Tower Motor suitable for high-humidity environments?

A: The Cooling Tower Motor is engineered with an IP55 rating and features robust cast iron construction, making it completely dust-tight and highly resistant to water ingress. These aspects ensure reliable operation and longevity even in environments with 90% relative humidity.

Q: What extra features enhance the motor's performance and lifespan?

A: This model includes double shielded bearings pre-lubricated with high-temperature grease, an oil seal that prevents moisture ingress, and stainless steel shaft components for corrosion resistance. The Class F insulation and continuous duty rating further strengthen its commercial performance and lifespan.

Q: Where can the 1.0 HP 0.75 KW 1000 RPM motor be used commercially?

A: Designed for cooling tower fan operations, the motor is ideal for industrial HVAC systems, textile machinery, and plastic manufacturing equipment where continuous and efficient ventilation is required.

Q: What is the packaging and delivery process for this motor?

A: Each motor is securely packed using standard protective materials to prevent damage in transit. Quick dispatch ensures prompt shipping, and systematic logistics are employed to maintain market value and customer satisfaction upon delivery.

Q: How does the Totally Enclosed Fan Cooled (TEFC) enclosure benefit users?

A: The TEFC enclosure keeps the internal components safe from external contaminants, dust, and moisture, thereby extending the service life and reducing maintenance requirements for the motor.

Q: What type of mounting options are available for this motor?

A: The motor is designed for flexible installation, accommodating both foot and flange (B5) mounting types, making it suitable for a range of commercial systems and applications.
