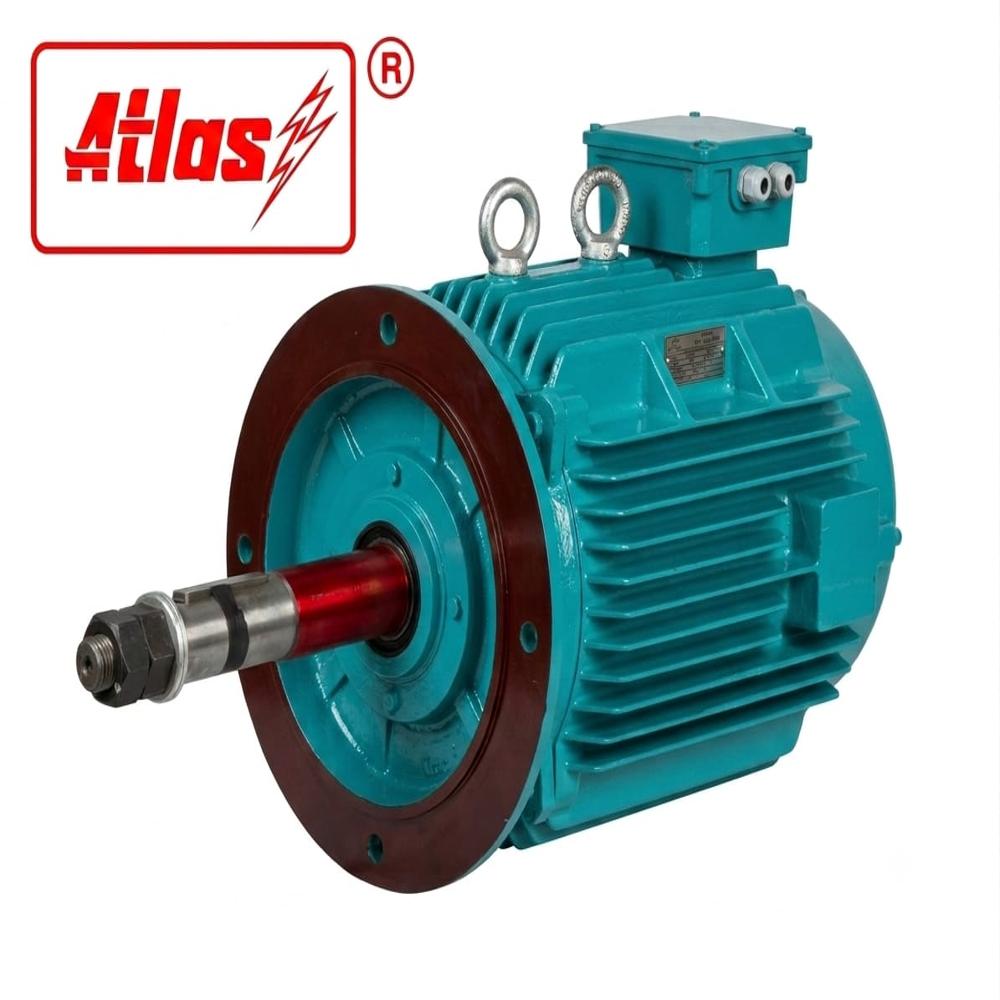

Cooling Tower Motor 1.5 HP 1.1 KW 1000 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 1.5 HP 1.1 KW 1000 RPM

Name: Cooling Tower Motor 1.5 HP 1.1 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 10200.0 INR
Availability: InStock

Price 10200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 1.5 HP 1.1 KW 1000 RPM Specification

Poles Number
Other

Rated Voltage
415 V

Bearing Type
Ball Bearing

Features
Robust construction, High starting torque, Energy efficient

Efficacy
IE2 (High Efficiency)

Noise Level
<65 dB

Starting Type
Direct On Line (DOL)

Cooling Method
IC411

Torque
10.5 Nm (Approx.)

Motor Type
Squirrel Cage Induction Motor

Rated Frequency
50 Hz

Power Rating
1.1 kW

Ambient Temperature
-15C to 40C

Standard
ISI, IEC 60034-1

Voltage
415 V

Horse Power
1.5 HP

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Current Type
AC

Product Type
Electric Motor

Output Power
1.1 KW

Frequency (MHz)
50 Hz

Protect Feature
Fully Enclosed

Phase
Three Phase

Speed
1000 RPM

Power
1.5 HP

Color
Grey

Dimension (L*W*H)
Standard (see datasheet)

Weight
19 kg

Shaft Diameter
28 mm

Mounting Type
Flange Mounted (B5)

IP Rating
IP55

Duty Type
S1 (Continuous Duty)

Direction of Rotation
Reversible

Application
Industrial machinery, Pumps, Compressors, Fans & Blowers

Voltage Tolerance
10%

Altitude
Up to 1000 meters above sea level

Frequency Tolerance
5%

Frame Size
100L

Insulation Class
Class F

Cooling Tower Motor 1.5 HP 1.1 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 1.5 HP 1.1 KW 1000 RPM

Experience the Marvelous performance of Atlas Cooling Tower Motor by AMIT ELECTRICALS-engineered for optimum efficiency and reliability in demanding environments. This top-rated, 1.5 HP (1.1 KW) industrial motor with 1000 RPM, resplendent grey color, and robust cast iron frame offers outstanding energy efficiency (IE2) and high starting torque. The fully enclosed, fan-cooled (TEFC) construction and IP55 protection ensure durability in high humidity areas. Personalise your choice with special rate options, and trust in its precision design for long operational life.

Versatile Industrial Applications & Distinct Surface Advantages

The 1.5 HP 1.1 KW 1000 RPM motor excels in diverse applications beyond cooling towers, including industrial machinery, pumps, compressors, and fans & blowers. Its resplendent, corrosion-protected surface is ideal for high-humidity and atmospheric installations, making it robust enough for continuous operation. The principal advantage lies in its high efficiency, smooth finishing, and precision engineering, ensuring your industrial systems run reliably even in challenging environmental conditions.

Export Destinations, Packaging, and Arrival Markets at the Best Price

Atlas Motors by AMIT ELECTRICALS enjoy remarkable arrival in both global and domestic markets, including Asia, the Middle East, and Africa. Each unit is carefully packed in sturdy wooden crates to guarantee safe transport at the lowest asking price. They are highly sought after in key markets such as Gujarat and all over India due to their reliable performance and special rate offers, making them a top selection for price-conscious buyers.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 1.5 HP 1.1 KW 1000 RPM:

Q: How can the 1.5 HP 1.1 KW 1000 RPM Atlas Cooling Tower Motor be personalised for specific industrial needs?

A: You can personalise your Atlas Cooling Tower Motor by choosing from available voltage, frequency, and mounting type options. Special paint finishes and optional thermal overload protection are also offered on demand to suit various industrial requirements.

Q: What are the main benefits of choosing this motor for high-humidity environments?

A: This motor boasts resplendent corrosion resistance thanks to its stainless steel shaft and extended protection features. The IP55 rating and double-shielded bearings further safeguard against humidity and moisture, ensuring reliable, long-lasting performance.

Q: Where can this motor be effectively used beyond cooling towers?

A: Apart from cooling tower operations, the motor excels in pumps, compressors, fans, blowers, and various types of industrial machinery, particularly in environments requiring robust, continuous-duty equipment.

Q: What packaging details are provided to ensure the product's safe arrival?

A: The motor is securely packaged in durable wooden crates and protected with appropriate padding, ensuring it arrives at its destination without any transit damages.

Q: When should you opt for the optional thermal overload protection switch?

A: Opt for the optional thermal overload protection switch if your application involves frequent overload cycles or operates in highly variable temperature environments, enhancing motor safety and longevity.

Q: How does the robust surface and construction contribute to its advantage?

A: The motor's robust cast iron frame, corrosion-resistant shaft, and semi-glossy enamel finish offer resilience against wear, humidity, and corrosive atmospheres, ensuring uninterrupted performance in demanding applications.
