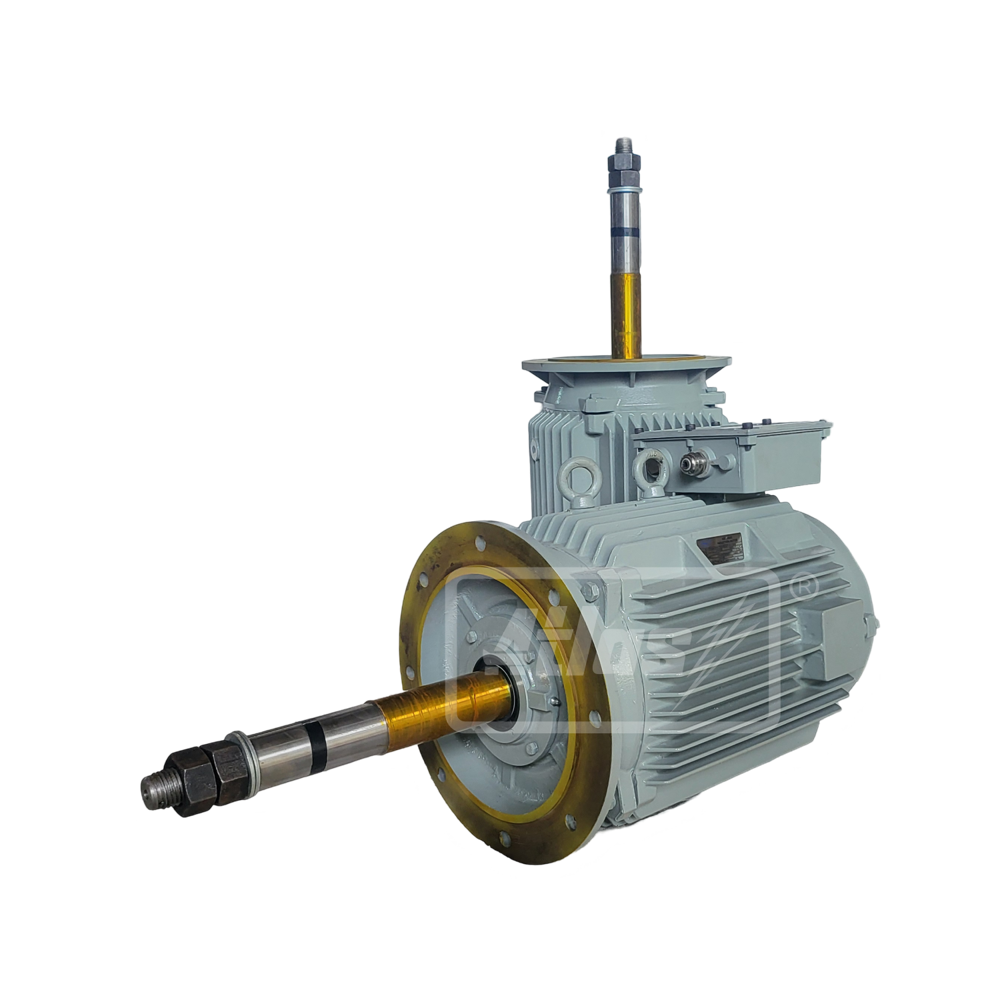

Cooling Tower Motor 7.5 HP 5.5 KW 1000 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 7.5 HP 5.5 KW 1000 RPM

Name: Cooling Tower Motor 7.5 HP 5.5 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 27700.0 INR
Availability: InStock

Price 27700.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 7.5 HP 5.5 KW 1000 RPM Specification

Features
Robust Design, Energy Efficient, Low Maintenance

Standard
IS:325 / IEC 60034

Ambient Temperature
-15C to +40C

Bearing Type
Deep Groove Ball Bearing

Sealed Type
Totally Enclosed

Current Type
AC

Starting Type
Direct On Line (DOL)

Horse Power
7.5 HP

Poles Number
Other

Rated Voltage
415 V

Torque
Rated as per output

Power Rating
5.5 KW

Noise Level
< 70 dB

Cooling Method
TEFC (Totally Enclosed Fan Cooled)

Efficacy
IE2/IE3 as required

Rated Frequency
50 Hz

Motor Type
Squirrel Cage Induction Motor

Voltage
415 V

Product Type
Three Phase Induction Electric Motor

Output Power
7.5 HP / 5.5 KW

Frequency (MHz)
50 Hz

Protect Feature
IP55

Phase
Three Phase

Speed
1000 RPM

Power
5.5 KW

Color
Grey

Dimension (L*W*H)
Custom/As Per Standard

Weight
Approx. 65-75 kg

Shaft Diameter
28-38 mm (standard)

Mounting Type
Foot / Flange Mounting

IP Rating
IP55

Enclosure Type
Totally Enclosed Fan Cooled (TEFC)

Connection Type
Star / Delta

Insulation Class
Class F

Altitude
Up to 1000 meters above sea level

Vibration Level
As per IS/IEC Standard

Max Relative Humidity
< 90% (non condensing)

Supply Voltage Variation
10%

Duty Cycle
S1 (Continuous)

Terminal Box Position
Top/Side

Service Factor
1.15

Frequency Variation
5%

Cooling Fan Material
Plastic/Steel

Rotor Type
Aluminum Die-Cast

Frame Size
112M - 132M

Application
Industrial, Pumps, Compressors, Fans, Conveyors, Crushers

Paint Type
Epoxy Coated

Cooling Tower Motor 7.5 HP 5.5 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Week

About Cooling Tower Motor 7.5 HP 5.5 KW 1000 RPM

Highlighted for transcendent performance, the Atlas Cooling Tower Motor by AMIT ELECTRICALS delivers top-tier reliability with 7.5 HP (5.5 KW) power at 1000 RPM. Engineered with a Totally Enclosed Fan Cooled (TEFC) enclosure, Class F insulation, and robust cast iron frame, this motor guarantees energy efficiency and longevity. Offering unprecedented benefits like low noise, IP55 protection, and epoxy-coated finish, it surpasses industry standards. With competitive pricing and adherence to IS:325/IEC 60034, it's ideal for demanding industrial settings needing high durability and seamless operation.

Versatile Applications and Special Features

The 7.5 HP 5.5 KW 1000 RPM Atlas Cooling Tower Motor excels in commercial environments, making it a preferred choice for industries ranging from HVAC, pumps, and conveyors to crushers. Specifically engineered for cooling tower fan operations, its robust construction and IP55 protection ensure consistent general use even in high humidity environments. Special features such as energy efficiency, extended corrosion-resistant shaft, and low vibration make it an optimal investment for both specific and diverse industrial needs.

Supply Ability and Order Fulfillment

AMIT ELECTRICALS ensures a robust supply ability for the 7.5 HP 5.5 KW 1000 RPM motor with smooth order processing and minimal outlay on the client's part. Delivery is efficiently managed through major FOB ports, catering to both domestic and global demands. The main domestic market is India, with a well-established distribution network providing prompt delivery and reliable after-sales support for hassle-free procurement of high-quality industrial motors.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 7.5 HP 5.5 KW 1000 RPM:

Q: How does the Atlas Cooling Tower Motor ensure durability in industrial settings?

A: The Atlas Cooling Tower Motor utilizes a robust cast iron frame, epoxy-coated finish, IP55 protection, and heavy-duty bearings to withstand harsh industrial conditions and maximize longevity.

Q: What commercial applications are best suited for the 7.5 HP 5.5 KW 1000 RPM motor?

A: This motor is ideal for cooling tower fans, compressors, pumps, conveyors, textile machinery, and HVAC systems, particularly in environments with high humidity or continuous operation needs.

Q: When can clients expect delivery after placing an order?

A: Orders are processed promptly to minimize outlay and ensure swift delivery, with timelines depending on stock availability and destination, typically dispatched via major FOB ports.

Q: Where can this motor be installed for optimal performance?

A: It is suited for installation in indoor or semi-outdoor settings, especially in industrial sectors needing continuous operation and reliability at places with relative humidity below 90%.

Q: What are the special features that distinguish this motor from standard options?

A: The motor stands out with energy efficiency (IE2/IE3), low maintenance, continuous S1 duty, corrosion-resistant shaft, TEFC enclosure, and compatibility with both star and delta connections.
