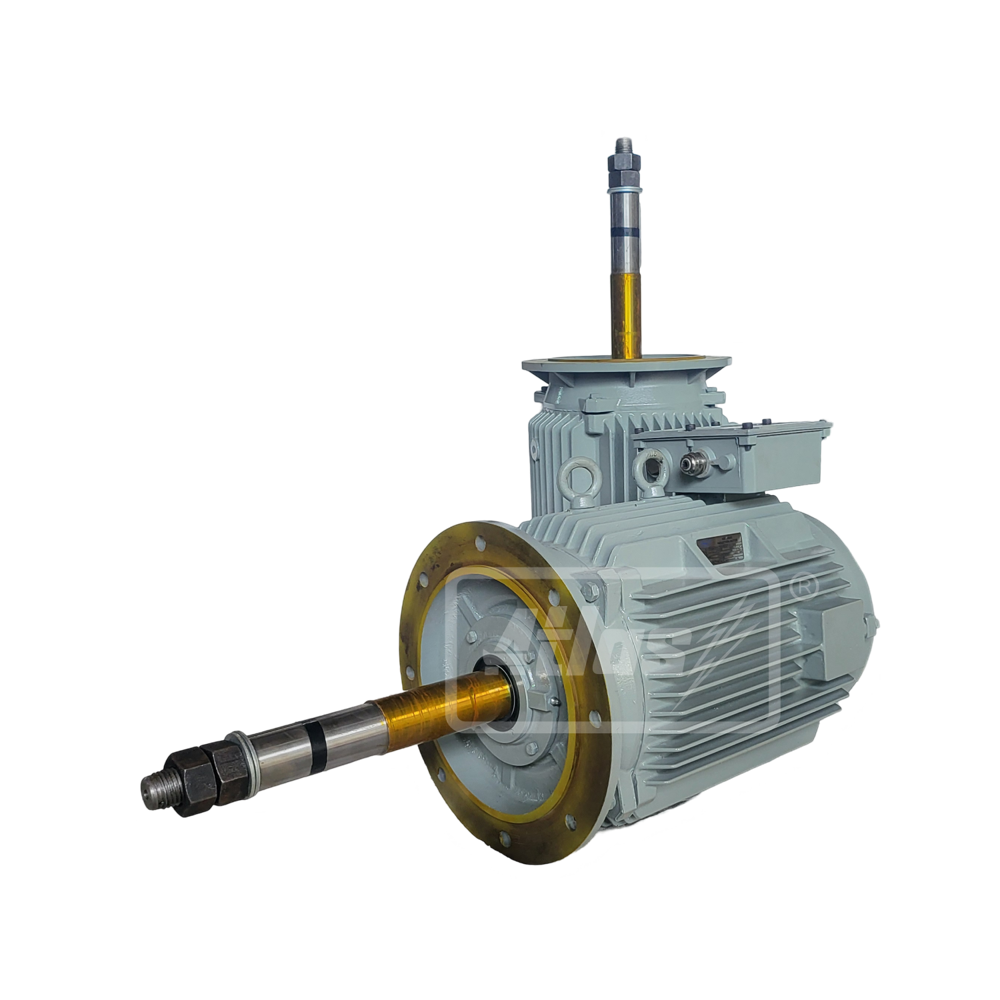

Cooling Tower Motor 12.5 HP 9.3 KW 1000 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 12.5 HP 9.3 KW 1000 RPM

Name: Cooling Tower Motor 12.5 HP 9.3 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 48900.0 INR
Availability: InStock

Price 48900.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 12.5 HP 9.3 KW 1000 RPM Specification

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Features
Reliable operation, High efficiency, Rugged construction

Cooling Method
Fan Cooled

Standard
IS 325

Current Type
AC

Motor Type
Squirrel Cage Induction Motor

Rated Voltage
415 V

Bearing Type
Deep Groove Ball Bearing

Noise Level
Low

Voltage
415 V

Starting Type
Direct On Line (DOL)

Torque
High Starting Torque

Ambient Temperature
-15C to 50C

Poles Number
6

Power Rating
9.3 KW

Horse Power
12.5 HP

Efficacy
High Efficiency

Rated Frequency
50 Hz

Product Type
Electric Motor

Output Power
9.3 KW

Frequency (MHz)
50 Hz

Protect Feature
IP55

Phase
Three Phase

Speed
1000 RPM

Power
12.5 HP

Color
Grey

Dimension (L*W*H)
Standard Frame Size

Weight
Approx. 100 kg

Shaft Diameter
Standard

Mounting Type
Foot cum Flange Mounted

IP Rating
IP55

Application
Industrial Machines, Pumps, Compressors, Fans

Insulation Class
Class F

Alignment
Horizontal Mounting

Lubrication
Grease Packed

Altitude
Up to 1000m above sea level

Frame Material
Cast Iron

Operating Duty
S1 (Continuous Duty)

Cooling Tower Motor 12.5 HP 9.3 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 12.5 HP 9.3 KW 1000 RPM

The Atlas Cooling Tower Motor, from AMIT ELECTRICALS, emerges as a distinguished choice for industrial users seeking reliability and high performance. This featured 12.5 HP (9.3 KW), 1000 RPM motor is engineered with a robust cast iron frame and boasts IP55 protection, delivering quiet, continuous duty under challenging conditions. Its dominant high starting torque, sterling efficiency, and advanced insulation class F distinguish it in its category. Designed for pumps, compressors, and humid environments, it combines rugged construction with an economical promotion and the lowest price guarantee.

Enhanced Features and Industrial Utility

The 12.5 HP 9.3 KW 1000 RPM cooling tower motor is equipped with extra features like an extended stainless steel shaft for superior fan fitting, double-shielded bearings pre-lubricated for longevity, and a totally enclosed, fan-cooled design for rugged environments. This motor is predominantly used with industrial machinery, pumps, compressors, and cooling tower fans, supporting continuous (S1) operations. Its horizontal alignment and high efficiency suit demanding usage types, ensuring smooth, reliable, and distinguished performance every cycle.

Certifications, Payments, and Export Logistics

Certified to IS 325 standards and IP55 protection, the 12.5 HP 9.3 KW 1000 RPM motor is ideal for both domestic and export markets. AMIT ELECTRICALS ensures secure packaging and reliable transportation methods to maintain product integrity. Flexible payment terms and efficient supply ability further support seamless transactions. The motor's proven certifications and compliance allow it to compete in global export markets, making it a trusted solution for high-value industrial installations and safe international delivery.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 12.5 HP 9.3 KW 1000 RPM:

Q: How does the 12.5 HP 9.3 KW 1000 RPM Cooling Tower Motor benefit industrial applications?

A: The motor provides high starting torque and consistent efficiency, making it an ideal solution for continuous operation in pumps, compressors, cooling towers, and other industrial fans under demanding environments.

Q: What features distinguish the Atlas Cooling Tower Motor from others?

A: It features a robust cast iron frame, fully enclosed (TEFC) design, IP55 protection, class F insulation, double-shielded bearings with pre-lubrication, and a corrosion-resistant, extended stainless steel shaft for fan fitting.

Q: Where can the Atlas Cooling Tower Motor be installed and used?

A: Primarily intended for high humidity industrial settings, such as HVAC systems, textile, and plastic machinery, it supports both foot and flange mounting for versatile alignment and placement.

Q: What certifications and standards does this motor comply with?

A: The motor adheres to IS 325 standards and features IP55 protection, ensuring safe and reliable operation even in harsh and moisture-prone environments.

Q: How is the motor supplied and exported to customers?

A: AMIT ELECTRICALS ensures quality packaging and secure transportation for both domestic and international deliveries, with flexible payment terms and the capacity to meet varied market supply demands.

Q: What is the usage process for maintaining the motor's reliability?

A: Routine inspection of bearings and lubrication, along with maintaining proper alignment and ensuring electrical safety, prolongs the life and efficiency of the motor in continuous industrial use.
