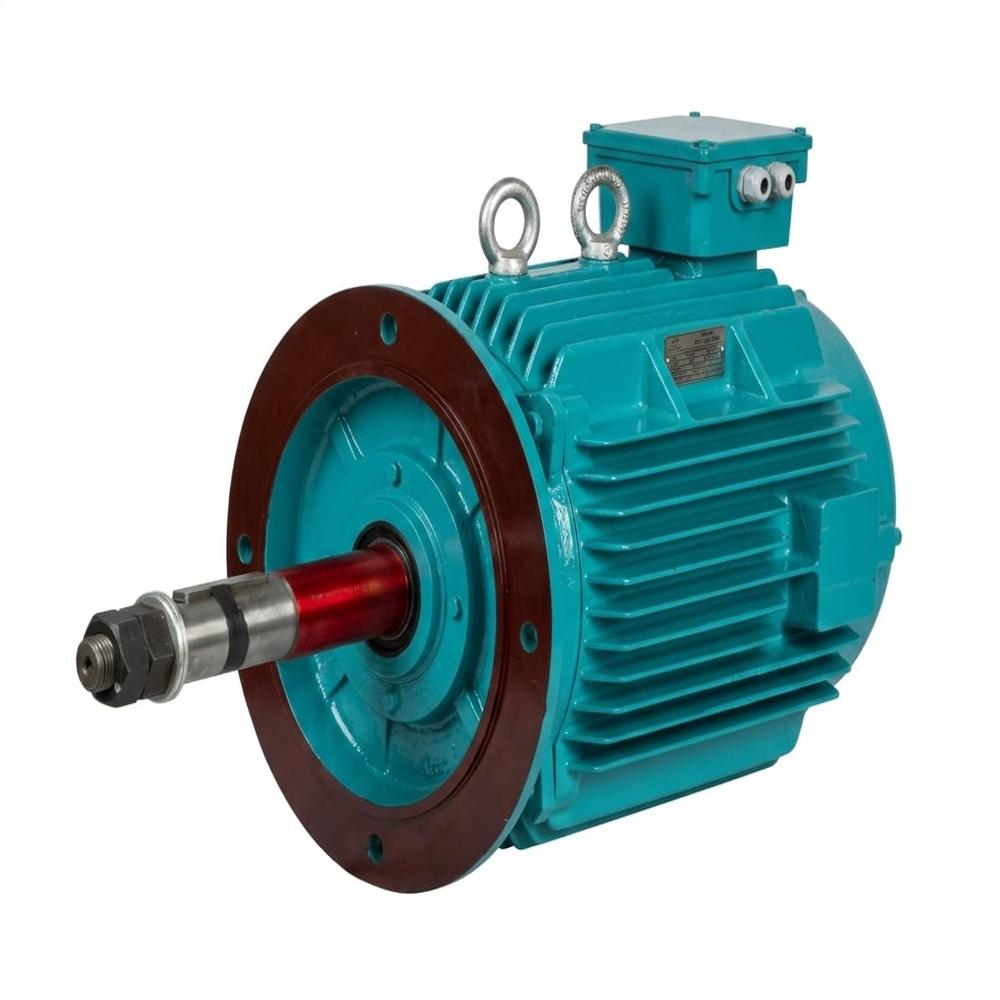

Cooling Tower Motor 15 HP 11 KW 500 RPM

Name: Cooling Tower Motor 15 HP 11 KW 500 RPM
Brand: AMIT ELECTRICALS
Price: 113950.0 INR
Availability: InStock

Price 113950.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 15 HP 11 KW 500 RPM Specification

Features
Long Life, Corrosion Resistant, Energy Efficient

Bearing Type
Deep Groove Ball Bearing

Power Rating
11 kW

Efficacy
IE2 / IE3 (on request)

Current Type
AC

Starting Type
DOL / Star-Delta

Poles Number
Other

Motor Type
Squirrel Cage Induction Motor

Torque
210 Nm (Approx.)

Rated Frequency
50 Hz

Voltage
415 V

Sealed Type
Seal Protected

Noise Level
Below 65 dB

Rated Voltage
415 V

Horse Power
15 HP

Ambient Temperature
-20C to +50C

Cooling Method
Air Cooled

Standard
IS: 325 / IEC 60034

Product Type
Electric Motor

Output Power
15 HP

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
500 RPM

Power
11 kW

Color
Grey

Dimension (L*W*H)
Custom/As per Design

Weight
Approx. 120 kg

Shaft Diameter
42 mm (Approx.)

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Vibration Level
Within Permissible Limit as per IS 12075

Duty Type
S1 (Continuous Duty)

Thermal Protection
PTC Thermistor (Optional)

Frame Size
180L / 200L (As Per Manufacturer)

Application
Industrial Drives, Crushers, Conveyors, Pumps

Service Factor
1.15

Regulatory Approval
CE, ISI Certified

Altitude
Up to 1000 m

Insulation Class
Class F

Cooling Tower Motor 15 HP 11 KW 500 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 15 HP 11 KW 500 RPM

The 15 HP 11 KW 500 RPM Cooling Tower Motor by AMIT ELECTRICALS is a must-have for industrial operations demanding reliability and efficiency. This brilliant Atlas motor, celebrated for its robust cast iron frame and corrosion resistance, features Class F insulation, IP55 protection, and IE2/IE3 energy efficiency (on request). Perfect for continuous duty (S1) in demanding environments such as industrial drives, crushers, conveyors, and pumps, it offers magnificent savings thanks to its energy-conscious design. Instant savings are available, but act fast-this offer is ending soon! Exceptionally engineered, it ensures long life and premium performance, CE and ISI certified.

Applications and Suitability for 15 HP 11 KW 500 RPM Motor

This magnificent Cooling Tower Motor is expertly crafted for specialized industrial settings, including cooling tower fan operations in high humidity environments like HVAC, textile, and plastic machinery plants. The motor's robust design ensures superb performance in crushers, conveyors, and pumping stations. With its adaptable mounting options and corrosion-resistant features, it is perfectly suited for demanding locations with up to 90% relative humidity-providing users with reliable and celebrated operational excellence in every application.

Valuation and Supply Details for the 15 HP 11 KW Motor

Customers seeking premium quality will find transparent valuation, competitive pricing, and reliable packaging with this motor. AMIT ELECTRICALS ensures secure packaging for each unit, safeguarding your investment. Payment terms are flexible, supporting a range of methods for client convenience. With ample supply ability, the product ships promptly from the designated FOB port, ensuring efficient delivery. The company's commitment to superior standards is evident in every premium shipment-making this a trusted solution for industrial needs.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 15 HP 11 KW 500 RPM:

Q: How can I use the 15 HP 11 KW 500 RPM Cooling Tower Motor in my facility?

A: This motor is primarily designed for cooling tower fan operations but is also suitable for industrial drives, wide conveyors, various pumps, and other humidity-prone machinery. Its robust construction ensures versatile use in environments requiring continuous duty and high reliability.

Q: What makes this motor celebrated and reliable for industrial applications?

A: Featuring a corrosion-resistant, robust cast iron frame and IP55 protection, this motor is engineered for longevity. It meets premium regulatory standards-CE and ISI certified-and offers energy efficiency (IE2/IE3 on request), making it a celebrated choice in demanding industrial operations.

Q: When should I consider using the optional PTC thermistor or T.O.P. switch?

A: Use the optional PTC thermistor or Thermal Overload Protection (T.O.P. switch) when extra thermal security is required for your system, especially in continuously active environments or critical operations where over-temperature could pose risks.

Q: Where can this motor be installed and used most effectively?

A: It is best installed in locations such as industrial HVAC facilities, textile and plastic machinery units, cooling towers, and other high-humidity industrial settings. Its IP55 enclosure and corrosion-resistant shaft make it suitable for challenging atmospheres.

Q: What is the process for ordering and receiving the motor?

A: After placing your order with AMIT ELECTRICALS, the motor is securely packaged to protect against any transit risks. Payment terms are discussed and agreed upon during procurement, and supply is prompt due to the company's significant inventory capacity. Shipments are arranged from the specified FOB port, ensuring timely delivery.

Q: How does the motor's long life and smooth finishing benefit users?

A: Precision engineering and superior finishing reduce wear and tear over time. The use of double shielded bearings, stainless steel shaft components, and high-grade insulation ensure a long operational life, minimizing maintenance and repair downtime for end users.
