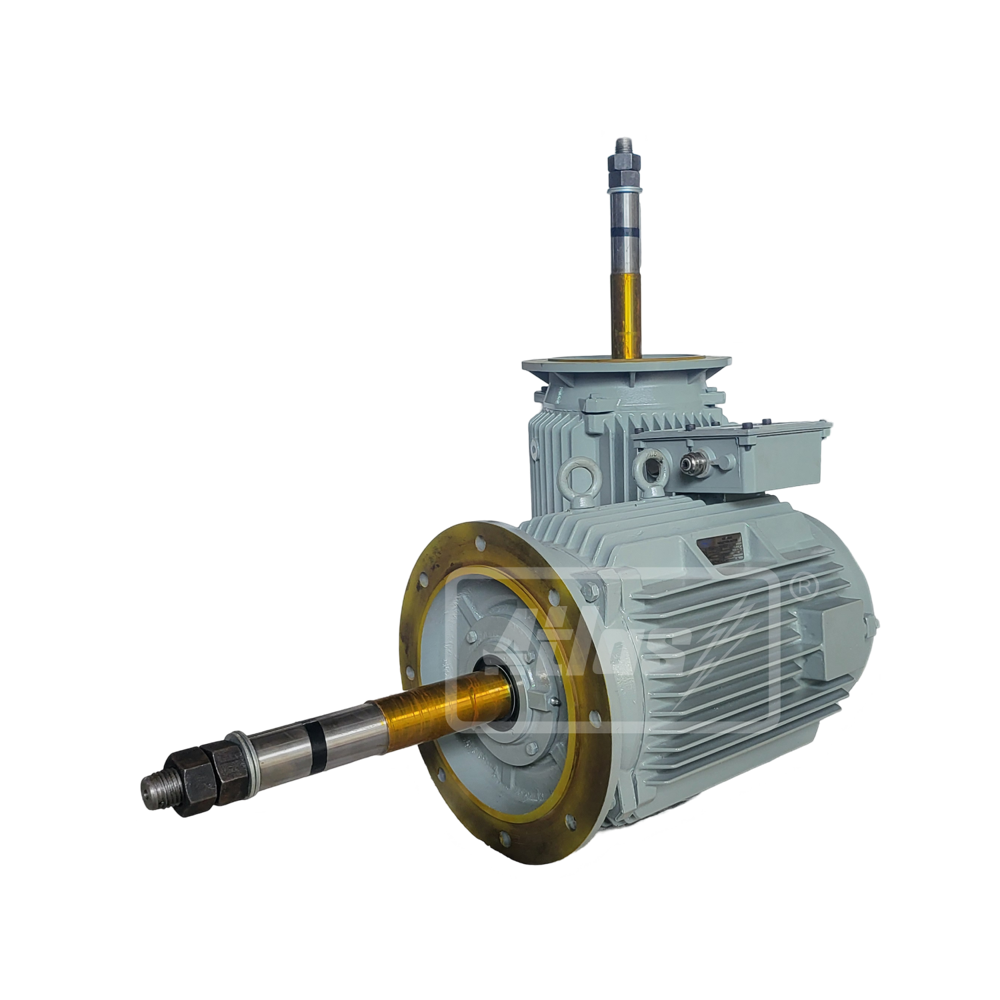

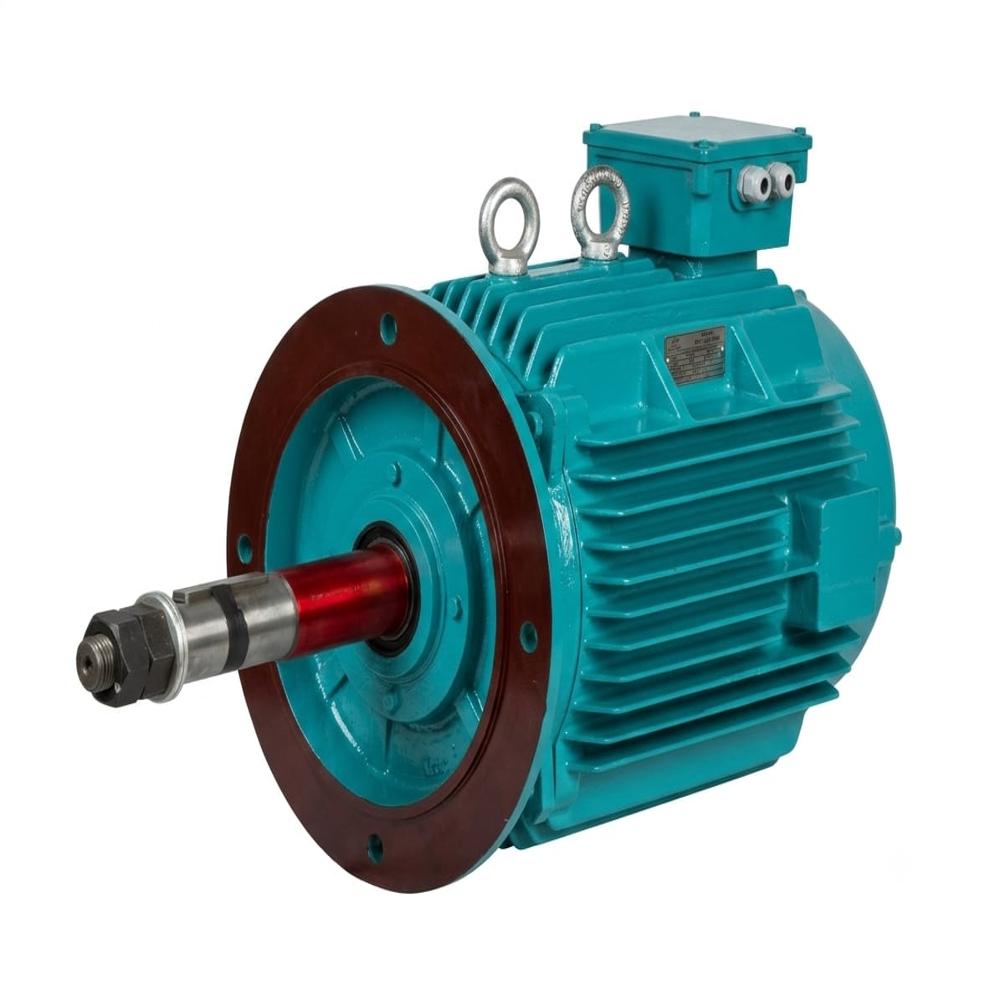

Cooling Tower Mortor 10 HP 7.5 KW 1000 RPM

Send Inquiry

Request To Call Back

Cooling Tower Mortor 10 HP 7.5 KW 1000 RPM

Name: Cooling Tower Mortor 10 HP 7.5 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 46200.0 INR
Availability: InStock

Price 46200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Mortor 10 HP 7.5 KW 1000 RPM Specification

Cooling Method
External Fan Cooling

Current Type
AC

Poles Number
Other

Rated Voltage
415 V

Starting Type
Direct On Line (DOL)

Ambient Temperature
Up to 50C

Noise Level
70 dB

Rated Frequency
50 Hz

Torque
71.66 Nm

Efficacy
IE2 High Efficiency

Horse Power
10 HP

Standard
IS 325 / IEC 60034

Motor Type
AC Induction Motor

Bearing Type
Deep Groove Ball Bearing

Features
Low Vibration, High Efficiency, Long Life, Corrosion Resistant

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Power Rating
7.5 kW

Voltage
415 V

Product Type
Electric Motor

Output Power
7.5 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55

Phase
Three Phase

Speed
1000 RPM

Power
10 HP

Color
Grey

Dimension (L*W*H)
Customized / Standard

Weight
Approximately 85 kg

Shaft Diameter
42 mm

Mounting Type
Foot / Flange Mounting

IP Rating
IP55

Thermal Protection
Available on Request

Voltage Tolerance
10%

Duty Cycle
S1 (Continuous)

Frame Size
160M

Relative Humidity
90%

Application
Industrial, Pumps, Blowers, Fans, Compressors, Cranes

Material
Cast Iron

Rotor Type
Squirrel Cage

Connection Type
Star (Y) / Delta ()

Standards Compliance
IS/IEC

Insulation Class
Class F

Terminal Box Position
Top

Painting
Powder Coated

Frequency Tolerance
5%

Altitude
Up to 1000m above sea level

Lubrication
Grease Packed

Flywheel
Optional

Cooling Tower Mortor 10 HP 7.5 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Mortor 10 HP 7.5 KW 1000 RPM

Discover the popular Atlas Cooling Tower Motor from AMIT ELECTRICALS, a dominant force in industrial cooling solutions. This featured 10 HP (7.5 kW) motor operates at 1000 RPM with a resplendent combination of high efficiency (IE2), IP55 protection, and robust cast iron construction. Designed to tolerate up to 90% humidity and continuous duty cycle (S1), it is perfect for demanding environments. Explore unprecedented power with its corrosion-resistant stainless steel shaft, precise performance, and longevity-making it ideal for compressors, blowers, fans, pumps, and cranes.

Prime Applications and Reliable Adaptability

The 10 HP 7.5 KW 1000 RPM motor excels in diverse industrial settings, from textile machinery and HVAC systems to powerful pumps, blowers, and cranes. Its application surface covers high-humidity zones, ensuring resplendent performance where reliability is paramount. With a totally enclosed, external fan-cooled structure and foot or flange mounting, this motor seamlessly adapts to cooling towers or other demanding processes, boasting long-lasting operation and minimal maintenance for continuous productivity.

Certifications, Port Options & Supply Excellence

Benefit from a premium motor that complies with IS 325 and IEC 60034 standards, certifying superior quality and safety. Our exchange and delivery process is streamlined, with exports available from prominent FOB ports in India. AMIT ELECTRICALS ensures robust supply ability, meeting bulk demands with reliable timelines. Get an accurate estimate for your project and experience seamless international or domestic procurement of this dominant cooling tower motor solution.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 10 HP 7.5 KW 1000 RPM:

Q: How is the 10 HP 7.5 KW 1000 RPM Cooling Tower Motor suited for high humidity environments?

A: The motor is meticulously engineered for up to 90% relative humidity, using corrosion-resistant stainless steel and a totally enclosed (TEFC/TESC) design, ensuring dependable operation in moisture-prone industrial settings.

Q: What applications can benefit from using this motor?

A: This motor is ideal for cooling tower fans, pumps, compressors, blowers, cranes, textile machinery, HVAC equipment, and plastic manufacturing environments requiring continuous, high-efficiency performance.

Q: What certifications does this cooling tower motor hold?

A: The Atlas Cooling Tower Motor complies with IS 325 and IEC 60034 standards, ensuring adherence to international quality, safety, and efficiency requirements.

Q: Where is the product shipped from, and what are the supply capabilities?

A: Exports are managed through major Indian FOB ports. AMIT ELECTRICALS maintains robust supply capacity, supporting both small and large-scale industrial projects with prompt fulfillment.

Q: What are the dominant features that set this motor apart?

A: Outstanding features include IE2 high efficiency, deep groove ball bearings, IP55 protection, low vibration, corrosion resistance, extended stainless steel shaft, thermal overload protection (on request), and a long service lifespan.

Q: How does the order and exchange process work for this motor?

A: Once you provide your specifications, AMIT ELECTRICALS will estimate lead times and costs, facilitating a smooth procurement and exchange process for local or international clients.
