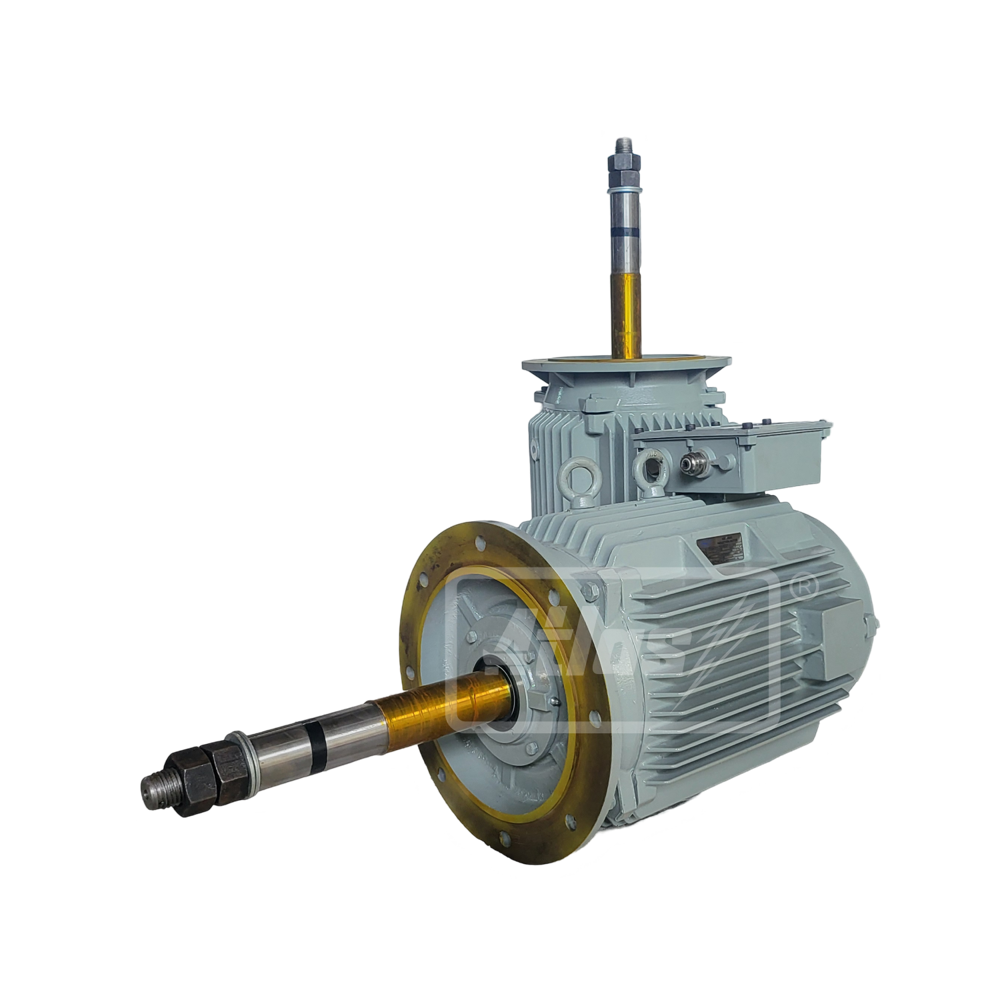

Cooling Tower Motor 15 HP 11 KW 750 RPM

Name: Cooling Tower Motor 15 HP 11 KW 750 RPM
Brand: AMIT ELECTRICALS
Price: 88650.0 INR
Availability: InStock

Price 88650.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 15 HP 11 KW 750 RPM Specification

Sealed Type
Shaft Sealed

Rated Voltage
415 V

Torque
140 Nm (approx)

Cooling Method
IC411 (Surface Cooling with External Fan)

Horse Power
15 HP

Bearing Type
Deep Groove Ball Bearings

Features
Robust Construction, Low Maintenance, Energy Efficient

Power Rating
11 kW

Current Type
AC

Noise Level
Below 75 dB(A)

Motor Type
Squirrel Cage Induction Motor

Ambient Temperature
-20C to +50C

Voltage
415 V

Poles Number
Other

Starting Type
DOL

Efficacy
IE2

Standard
IS:325 / IEC 60034

Rated Frequency
50 Hz

Product Type
Three Phase Electric Motor

Output Power
11 KW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
750 RPM

Power
15 HP

Color
Grey

Dimension (L*W*H)
650 x 370 x 400 mm (approx)

Weight
125 kg (approx)

Shaft Diameter
48 mm (approx)

Mounting Type
Foot / Flange Mounted

Insulation Class
F

Connection Type
Star-Delta Connection for Starting

Enclosure
TEFC (Totally Enclosed Fan Cooled)

Frequency Tolerance
5%

Core Material
High Grade Silicon Steel

Service Factor
1.15

Application
Pumps, Compressors, Elevators, Fans, Industrial Machines

Duty
S1 (Continuous Duty)

Vibration Level
In Accordance with IS: 12075

Voltage Tolerance
10%

Paint Type
Epoxy Coated for Corrosion Resistance

Lubrication
Grease Lubricated Bearings

Rotor Type
Aluminium Die Cast

Frame Size
180L

Stator Winding
F Class Copper Wound

Cooling Tower Motor 15 HP 11 KW 750 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 15 HP 11 KW 750 RPM

Unveil the unrivaled power of the Atlas Cooling Tower Motor (15 HP, 11 KW, 750 RPM)-a must-have for demanding industrial applications. With dazzling performance and valiant durability, this hot deal motor features a robust cast iron frame, high-grade silicon steel core, and F class copper-wound stator, ensuring energy efficiency and continuous operation. Designed for Pumps, Compressors, Fans, and more, its TEFC enclosure and IP55 rating deliver superior corrosion resistance even in the harshest environments. Add to cart now and experience elite reliability.

Versatile Performance & Superior Material Features

The 15 HP 11 KW 750 RPM motor is tailored for cooling tower fan duties, excelling in high humidity and rugged industrial environments such as HVAC, textile, and plastic machinery. Its application method supports flange mounting and continuous S1 duty, fortified by a stainless-steel shaft and epoxy coating for steadfast corrosion resistance. Enjoy primary competitive advantages like low maintenance, exceptional energy efficiency, and smooth operation defined by its deep-groove ball bearings and precision-engineered, premium components.

Efficient Delivery, Domestic Coverage & Sample Options

Enjoy premium transport services when ordering the 15 HP 11 KW 750 RPM motor across the main domestic market. Secure packaging, utilizing sturdy materials, ensures each motor arrives in flawless condition. Samples are available upon request to help you estimate suitability prior to large-scale procurement. Experience seamless logistics support and careful handling-with every order, our team focuses on efficient, reliable delivery and post-sales assistance to maximize your satisfaction and peace of mind.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 15 HP 11 KW 750 RPM:

Q: How is the Atlas Cooling Tower Motor typically installed in industrial settings?

A: The Atlas Cooling Tower Motor is most commonly mounted using a flange (B5) configuration, allowing for easy and secure integration with cooling tower fans. Foot mounting and other arrangements are also available as per installation needs.

Q: What are the main material features that enhance durability and reliability?

A: This motor is built with a robust cast iron frame, a high-grade silicon steel core, and F class copper stator windings. It features an epoxy-coated finish, stainless steel shaft, and precision double-shielded bearings for extended life and corrosion resistance.

Q: Where can this motor be effectively utilized?

A: It's ideal for cooling tower operation, compressors, pumps, industrial HVAC, textile machinery, and plastic machinery-especially in environments with high humidity thanks to its IP55 protection and fully enclosed construction.

Q: How is the product packaged and delivered to ensure safety?

A: Each unit is securely packaged using high-quality materials for robust transit protection. Premium transport services are engaged to safeguard the motor from damage and deliver it promptly across domestic markets.

Q: What are the primary advantages of choosing this motor over others?

A: Key advantages include outstanding energy efficiency (IE2), low maintenance needs, strong protection against moisture and corrosion, long operational life, and smooth vibration-free performance as per IS and IEC standards.

Q: Is there a process for obtaining sample units before full purchase?

A: Yes, sample units are available upon request. This allows you to evaluate product compatibility with your system before placing a larger order, helping you make informed procurement decisions.
