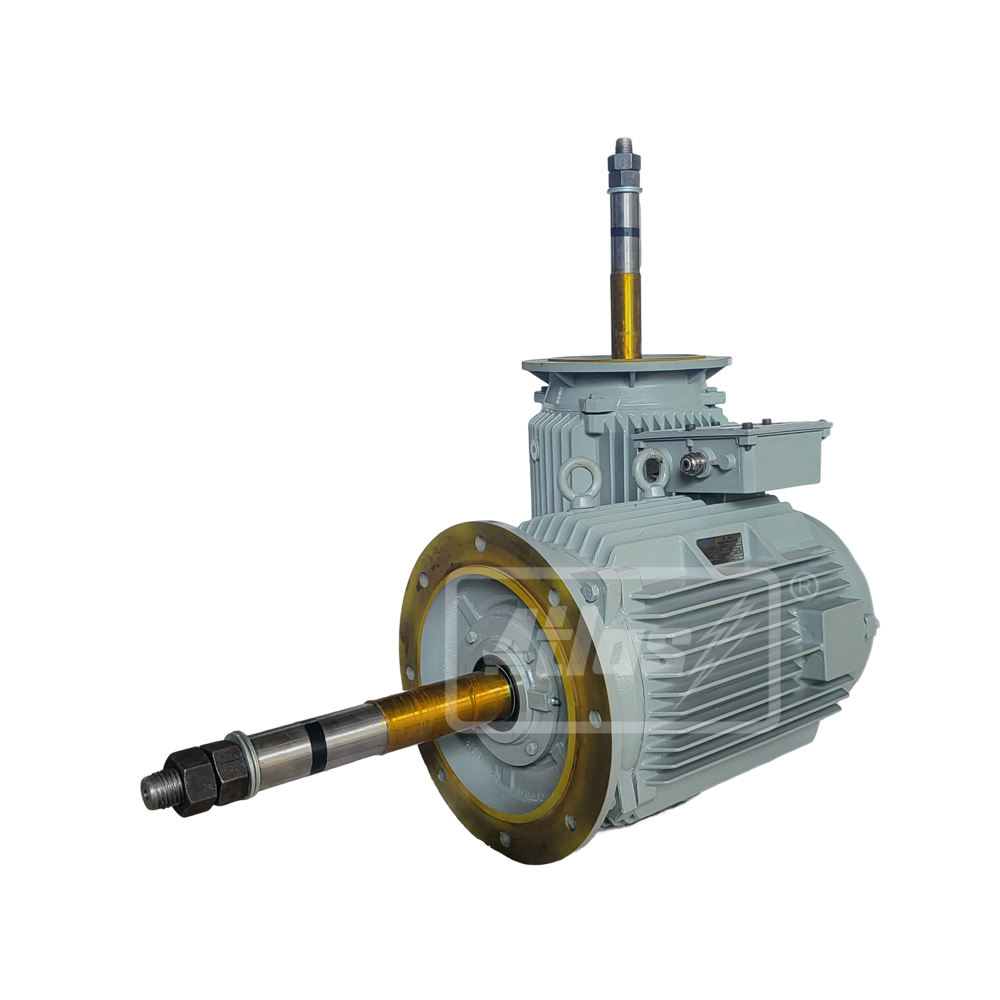

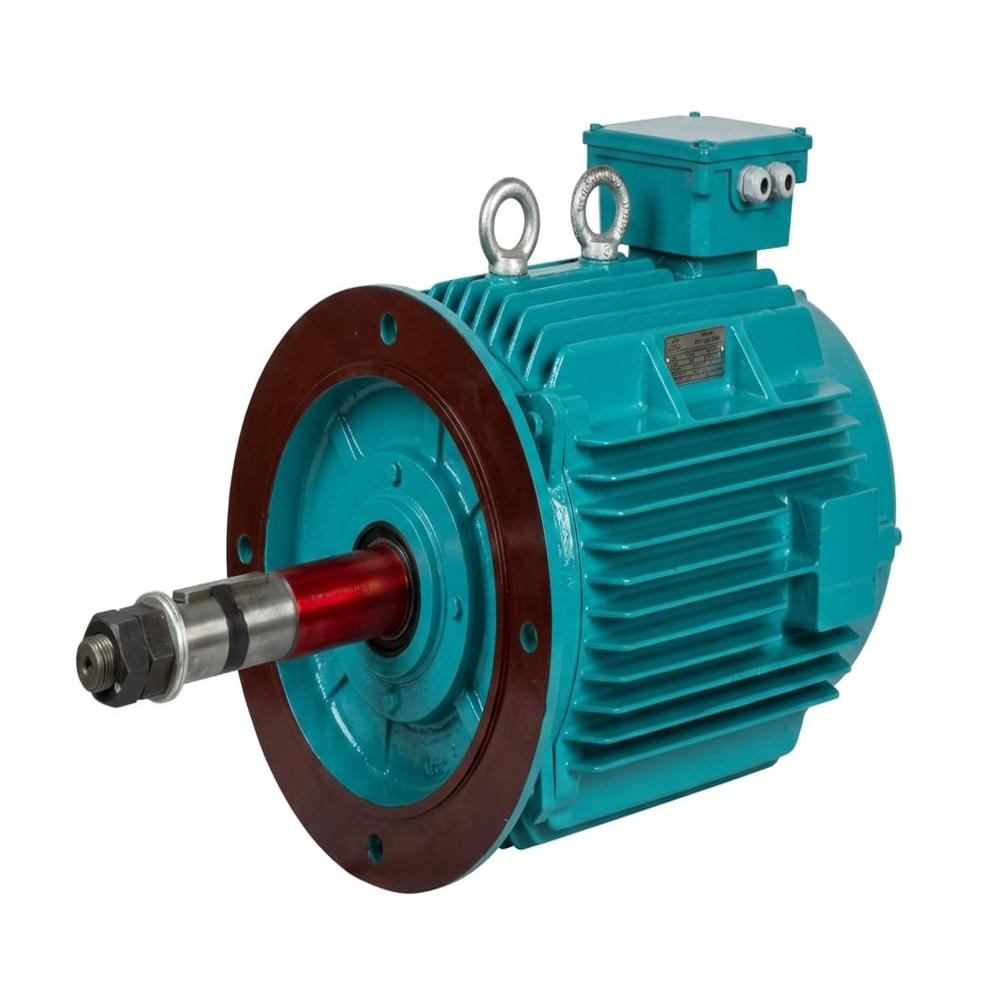

Cooling Tower Motor 20 HP 15 KW 500 RPM

Name: Cooling Tower Motor 20 HP 15 KW 500 RPM
Brand: AMIT ELECTRICALS
Price: 148500.0 INR
Availability: InStock

Price 148500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 20 HP 15 KW 500 RPM Specification

Motor Type
Squirrel Cage Induction Motor

Poles Number
12

Efficacy
IE3 Premium Efficiency

Current Type
AC

Features
High Starting Torque, Low Noise, High Efficiency, Low Maintenance

Ambient Temperature
-20C to +50C

Rated Frequency
50 Hz

Rated Voltage
415 V

Power Rating
15 kW

Bearing Type
Double Sealed Ball Bearing

Voltage
415 V

Sealed Type
Sealed Bearing

Standard
IEC 60034-30

Cooling Method
IC 411 (Surface Cooled)

Starting Type
DOL/Star Delta

Horse Power
20 HP

Noise Level
<75 dBA

Torque
286.5 Nm (approx)

Product Type
Electric Induction Motor

Output Power
15 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
500 RPM

Power
20 HP

Color
Grey

Dimension (L*W*H)
As per manufacturer specification

Weight
Approx. 180 kg

Shaft Diameter
55 mm (approx)

Mounting Type
Flange Mounted/B3

IP Rating
IP55

Application
Industrial Application, Water Pumps, Compressors, Conveyors

Paint Finish
Epoxy

Rotation Direction
Bi-Directional

Compliance
IS 325, IEC 60034

Lubrication
Grease Packed for Life

Terminal Box Position
Top

Rotor Type
Die Cast Aluminum

Service Factor
1.15

Winding Type
Copper

Duty Cycle
S1 Continuous

Vibration Level
Conforms to IS Standards

Mounting Holes
Standardized as per IEC

Frame Size
180L

Protection Method
TEFC (Totally Enclosed Fan Cooled)

Insulation Class
Class F

Cooling Tower Motor 20 HP 15 KW 500 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 20 HP 15 KW 500 RPM

Unleash invincible power with the Atlas 20 HP 15 KW 500 RPM Cooling Tower Motor, a special find from AMIT ELECTRICALS. Crafted with a prodigious cast iron frame, bi-directional drive, and sealed ball bearings, this valiant motor excels in high humidity conditions, industrial HVAC, and water pump applications. Compliance with IS 325 and IEC 60034 guarantees supreme reliability. Epoxy paint and IP55 protection ensure longevity. Grab yours now for uninterrupted operation, low maintenance, and premium IE3 efficiency-an essential companion for demanding industrial challenges.

Advantages & Material Features of 20 HP 15 KW 500 RPM Motor

This 20 HP Cooling Tower Motor stands out with its robust cast iron frame, stainless steel shaft, double-sealed ball bearings, and Class F insulation. Its key advantage lies in superior durability, high starting torque, and exceptional efficiency under continuous (S1) duty. Designed for industrial cooling towers, water pumps, compressors, and conveyors, its corrosion-protected structure and IP55 enclosure make it a resilient choice in demanding and high-moisture environments.

Export Markets, Supply Ability & Premium Packaging Details

AMIT ELECTRICALS proudly ships Atlas 20 HP 15 KW 500 RPM motors to a range of global markets, including Asia, Africa, and the Middle East. Each motor is carefully dispatched in premium, export-grade packaging to guarantee transit safety. With substantial monthly supply capacity and on-time delivery, customers can count on consistent stock availability. Secure, reliable packaging ensures each order arrives in prime condition, ready for industrial deployment worldwide.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 20 HP 15 KW 500 RPM:

Q: How does the Atlas 20 HP Cooling Tower Motor ensure reliable operation in high humidity environments?

A: The motor is built with a robust cast iron frame, stainless steel shaft, and double-sealed bearings, providing excellent corrosion protection and moisture resistance to thrive in high humidity areas like industrial HVAC and cooling towers.

Q: What are the material features that contribute to the durability of this motor?

A: Key features include a cast iron frame, stainless steel shaft, Class F insulation, and grease-packed-for-life double-sealed ball bearings. These ensure long life, minimal maintenance, and resistance to wear under demanding industrial use.

Q: Where can this 20 HP 15 KW 500 RPM motor be used?

A: Ideal applications span across water pumps, compressors, conveyors, textile machinery, and plastic machinery, with a special design for cooling tower fan operation in humid industrial surroundings.

Q: What is the process for installing the Atlas Cooling Tower Motor?

A: Installation is straightforward thanks to standardized IEC mounting holes and multiple options, such as flange mounting (B5) or foot mounting (B3), allowing easy integration into new or existing systems with minimal modifications.

Q: How is the product packaged and dispatched for export markets?

A: Each motor is securely packaged using export-quality materials to prevent damage during shipment. Orders are dispatched promptly to international markets, ensuring motors reach customers safely and in premium condition.

Q: What is the primary benefit of using this motor for continuous duty cycles?

A: The S1 continuous duty rating and high efficiency (IE3) mean the motor is built for uninterrupted, energy-saving operation, reducing downtime and ensuring consistent performance in demanding environments.
