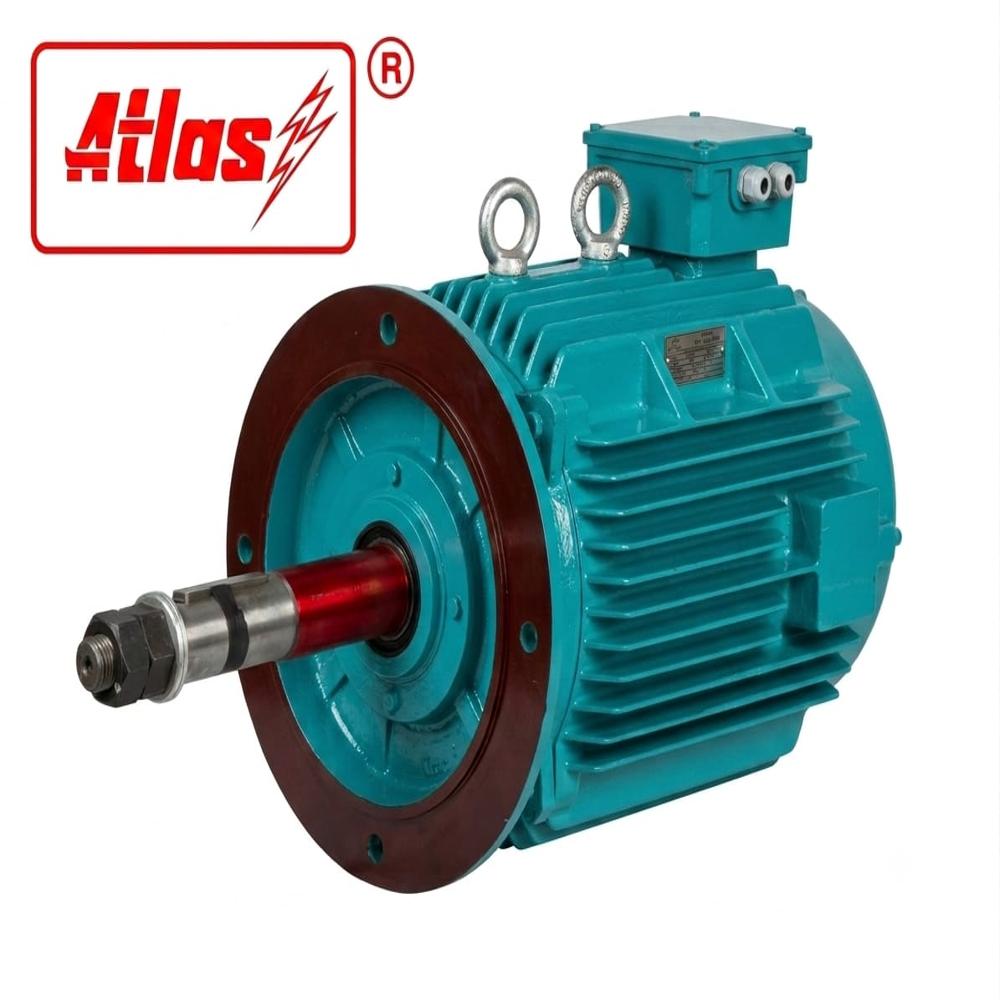

Cooling Tower Motor 5.0 HP 3.7 KW 1000 RPM

Name: Cooling Tower Motor 5.0 HP 3.7 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 23000.0 INR
Availability: InStock

Price 23000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 5.0 HP 3.7 KW 1000 RPM Specification

Horse Power
5.0 HP

Bearing Type
Double sealed ball bearing

Features
Low maintenance, energy efficient, robust design

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Motor Type
Squirrel Cage Induction Motor

Efficacy
High efficiency

Noise Level
<75 dB

Rated Frequency
50 Hz

Starting Type
Direct On Line (DOL)

Torque
35.4 Nm

Ambient Temperature
-15C to +40C

Power Rating
3.7 kW

Current Type
AC

Standard
IS 325 / IEC 60034

Poles Number
6

Rated Voltage
415 V

Cooling Method
Fan Cooled

Voltage
415 V

Product Type
Electric Motor

Output Power
3.7 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55

Phase
Three Phase

Speed
1000 RPM

Power
5.0 HP

Color
Grey

Dimension (L*W*H)
Standard as per model

Weight
Approx. 50-70 kg

Shaft Diameter
38 mm (approx.)

Mounting Type
Foot/Flange Mounting

IP Rating
IP55

Complies With
CE Certified, ISO 9001:2015

Duty Cycle
S1 (Continuous Duty)

Bearings Brand
SKF/NTN/FAG or equivalent

Efficiency Class
IE2 or IE3 (as per customer requirement)

Vibration Level
As per IS/IEC 60034-14

Insulation Class
F

Temperature Rise
Within permissible limits as per IS 325

Altitude
Up to 1000 meters above sea level

Service Factor
1.0

Frame Size
132M

Paint Finish
Epoxy enamel

Cooling Tower Motor 5.0 HP 3.7 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 5.0 HP 3.7 KW 1000 RPM

Experience the highlighted power and durability of the Atlas Cooling Tower Motor by AMIT ELECTRICALS, a new release engineered for matchless performance in cooling tower fans. This 5.0 HP, 3.7 KW, 1000 RPM motor is built with a lavish cast iron frame and features insulation Class F for continuous S1 duty cycle. With towering efficiency in demanding environments, its totally enclosed fan-cooled (TEFC) design, double-sealed bearings, IP55 protection, and CE/ISO certifications promise robustness. Benefit from energy-saving IE2/IE3 special rate options, ensuring longevity and low maintenance in high-humidity conditions.

Exceptional Application & Surface Utility

The 5.0 HP 3.7 KW 1000 RPM Atlas Cooling Tower Motor is specially designed for critical applications such as industrial HVAC, textile machinery, and plastic machinery-these environments often demand reliable operation in high-moisture settings. Its robust construction and premium insulation offer significant advantage, providing uninterrupted performance on surfaces exposed to humidity. The corrosion-protected, stainless-steel shaft and sealed bearings ensure the motor excels on cooling towers, delivering reliability and operational stability in matchless conditions.

Sample Policy, Packaging & Global Delivery

Our sample policy offers special rates for those interested in evaluating the motor prior to bulk purchase. Each unit is delivered in strong, export-grade packaging that ensures secure transit. With streamlined logistics, our products are reliably shipped, and we currently export across key international markets including Africa, Middle East, Eastern Europe, and South America. Every delivery is backed by professional logistics partners, ensuring the product reaches you swiftly and in pristine condition.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 5.0 HP 3.7 KW 1000 RPM:

Q: How does the Atlas Cooling Tower Motor benefit cooling tower operations?

A: The Atlas Cooling Tower Motor offers high efficiency and durability, specifically tailored for use in cooling tower fans and high-humidity industrial environments, ensuring extended life and reduced maintenance.

Q: What process is followed to ensure product quality and compliance?

A: Each motor is manufactured following CE and ISO 9001:2015 standards, with thorough testing for insulation, protection, efficiency, and vibration levels as per IS/IEC 60034-14, ensuring matchless reliability.

Q: When should I choose the IE2 or IE3 efficiency class option?

A: IE2 and IE3 efficiency classes are offered as per customer requirements-select IE3 for enhanced energy savings when long-term operating costs are a priority. IE2 is reliable for standard efficiency needs.

Q: Where can this motor be installed for best performance?

A: Optimal application sites include cooling towers for industrial HVAC systems, textile and plastic machinery, and any locations requiring robust operation under high-moisture or humidity conditions.

Q: What is the recommended usage process for installation?

A: For best results, install the motor using the appropriate foot or flange mounting as required by your machinery. Ensure correct alignment and secure electrical connections for continuous duty (S1) operation.

Q: How is the product packaged and delivered?

A: The Atlas Cooling Tower Motor is packaged in secure, export-standard boxes to prevent damage. We coordinate logistics for prompt and safe delivery to both domestic and international clients.
