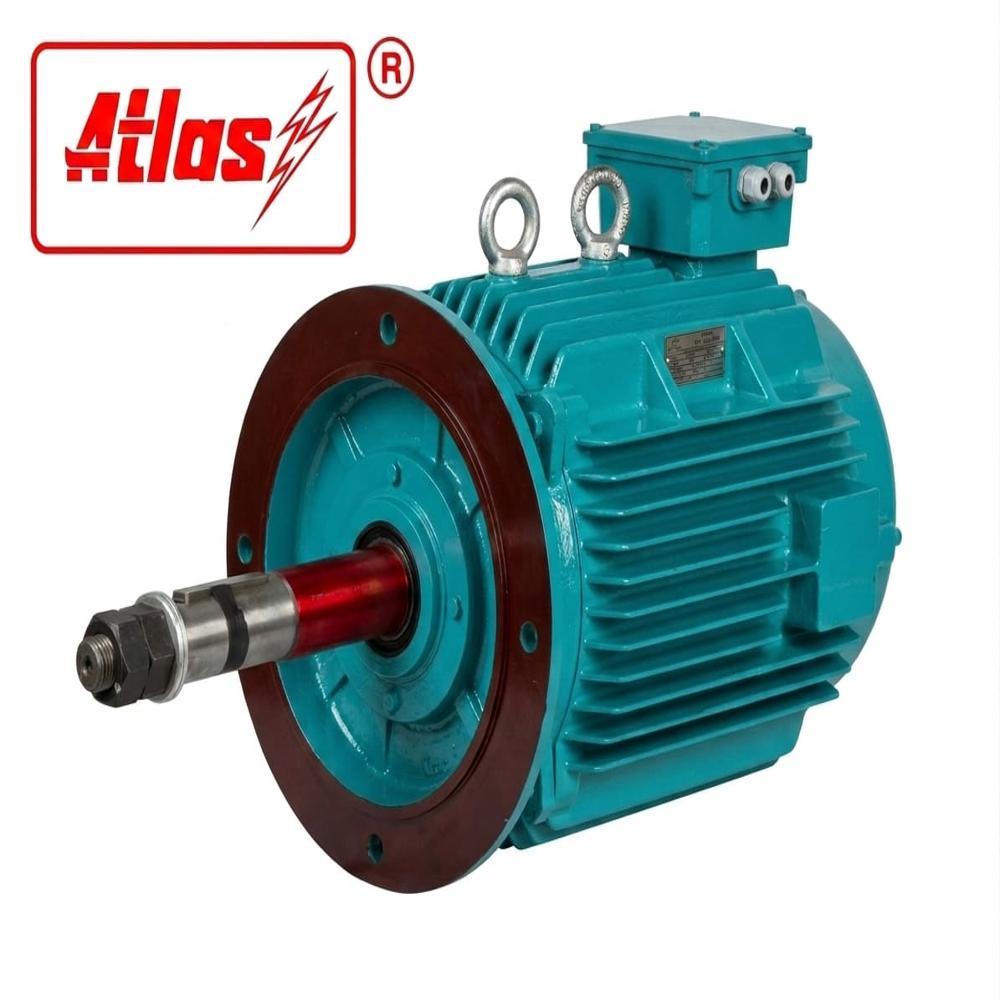

Cooling Tower Motor 15 HP 11 KW 600 RPM

Name: Cooling Tower Motor 15 HP 11 KW 600 RPM
Brand: AMIT ELECTRICALS
Price: 90550.0 INR
Availability: InStock

Price 90550.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 15 HP 11 KW 600 RPM Specification

Cooling Method
IC 411

Voltage
415 V

Bearing Type
Ball Bearing

Torque
175 Nm (approx.)

Noise Level
<80 dB

Power Rating
11 kW

Rated Voltage
415 V

Motor Type
Squirrel Cage Induction Motor

Horse Power
15 HP

Ambient Temperature
-15C to +45C

Starting Type
Direct On Line (DOL)

Features
Low Vibration, Heavy Duty Construction, Energy Efficient

Sealed Type
IP55 Protection

Efficacy
IE2 High Efficiency

Poles Number
Other

Rated Frequency
50 Hz

Current Type
AC

Standard
IS: 325, IEC: 60034

Product Type
Three Phase Induction Motor

Output Power
11 kW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
600 RPM

Power
15 HP

Color
Grey

Dimension (L*W*H)
Standard Manufacturer Size

Weight
98 kg (approx.)

Shaft Diameter
55 mm

Mounting Type
Flange Mounted (B5)

IP Rating
IP55

Rotor Type
Die Cast Aluminium

Direction of Rotation
Both Directions

Altitude Limit
1000 meters above sea level

Terminal Box Position
Top

Application
Industrial Equipment, Pumps, Compressors, Conveyors, Crushers

Lubrication
Grease Lubricated

Frequency Tolerance
+/- 5%

Enclosure Type
Totally Enclosed

Degree of Protection
IP55

Insulation Class
F Class

Duty Cycle
S1 (Continuous Duty)

Efficiency at Full Load
92%

Frame Size
180L

Cooling Tower Motor 15 HP 11 KW 600 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 15 HP 11 KW 600 RPM

Experience extraordinary power and efficiency with the Atlas Cooling Tower Motor by AMIT ELECTRICALS! Now on Sale-grab yours to enjoy a terrific offer on this perfect choice for industrial needs. Engineered for continuous duty (S1) with a robust cast iron frame, this 15 HP, 11 KW motor delivers high performance at 600 RPM and 92% efficiency. Featuring IP55 protection, Class F insulation, and heavy-duty, low-vibration construction, it is ideal for demanding applications. Don't miss this chance for an energy-efficient and reliable solution-order today!

Perfect Solution for Industrial Applications

The 15 HP 11 KW 600 RPM motor is specifically designed for application media such as industrial HVAC, pumps, compressors, conveyors, and crushers. Used as a core component in cooling towers, textile, and plastic machinery, its application surface includes high-humidity and challenging environments. With a die-cast aluminium rotor and stainless-steel shaft, it ensures durability and optimal performance on industrial equipment where reliability and corrosion protection are paramount. Truly a perfect fit for any serious industrial operation.

Streamlined Order Completion and Domestic Reach

Order completion for the 15 HP 11 KW 600 RPM motor is prompt, ensuring minimal downtime in your projects. Main domestic mar includes industries across India and it is well-suited for nationwide deployment. Our efficient delivery system guarantees rapid exchange and supply ability to meet large-scale industrial requirements. With ongoing supply and quick response times, customers can count on swift product availability for every order, elevating your operational efficiency with reliable and timely delivery.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 15 HP 11 KW 600 RPM:

Q: How can the Atlas Cooling Tower Motor enhance industrial operations?

A: The Atlas Cooling Tower Motor is engineered for continuous and efficient performance in demanding environments, ensuring reliable operation of pumps, conveyors, compressors, and cooling tower fans. Its high efficiency and robust construction make it easy to maintain and reduce downtime.

Q: What is the main usage of this 15 HP 11 KW motor?

A: This motor is primarily used in industrial applications such as cooling towers, HVAC systems, and heavy machinery like crushers and compressors, where continuous, energy-efficient operation is vital.

Q: Where can this motor be installed, considering its environmental protection features?

A: With IP55 protection and corrosion-resistant components, the motor is suitable for installation in high-humidity, dusty, and demanding industrial environments, including factories, processing plants, and outdoor cooling tower units.

Q: What is the process for ordering and exchanging this product?

A: To order, simply contact our team or place your order online. For exchanges, our efficient domestic supply network ensures timely product replacement or upgrade in line with your project's requirements and timelines.

Q: When is the ideal time to perform maintenance on this motor?

A: Regular maintenance intervals should be established based on usage and environment. Bearings are pre-lubricated with high-temperature grease and the motor is designed for low-maintenance, continuous operation, further simplifying routine upkeep.

Q: What are the benefits of using this motor for cooling tower applications?

A: The motor provides high efficiency (IE2), low vibration, excellent durability, and smooth finishing. Its robust design ensures long life, economical operation, and reliable performance in high humidity, especially fit for cooling tower applications.
