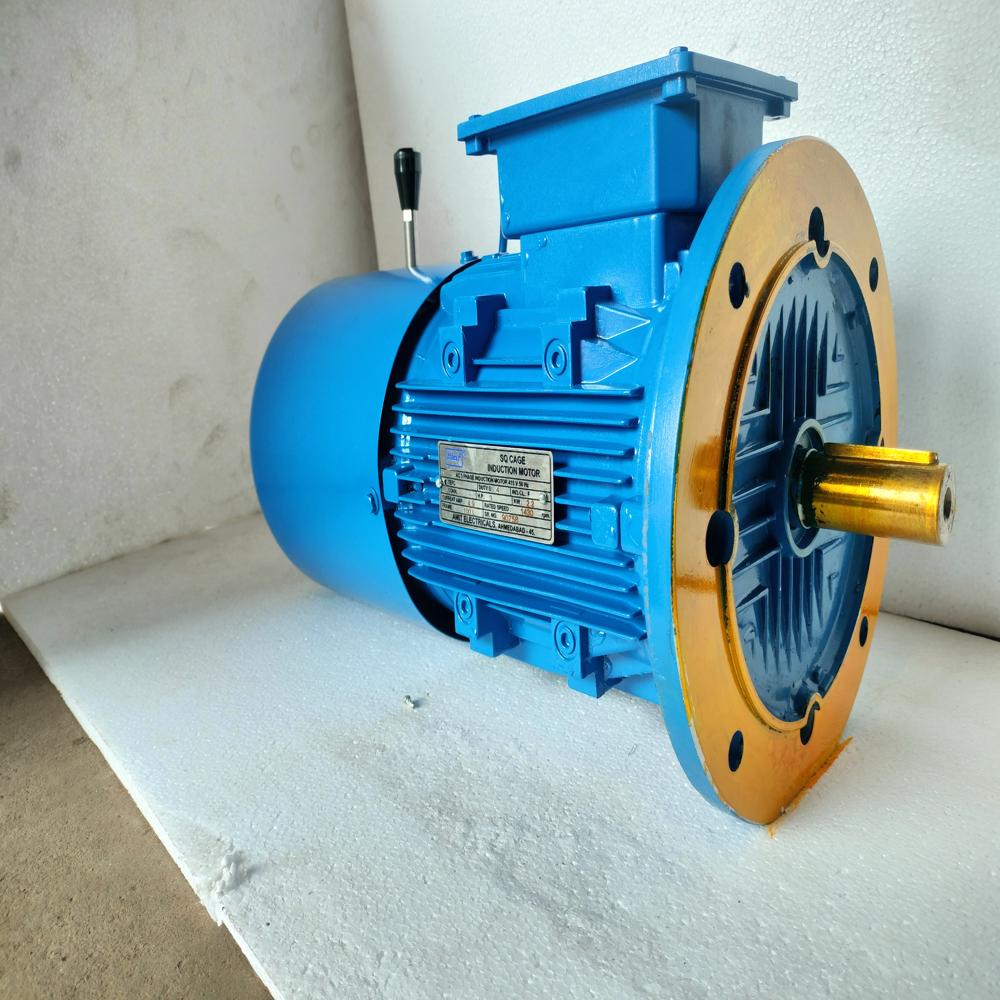

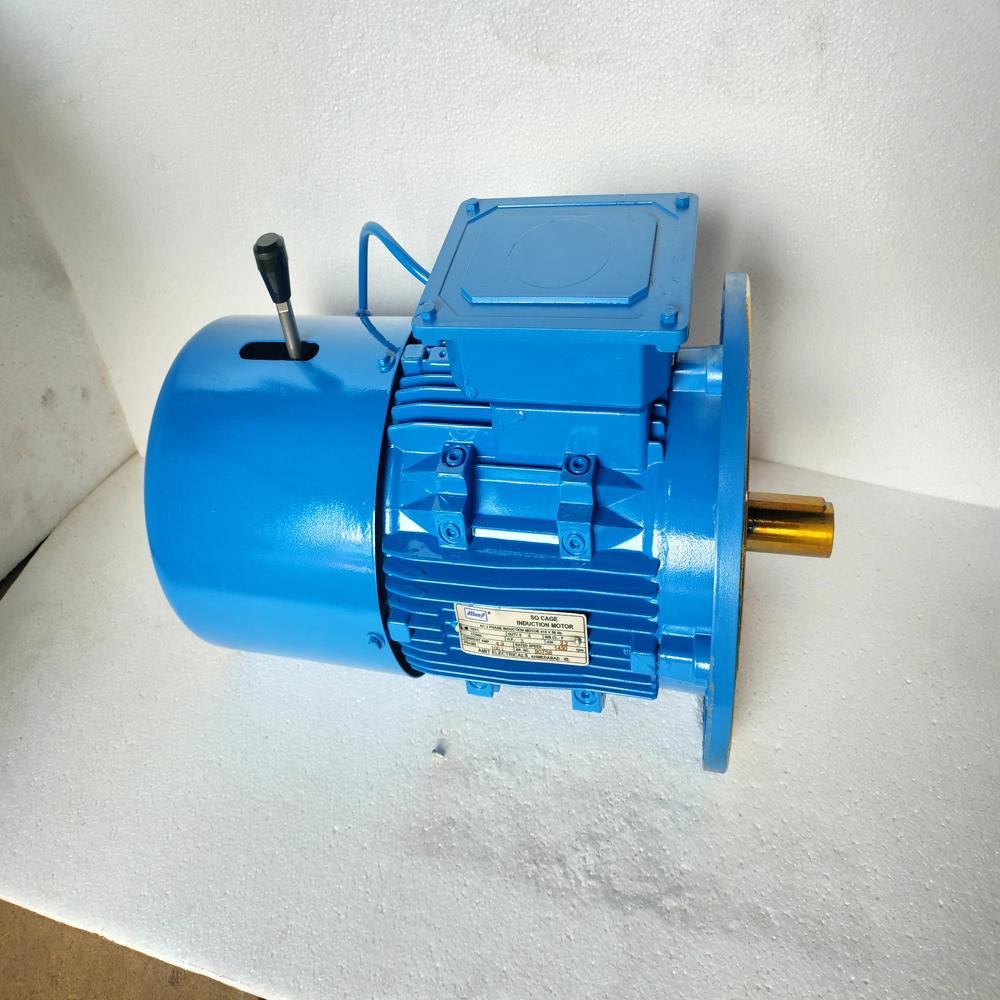

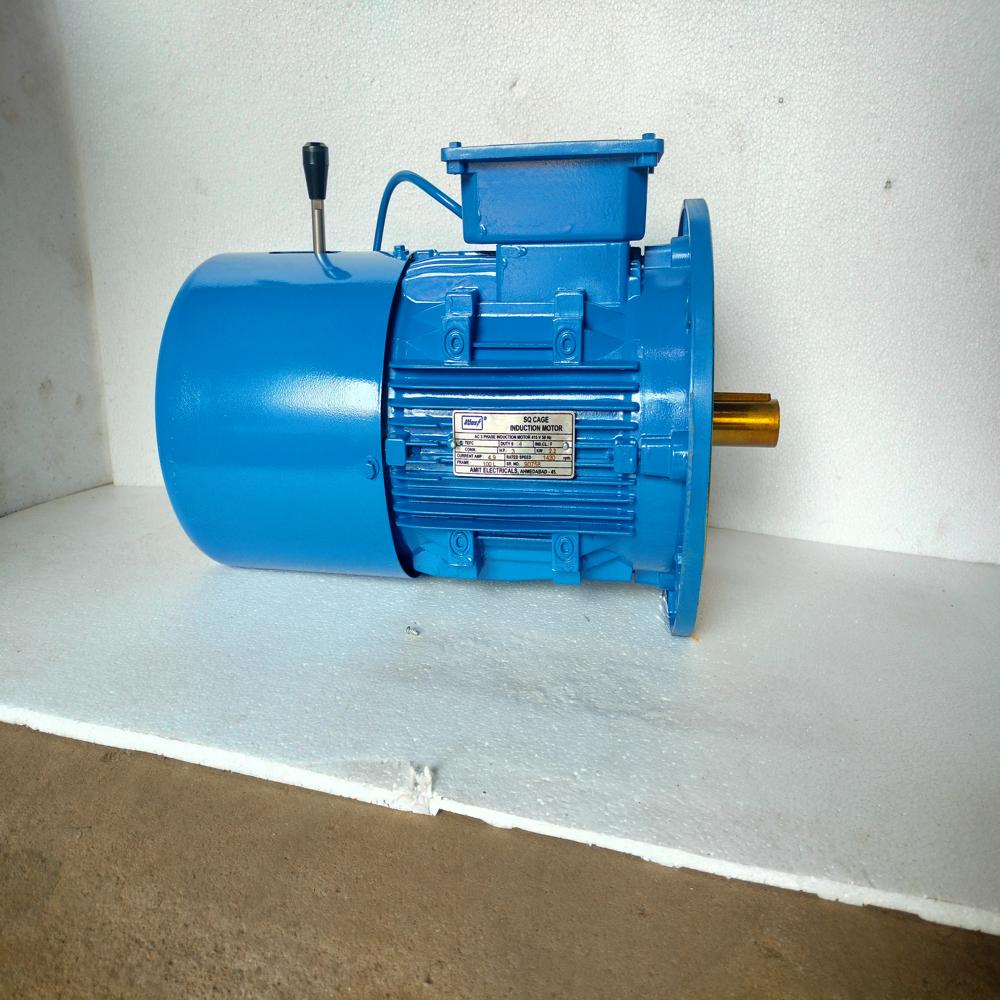

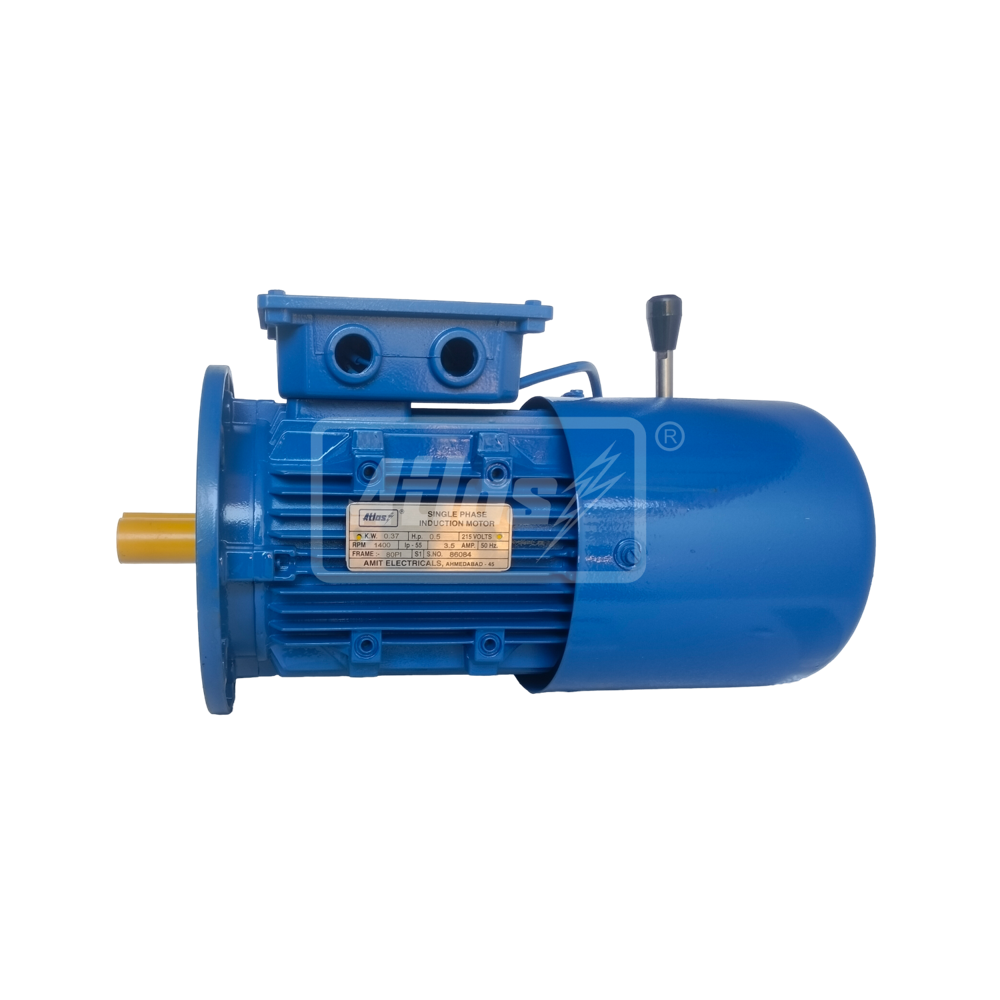

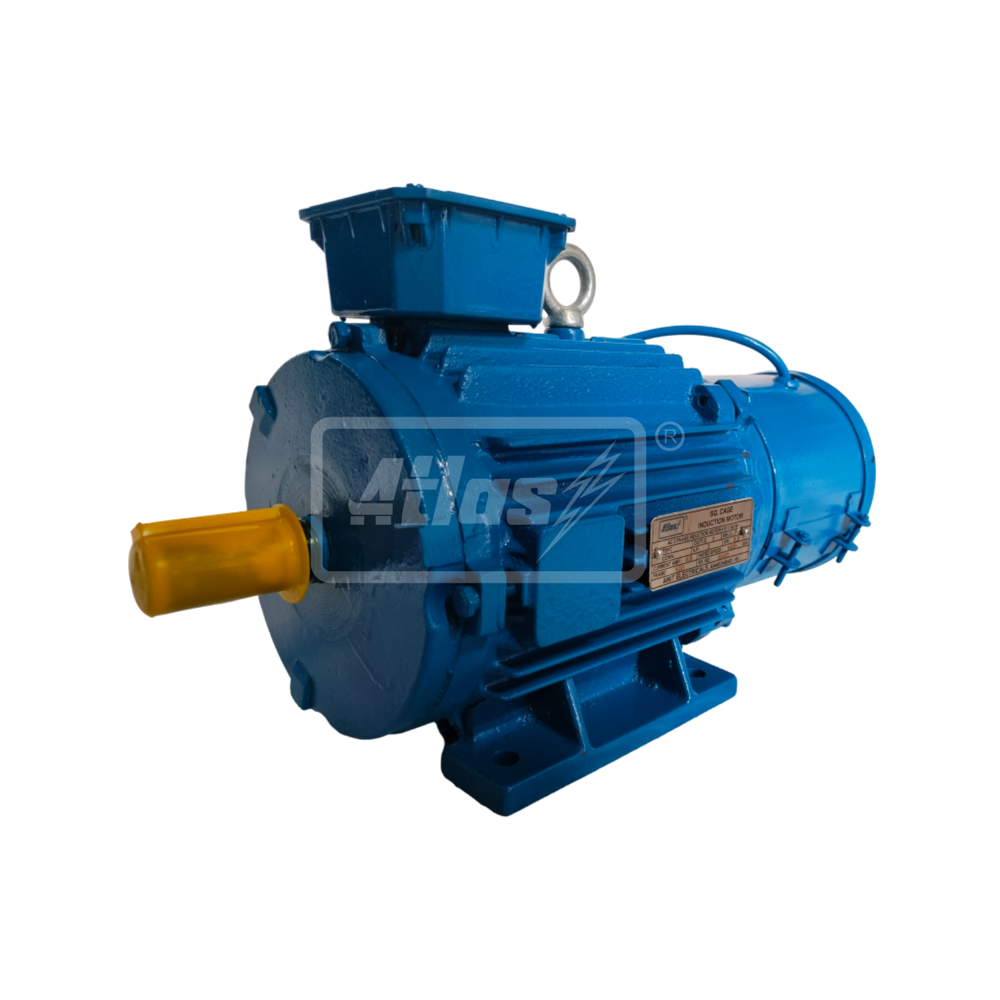

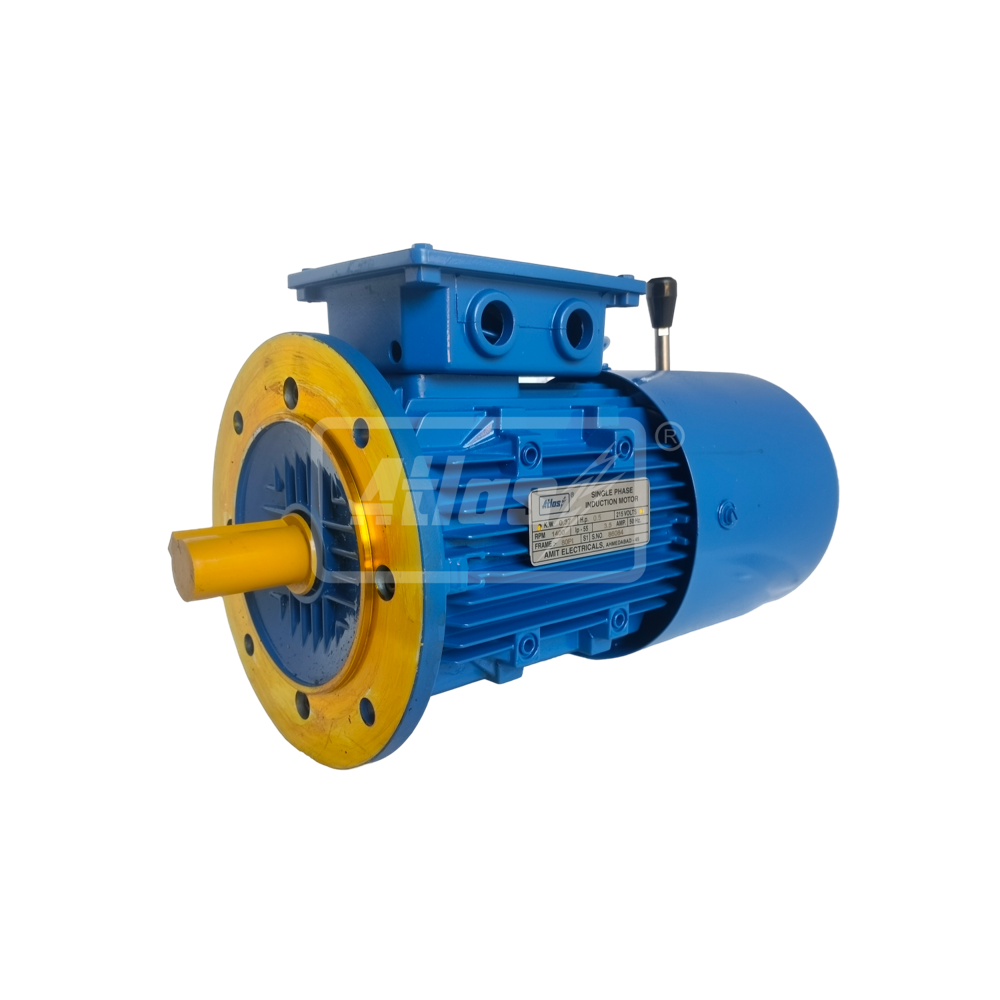

DC BRAKE MOTORS

Name: DC BRAKE MOTORS
Brand: AMIT ELECTRICALS
Price: 10000.00 INR
Availability: InStock

Price 10000.00 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DC BRAKE MOTORS Specification

Voltage
220-440 Volt (v)

Power
3.7 KW Watt (w)

Usage & Applications
Industrial

Color
Blue

Display Type
No

Warranty
1 Year

Material
Cast Iron and Aluminum

DC BRAKE MOTORS Trade Information

Minimum Order Quantity
1 Piece

FOB Port
Ahmedabad

Payment Terms
Cash in Advance (CID)

Supply Ability
100 Pieces Per Day

Delivery Time
1 Days

Sample Policy
Free samples available with shipping and taxes paid by the buyer

Certifications
ISO and CE

About DC BRAKE MOTORS

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	DC Brake Motor
Operation	Motor operates on AC voltage and brake operates on DC voltage via Rectifier or SMPS
Brake Types	Fail Safe Brake (Power OFF - Shaft Lock) and Normally Off Type Brake (Power ON - Shaft Lock)
Use Cases	Widely used in cranes and emergency-stopping applications
Range of Production	Three Phase DC Brake Motor Power: 0.25 to 50 HP (0.18 to 37 KW) Frame: 63 to 225M Poles: 2, 4, 6, 8, 10, 12
Brake Voltage	24 VDC, 96 VDC, 190 VDC
Mounting Types	Foot (B3) Flange (B5) Face (B14)
Frame Material	Cast iron with integral feet (Standard) Aluminum body available up to 100L frame (on request)
Insulation	Class F (Standard) Class H (on request)
Ratings	S1: Continuous Duty S2: Short Time Duty S3: Intermittent Periodic Duty S4: Intermittent with Starting Duty S5: Intermittent with Starting and Electrical Braking
Voltage & Frequency	Standard: 415 -/+ 5%, 50 Hz -/+ 3% Optional: 220, 380, 460, 525 V at 50 or 60 Hz (on request)
Protection	IP44 (Standard as per IS:4691) Optional: IP54, IP55 (on request)
Shaft & Rotor	Shaft: EN-8 or EN-9 material Rotor: High-pressure E.C. Grade aluminum die-cast Key joint lock, dynamically balanced for low vibration & noise
Bearings & Lubrication	Bearings: C3 ball bearings Lubrication: Lithium-based grease (up to 150 deg C)
Thermal Overload Protection	Optional T.O.P. switch available for overload safety
Terminal Box	Top position for Foot mounted (B3) Left/right on request
Earthing Terminals	Minimum two: one in terminal box, one on foot
Application	Lifting machinery Textile machinery Geared motors Cable reeling drums Rolling mills Machine tools
Features	Highly efficient Noise-free Vibration-free Low running cost Durable Smooth finishing Cost-effective Precision design
