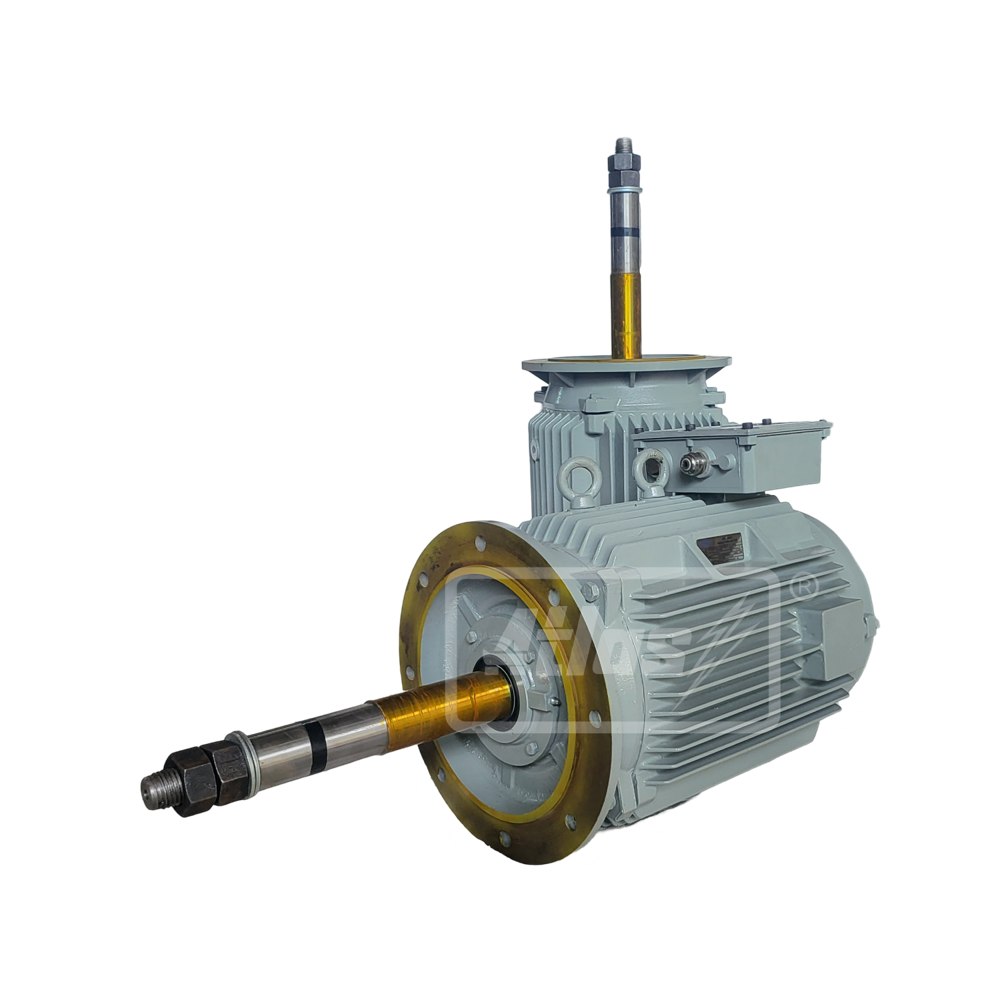

Cooling Tower Motor 10 HP 7.5 KW 500 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 10 HP 7.5 KW 500 RPM

Name: Cooling Tower Motor 10 HP 7.5 KW 500 RPM
Brand: AMIT ELECTRICALS
Price: 81950.0 INR
Availability: InStock

Price 81950.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 10 HP 7.5 KW 500 RPM Specification

Horse Power
10 HP

Bearing Type
Deep Groove Ball Bearing

Torque
143 Nm (approx. at full load)

Voltage
415 V

Rated Frequency
50 Hz

Ambient Temperature
Up to 50C

Efficacy
High Efficiency IE2/IE3

Current Type
AC

Motor Type
Squirrel Cage Induction Motor

Starting Type
Direct On Line (DOL) or Star Delta

Rated Voltage
415 V

Features
Heavy Duty, Low Vibration, Rugged Construction

Cooling Method
Fan Cooled

Standard
IS 325 / IEC 60034

Poles Number
Other

Sealed Type
IP55 Enclosure

Power Rating
7.5 KW

Noise Level
<75 dB(A)

Product Type
Low RPM Electric Motor

Output Power
7.5 KW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
500 RPM

Power
10 HP

Color
Grey

Dimension (L*W*H)
Standardised as per model (contact supplier for details)

Weight
Approx. 120-140 Kg (varies by design)

Shaft Diameter
45 mm (approx., model dependent)

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Service Factor
1.15

Altitude Suitability
Up to 1000 meters above sea level

Shaft Material
EN8 Steel

Lubrication
Pre-lubricated Bearings

Insulation Class
Class F

Application
Sugar Mills, Rolling Mills, Crushers, Conveyors

Construction Type
Cast Iron Body

Vibration Level
Within Permissible Limits (IEC Standard)

Cooling Tower Motor 10 HP 7.5 KW 500 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 10 HP 7.5 KW 500 RPM

Discover the splendiferous Atlas Cooling Tower Motor by AMIT ELECTRICALS, epitomizing top-drawer engineering for high-demand industrial applications. With customizable options and precision design, this 10 HP (7.5 KW), 500 RPM motor boasts a rugged cast iron body, high-efficiency IE2/IE3 ratings, and stellar pre-lubricated bearings for longevity. Explore reliable, cost-effective performance with astonishing features like IP55 protection, totally enclosed fan cooling, low vibration, and foot/flange mounting. Perfect for sugar mills, conveyors, rolling mills, and more, it delivers robust, astonishing value in every rotation.

Advanced Features & Versatile Utilization

The 10 HP 7.5 KW 500 RPM motor offers exceptional versatility with its heavy-duty cast iron construction, low vibration, and compliance with IEC standards. Commercially, it serves a wide spectrum-ideal in sugar mills, rolling mills, conveyors, and crushers. Its standardized design ensures seamless installation. For best performance, use direct-on-line (DOL) or star-delta starters, and ensure proper foot or flange mounting depending on operational needs, maximizing durability and efficiency in industrial environments.

Efficient Logistics & Premium Certification

Delivery is streamlined through efficient logistics for prompt dispatch upon finalized asking price and confirmed order. Each motor is certified under IS 325/IEC 60034, reflecting its premium quality and adherence to strict standards. Samples may be available upon request, allowing customers to evaluate performance firsthand before bulk purchase. Trust in the top-drawer reliability of a certified, industry-leading product that fulfills complex requirements and assures peace of mind with every transaction.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 10 HP 7.5 KW 500 RPM:

Q: How does the 10 HP 7.5 KW 500 RPM Cooling Tower Motor benefit industrial applications?

A: This motor provides reliable, cost-effective operation with high efficiency and rugged construction, ensuring optimal performance for demanding uses such as sugar mills, crushers, and conveyors.

Q: What certifications does the Atlas Cooling Tower Motor hold?

A: The motor is certified according to IS 325 and IEC 60034 standards, reflecting compliance with international safety and performance requirements for industrial equipment.

Q: When can I expect delivery of my ordered motor?

A: Delivery times depend on logistics coordination and stock availability, but prompt shipment follows order confirmation at the agreed asking price. Contact the supplier for precise delivery timelines.

Q: Where can this motor be installed for optimal results?

A: It is ideally installed in environments such as industrial cooling towers, HVAC systems, sugar manufacturing lines, and material handling equipment, using foot or flange mounting as appropriate.

Q: What is the process for obtaining a sample of this motor?

A: Interested buyers can request a sample by contacting the supplier directly. Availability is subject to negotiation, order volume, and specific commercial arrangements.

Q: How should the motor be maintained to ensure long-lasting use?

A: Routine inspection and maintenance of pre-lubricated bearings and protective enclosures, along with adherence to installation guidelines, ensure longevity and optimum performance in commercial operations.
