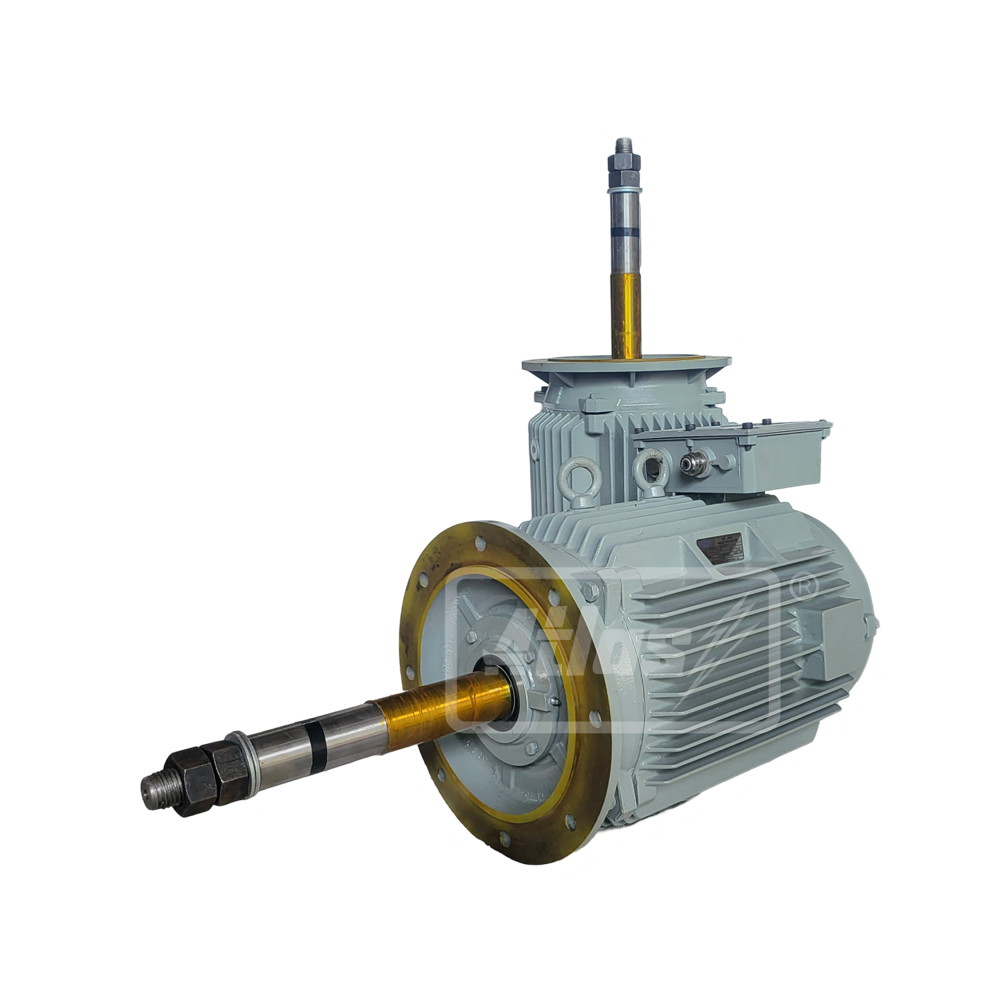

Cooling Tower Motor 2.0 HP 1.5 KW 1500 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 2.0 HP 1.5 KW 1500 RPM

Name: Cooling Tower Motor 2.0 HP 1.5 KW 1500 RPM
Brand: AMIT ELECTRICALS
Price: 9300.0 INR
Availability: InStock

Price 9300.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 2.0 HP 1.5 KW 1500 RPM Specification

Efficacy
IE2/IE3 (as per model)

Rated Frequency
50 Hz

Cooling Method
Fan Cooled

Noise Level
Below 70 dB

Standard
IS 325 / IEC 60034

Motor Type
Electric Induction Motor

Voltage
415 V

Starting Type
DOL

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Ambient Temperature
-15C to +40C

Poles Number
4

Power Rating
1.5 KW

Current Type
AC

Features
Low Maintenance, Robust Structure, Low Vibration

Horse Power
2.0 HP

Torque
Nominal 9.5 Nm

Bearing Type
Deep Groove Ball Bearing

Rated Voltage
415 V

Product Type
Three Phase Induction Motor

Output Power
1.5 KW

Frequency (MHz)
50 Hz

Protect Feature
IP55 Protection

Phase
Three Phase

Speed
1500 RPM

Power
2.0 HP

Color
Grey

Dimension (L*W*H)
Standard Frame Size

Weight
Approx. 24 kg

Shaft Diameter
24 mm (approx.)

Mounting Type
Foot / Flange Mounting

IP Rating
IP55

Voltage Tolerance
10%

Connection Type
Star/Delta

Service Factor
1.15

Rotor Type
Squirrel Cage

Frame Material
Cast Iron

Insulation Class
Class F

Altitude
Up to 1000 meters above sea level

Duty Type
S1 (Continuous Duty)

Application
Pumps, Blowers, Compressors, Industrial Machinery

Bearings Lubrication
Grease Lubricated

Frequency Tolerance
5%

Cooling Tower Motor 2.0 HP 1.5 KW 1500 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 2.0 HP 1.5 KW 1500 RPM

Experience the superlative Atlas Cooling Tower Motor by AMIT ELECTRICALS - a rare blend of durability, monumental power, and noble design. This best-seller is crafted with a robust cast iron frame and stainless steel shaft, ensuring longevity even in high-humidity environments. At 2.0 HP with 1.5 KW output and 1500 RPM, it delivers steadfast performance for pumps, blowers, compressors, and industrial machinery. Grease-lubricated bearings, Class F insulation, and IP55 protection guarantee hassle-free, continuous S1 duty at the lowest price, fulfilling stringent IS/IEC standards.

Unmatched Versatility for Industrial Operations

The 2.0 HP 1.5 KW 1500 RPM motor is specifically engineered for continuous usage (S1 Duty), addressing monumental demands in cooling towers, industrial HVAC, textile, and plastic machinery. With a noble capacity to operate in harsh, high-humidity environments, this model extends its competitive advantages through robust cast iron construction, corrosion-protected shaft, and star/delta connection. Its sealed IP55 enclosure offers unparalleled protection, while precision-engineered bearings ensure smoother operations and superlative efficiency across varied industrial applications.

Seamless Procurement and Swift Delivery

We offer flexible payment terms tailored for industrial buyers, with outstanding transport services for assured nationwide delivery. Express shipping options ensure you get your Atlas Cooling Tower Motor when you need it most. Our supply ability is exemplary, catering effortlessly to the main domestic markets throughout India. Each product is securely packed and tracked, guaranteeing your equipment arrives promptly, helping you minimize downtime with rapid installation and steadfast support.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 2.0 HP 1.5 KW 1500 RPM:

Q: How is the Atlas Cooling Tower Motor protected against moisture and corrosion?

A: The Atlas Cooling Tower Motor features a corrosion-resistant stainless steel shaft (AISI-410), double shielded bearings with high-temperature grease, an oil seal to prevent moisture ingress, and an IP55-rated totally enclosed enclosure, making it ideal for high-humidity environments.

Q: What are the main industrial applications for this 2.0 HP 1.5 KW 1500 RPM motor?

A: This motor is specifically designed for cooling tower fans in industrial HVAC, textile, and plastic machinery, but is also highly effective with pumps, blowers, compressors, and a wide range of other industrial machinery with continuous operation needs.

Q: When can I expect delivery after placing my order?

A: With our express shipping and efficient transport services, most Atlas Cooling Tower Motors are dispatched swiftly and delivered within a few working days across India. Delivery timelines may vary based on location and order volume.

Q: Where is this product primarily supplied and supported?

A: This product is supplied throughout the main domestic markets of India, supported by authorized distributors, ensuring robust nationwide availability and after-sales service.

Q: What are the key benefits of using the 2.0 HP 1.5 KW 1500 RPM Cooling Tower Motor?

A: Key benefits include exceptional energy efficiency (IE2 or IE3 as per model), robust and durable cast iron construction, very low maintenance, smooth and quiet operation below 70 dB, corrosion resistance, economical pricing, and adherence to stringent international quality standards.
