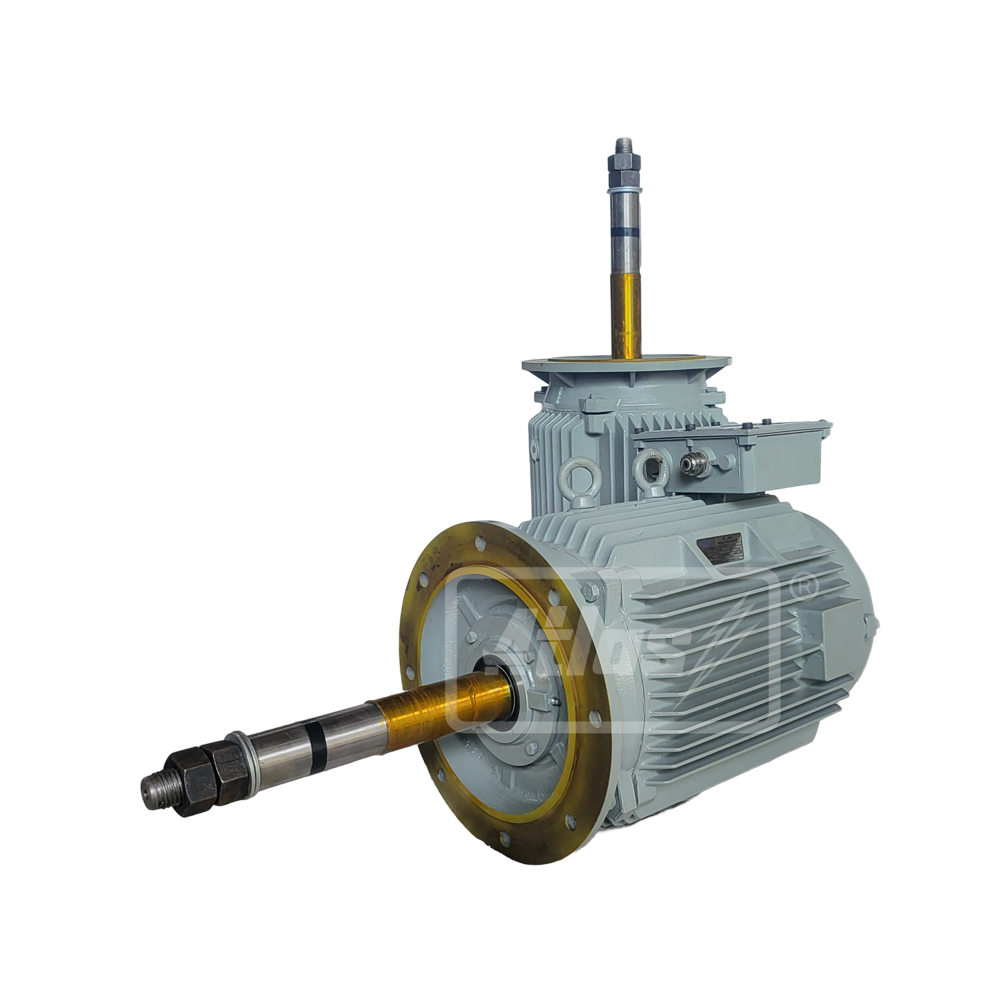

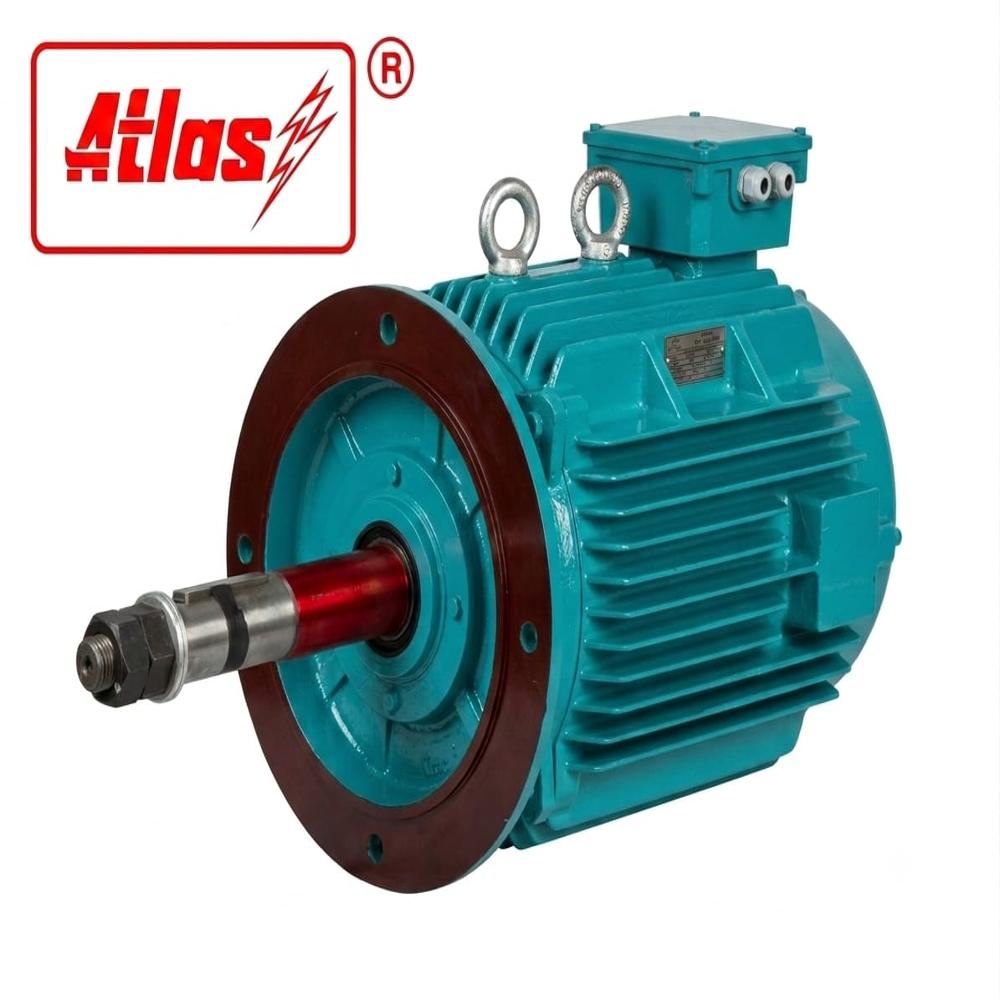

Cooling Tower Mortor 0.5 HP 0.37 KW 1000 RPM

Name: Cooling Tower Mortor 0.5 HP 0.37 KW 1000 RPM
Brand: AMIT ELECTRICALS
Price: 6500.0 INR
Availability: InStock

Price 6500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Mortor 0.5 HP 0.37 KW 1000 RPM Specification

Power Rating
0.37 kW

Poles Number
Other

Noise Level
Below 70 dB

Cooling Method
Fan Cooled

Horse Power
0.5 HP

Motor Type
Induction Motor

Torque
3.54 Nm

Efficacy
IE2/IE3

Features
Low Vibration, Low Noise, Highly Efficient

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Current Type
AC

Standard
IS:325 / IEC:60034

Starting Type
Direct On Line

Bearing Type
Deep Groove Ball Bearing

Rated Voltage
415 V

Voltage
415 V

Ambient Temperature
-15C to +40C

Rated Frequency
50 Hz

Product Type
Electric Motor

Output Power
0.37 KW

Frequency (MHz)
50 Hz

Protect Feature
IP55

Phase
Three Phase

Speed
1000 RPM

Power
0.5 HP

Color
Grey

Dimension (L*W*H)
Custom/As per design

Weight
Approx. 20 Kg

Shaft Diameter
19 mm

Mounting Type
Foot / Flange Mounting

Frame Size
80

Insulation Class
Class F

Altitude
Up to 1000 M above sea level

Thermal Protection
Available on request

Connection Type
Star or Delta

Application
Pumps, Compressors, Fans, Conveyors, Industrial Machines

Duty Type
S1 (Continuous)

Cooling Tower Mortor 0.5 HP 0.37 KW 1000 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Mortor 0.5 HP 0.37 KW 1000 RPM

Select the Ultimate 0.5 HP (0.37 KW) 1000 RPM Cooling Tower Motor from Atlas by AMIT ELECTRICALS for exceptional reliability and efficiency in challenging environments. Unlock first-rate performance with advanced features like Class F insulation, IP55 rating, robust cast iron frame, and TEFC enclosure. Designed for continuous S1 duty, this induction motor offers highly efficient operation for pumps, compressors, fans, conveyors, and industrial machines. Enjoy low vibration, reduced noise, and high efficacy. Secure your order with instant checkout for an excellent industrial solution.

Perfect for Demanding Applications

The 0.5 HP 0.37 KW 1000 RPM Cooling Tower Motor is widely used in industrial HVAC, textile, and plastic machinery where continuous and reliable operation is essential. Its special features include a corrosion-protected stainless steel extended shaft, precision deep groove ball bearings, and Class F insulation. The use type is S1 (continuous duty), making it ideal for demanding environments that require uninterrupted operation and excellent durability under high humidity and atmospheric pressures.

Certified Quality with Affordable Transportation Options

This motor is manufactured to IS:325 / IEC:60034 standards and offers the assurance of rigorous certification and quality. The main domestic market covers broad regions, ensuring prompt transportation and freight solutions at the lowest price. Sample policy is available upon request for bulk orders, allowing for easy evaluation. Customers benefit from swift logistics and guaranteed product authenticity, making this motor a trusted choice for critical cooling tower applications across industries.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 0.5 HP 0.37 KW 1000 RPM:

Q: How does the 0.5 HP 0.37 KW 1000 RPM Cooling Tower Motor benefit cooling tower operations?

A: This motor delivers highly efficient, reliable performance, even in high humidity areas, making it ideal for cooling towers. Its continuous duty (S1 rating), corrosion-protected shaft, and IP55 protection ensure long life and optimal operation.

Q: What types of applications can this motor be used for?

A: It is specifically designed for cooling tower fans but is also used in industrial HVAC systems, textile and plastic machinery, pumps, compressors, conveyors, and fans, offering versatile industrial usage.

Q: Where is the 0.5 HP Cooling Tower Motor primarily supplied and used?

A: It is mainly distributed and used across domestic markets but is suitable for international applications as well, wherever reliable and efficient cooling tower operation is needed.

Q: What certifications does this motor comply with?

A: The motor meets IS:325 and IEC:60034 standards, ensuring excellent quality, safety, and consistent performance in industrial environments.

Q: How is transportation and freight managed for orders of this motor?

A: Transport and freight are arranged promptly and economically, offering lowest-price logistics solutions to ensure timely and secure delivery to your location.

Q: What are the unique features that set this motor apart?

A: Special features include a robust cast iron frame, stainless steel extended shaft, deep groove ball bearings, oil seals for moisture protection, and optional thermal overload protection, ensuring durability and smooth operation.
