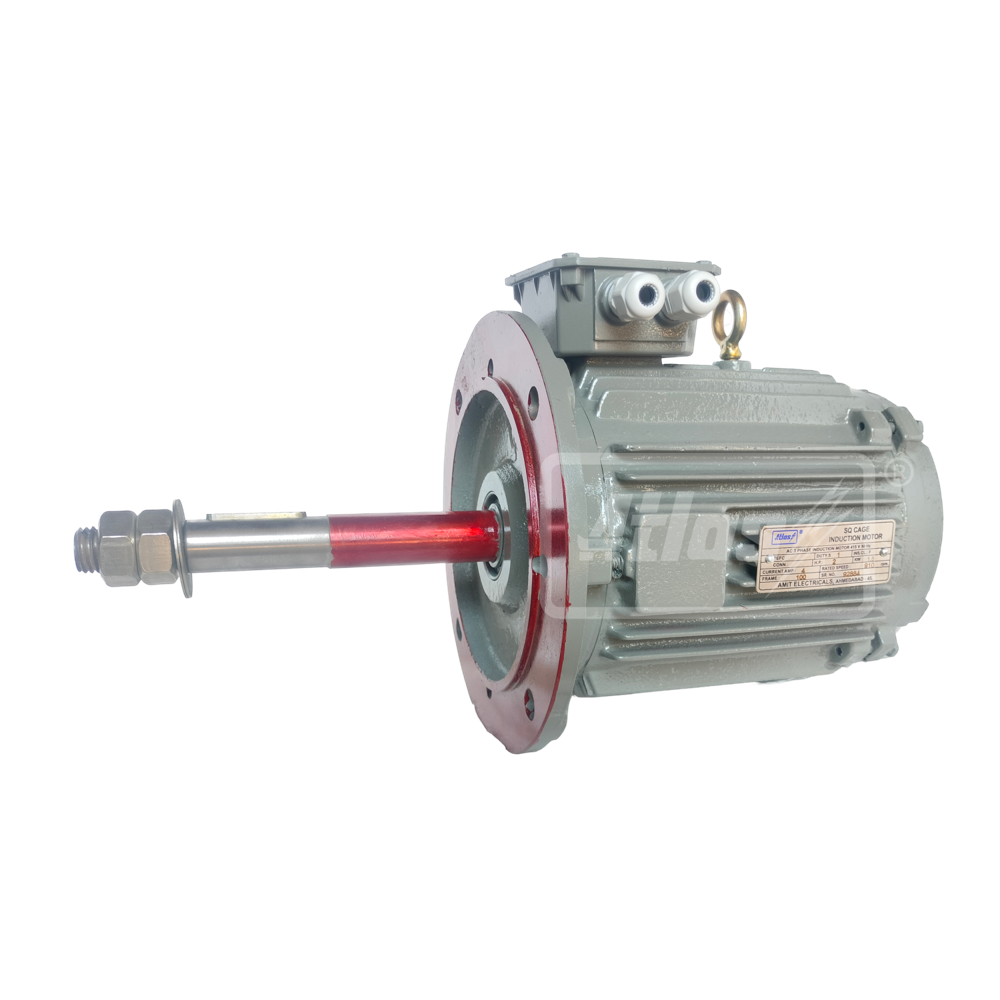

Unlock transcendent performance with the 3.0 HP 2.2 KW 1500 RPM Atlas Cooling Tower Motor by AMIT ELECTRICALS. Spotlighting masterful engineering, this cast iron, flange-mounted (B5) motor is meticulously crafted for exceptional durability and efficiency, delivering a robust output for continuous operations. Find unmatched protection with IP55-rated, totally enclosed fan-cooled (TEFC) design, corrosion-resistant coatings, and optional thermal protection. Experience long-life reliability with pre-lubricated bearings and stainless steel shaft. Designed to excel in high-moisture and dust-prone environments, this is a truly exceptional choice for your industrial cooling needs.
Ideal Applications & Versatile Usage
Perfectly suited for cooling tower fan operations in areas with high humidity, this 3.0 HP motor excels in industrial HVAC, textile machinery, and plastic machinery applications. Designed for both specific and general uses, it offers durable performance, making it ideal for environments requiring extended and reliable operation. Its adaptability ensures it meets the rigorous standards of various industries, providing a masterful solution for demanding settings that call for moisture and dust resistance.
Market Reach, Sample Policy & Packaging Insights
Offering nationwide coverage, the 3.0 HP 2.2 KW 1500 RPM Cooling Tower Motor is readily available across the main domestic markets. We provide samples-each sample's valuation is determined as per the prevailing list price and policy. Secure packaging ensures product integrity during transit, underlining our commitment to quality delivery. Customers can trust in comprehensive support through each stage, from sample request to safe receipt, making your procurement experience as seamless and reliable as the product itself.
| Company Name |
AMIT ELECTRICALS |
| Brand |
Atlas |
| Product Name |
Cooling Tower Motor |
| Application |
Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery |
| Range of Production |
Power: 0.25 to 25 HP (0.18 to 18.5 KW)
Frame: 63 to 250M
Poles: 4, 6, 8, 10, 12
Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz |
| Mounting Types |
Flange (B5) |
| Frame Material |
Robust cast iron frame |
| Ratings |
S1: Continuous Duty |
| Voltage & Frequency |
Standard: 415 5%, 3 Phase, 50 Hz 3%
Optional: 220, 380, 460, 525 V at various frequencies |
| Protection |
IP55 protection
Suitable for up to 90% relative humidity |
| Shaft |
Material: Stainless Steel AISI-410
Nut & Washer: Stainless Steel AISI-202
Extended shaft for fan fitting
Corrosion protection |
| Insulation & Duty |
Insulation Class F
Designed for continuous operation (S1) |
| Bearings & Oil Seal |
Double shielded bearings (ZZ or 2RS)
Pre-lubricated with high temp grease
Oil seal prevents moisture ingress |
| Enclosure |
T.E.S.C. (Totally Enclosed Surface Cooled) |
| Thermal Overload Protection |
Optional T.O.P. switch available on demand |
| Earthing Terminals |
Minimum two: one in terminal box, one on body |
| Paint |
Semi-glossy synthetic enamel (special paints available on request) |
| Features |
Highly efficient
Durable
Smooth finishing
Economical price
Precision design
Long life |
FAQ's of 3.0 HP 2.2 KW 1500 RPM:
Q: How is the 3.0 HP 2.2 KW 1500 RPM Atlas Cooling Tower Motor typically used?
A: This motor is specially designed for continuous operation in cooling tower fans, particularly where high humidity is prevalent, such as in industrial HVAC, textile production, and plastic machinery.
Q: What key features ensure the durability and efficiency of this Cooling Tower Motor?
A: The cast iron construction, pre-lubricated deep groove ball bearings, high efficiency rating, and anti-corrosive paint finish all contribute to the motor's long life, durability, and minimal maintenance needs.
Q: Where can this motor be installed for optimal results?
A: It can be installed in industrial environments-like manufacturing plants and processing facilities-where it is exposed to challenging conditions including moisture, dust, and continuous use.
Q: What is the process for requesting a product sample?
A: Simply contact us to request a sample. All samples are offered at a valuation based on the current list price, and are carefully packaged to ensure they arrive in perfect condition.
Q: What benefits does the TEFC (Totally Enclosed Fan Cooled) enclosure provide?
A: The TEFC enclosure offers robust protection against dust, moisture, and contaminants, enhancing the motor's reliability and lifespan-making it especially suitable for harsh or demanding application environments.
Q: How does the IP55 protection rating benefit users?
A: IP55 protection ensures the motor resists ingress of dust and low-pressure water jets, making it ideal for both outdoor and moist environments where equipment reliability is critical.
