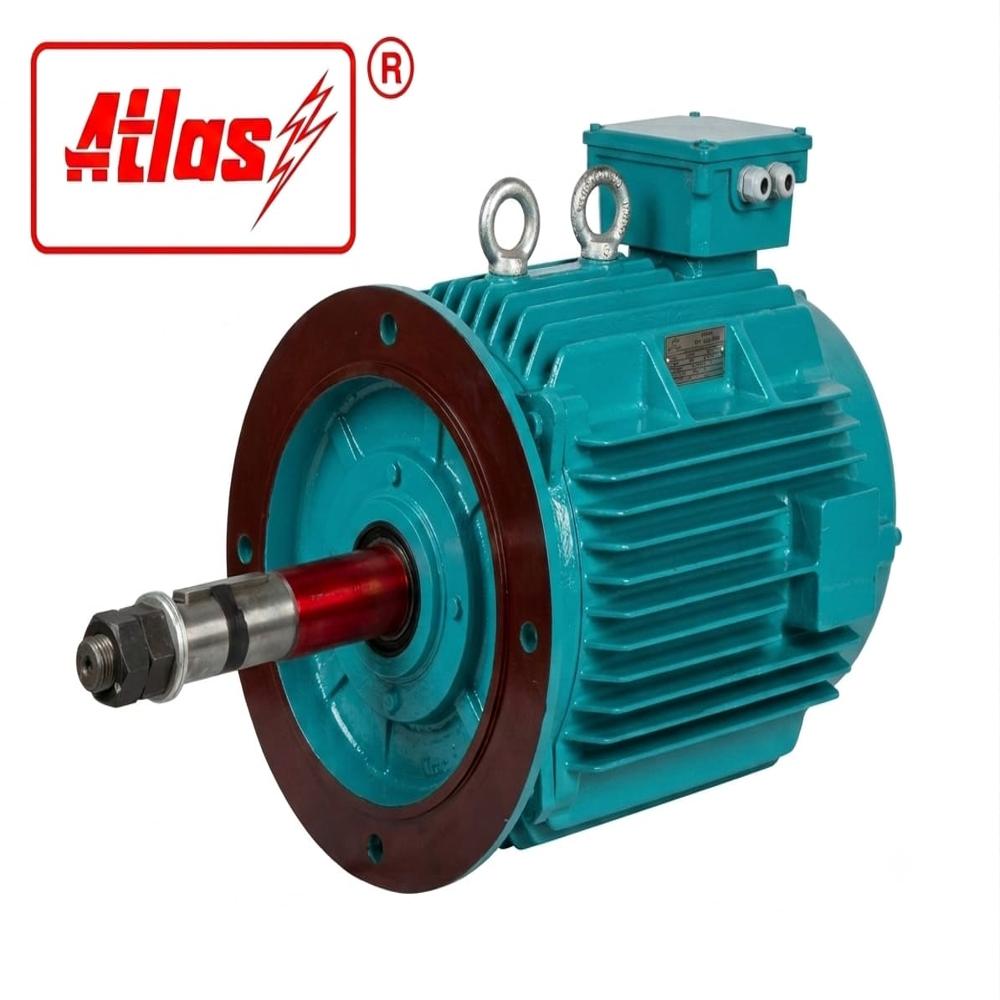

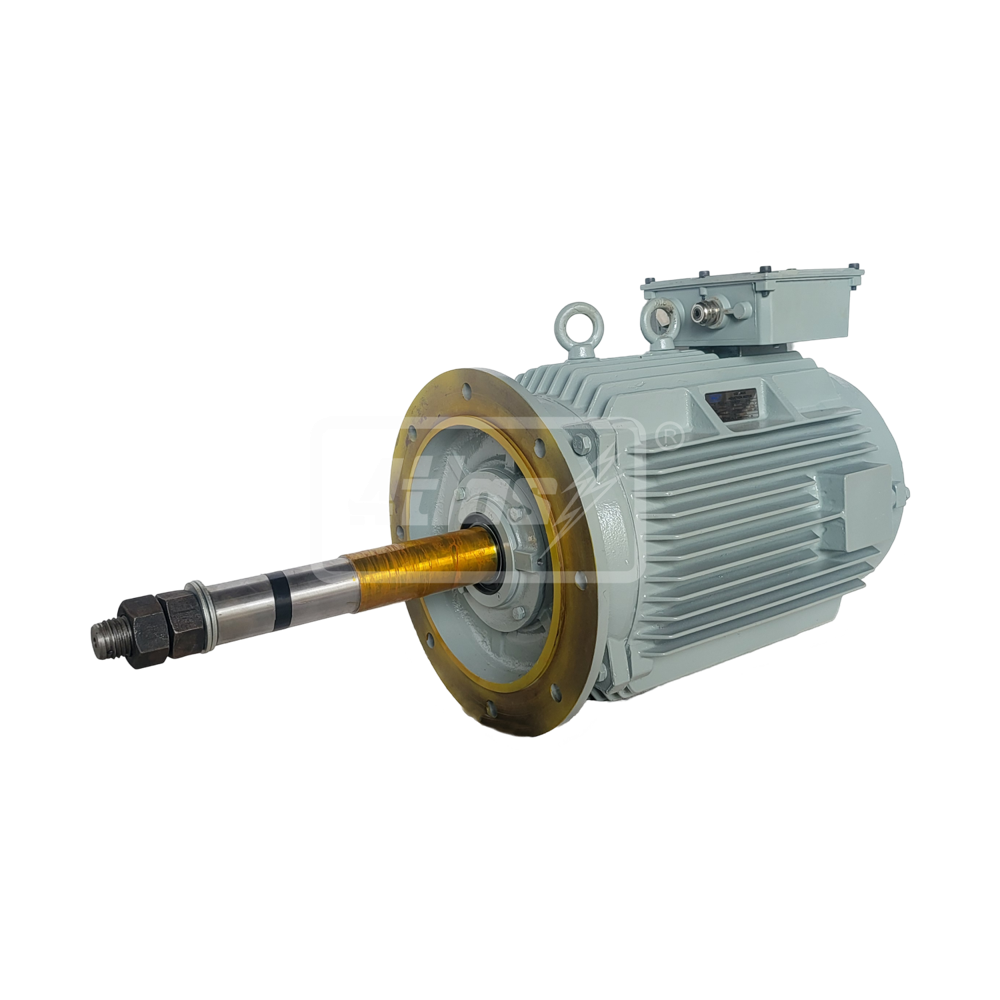

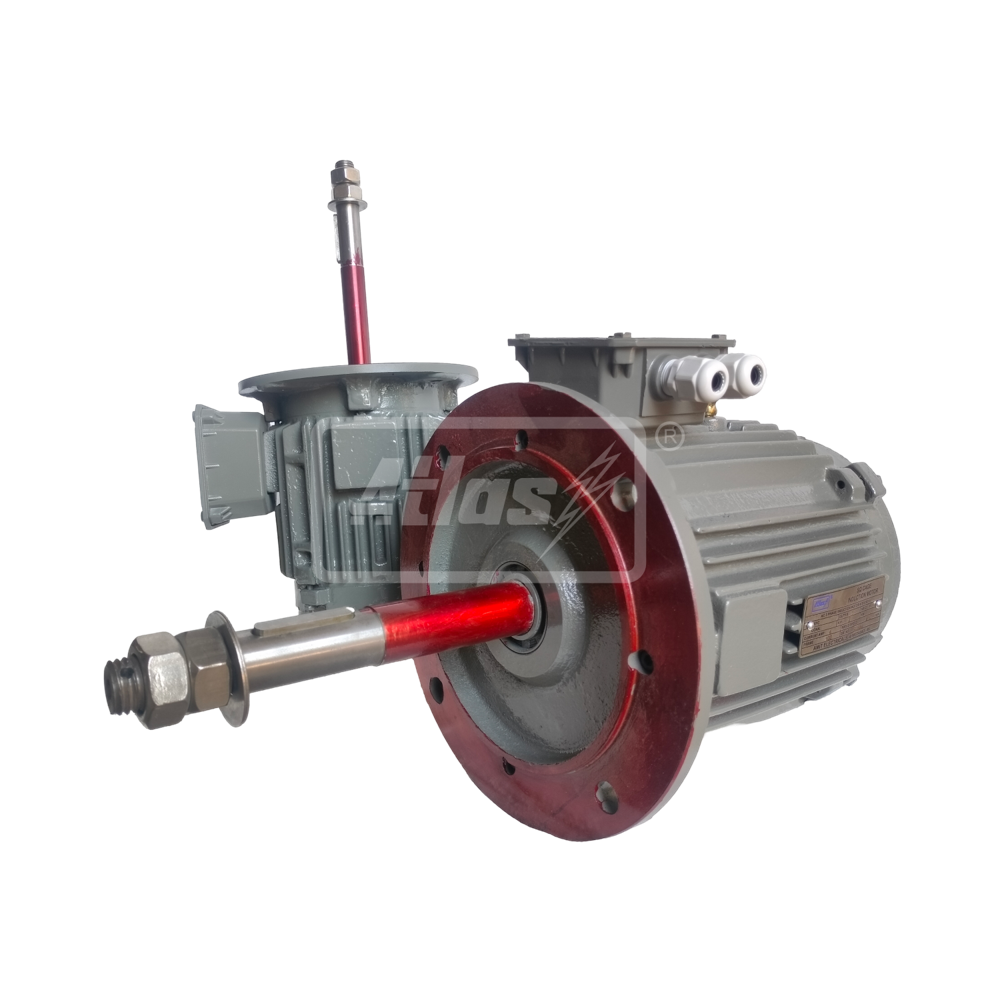

Cooling Tower Motor 2.0 HP 1.5 KW 600 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 2.0 HP 1.5 KW 600 RPM

Name: Cooling Tower Motor 2.0 HP 1.5 KW 600 RPM
Brand: AMIT ELECTRICALS
Price: 23850.0 INR
Availability: InStock

Price 23850.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 2.0 HP 1.5 KW 600 RPM Specification

Features
Robust Body, Low Maintenance, High Starting Torque

Cooling Method
IC411 (Fan Cooled)

Motor Type
Squirrel Cage Induction Motor

Current Type
AC

Rated Frequency
50 Hz

Noise Level
<70 dB

Poles Number
Other

Voltage
415 V

Horse Power
2.0 HP

Ambient Temperature
-15C to 50C

Bearing Type
Deep Groove Ball Bearing

Efficacy
IE2 / IE3 As per requirement

Power Rating
1.5 KW

Starting Type
DOL (Direct On Line)

Standard
IS 325 / IEC 60034

Rated Voltage
415 V

Sealed Type
Sealed

Torque
23.87 Nm (approx.)

Product Type
Electric Induction Motor

Output Power
2.0 HP / 1.5 KW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
600 RPM

Power
1.5 KW

Color
Industrial Grey

Dimension (L*W*H)
Standard Motor Frame Size (Refer to data sheet)

Weight
Approx. 30-35 kg

Shaft Diameter
28 mm (Standard)

Mounting Type
Foot / Flange Mounting

Duty
S1 Continuous Duty

Application
Industrial Equipment, Pumps, Compressors, Conveyor Drives

Insulation Class
Class F

Enclosure
Cast Iron Body

Balancing
Dynamic Balanced Rotor

Altitude
Suitable for up to 1000 m above sea level

Service Factor
1.15

Cooling Tower Motor 2.0 HP 1.5 KW 600 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 2.0 HP 1.5 KW 600 RPM

Jump on this limited time offer and bring home the Atlas 2.0 HP 1.5 KW 600 RPM Cooling Tower Motor - a true masterpiece of modern engineering. Crafted with a robust cast iron body and insulated with pristine Class F materials, this exquisite motor is dynamically balanced for enduring industrial performance. Its sealed, IP55-rated enclosure ensures reliability even in challenging environments. With low maintenance, high starting torque, and superior efficiency (IE2/IE3 as required), it's a find you won't want to miss for industrial applications!

Designed for Demanding Applications

The 2.0 HP 1.5 KW 600 RPM Cooling Tower Motor is used extensively in cooling tower fan operations. Perfect for high-humidity settings, it excels in industrial HVAC, textile, and plastic machinery. Specifically tailored for driving pumps, compressors, and conveyor systems, this motor is ideal for environments requiring continuous, dependable performance. Its robust construction and superior protection make it suitable for rigorous applications where reliability and longevity are critical.

Swift Dispatch and Secure Delivery

Upon order completion at the sale price, each unit is quickly dispatched, with typical lead times varying by order size and customization. Packaging is secure and sturdy, ensuring motors reach you in pristine condition. Sample policy is available for select products, enabling you to confidently evaluate before making a bulk purchase. Experience seamless order fulfillment and prompt support from initial inquiry right through to final delivery, maximizing your uptime and project continuity.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 2.0 HP 1.5 KW 600 RPM:

Q: How is the 2.0 HP 1.5 KW 600 RPM Cooling Tower Motor delivered after order completion?

A: After your order is confirmed and the sale price secured, the motor is carefully packaged and dispatched within the committed timeframe, ensuring it arrives in pristine working condition.

Q: What applications are ideal for this Cooling Tower Motor?

A: This motor is purpose-built for cooling towers in high-humidity environments and is widely used in industrial HVAC, textile, and plastic machinery, as well as pumps, compressors, and conveyor drives.

Q: When can I expect delivery if I order today?

A: Delivery times depend on the order volume and specific requirements, but the team prioritizes swift dispatching to ensure timely arrival. Please consult for current lead times and stock availability.

Q: Where is this motor suitable for installation?

A: With its robust cast iron construction and IP55 protection, the motor is suitable for installations up to 1000 meters above sea level, especially in industrial or high-moisture settings.

Q: What are the advantages of choosing this Cooling Tower Motor?

A: Key benefits include a robust, maintenance-friendly design, high starting torque, precise dynamic balancing, and reliable performance under continuous duty, resulting in extended operational life and lower ownership costs.

Q: How does the packaging ensure motor safety during transit?

A: Motors are securely packed using strong materials that guard against moisture, dust, and physical impacts, guaranteeing that the product remains protected and ready for immediate use upon arrival.
