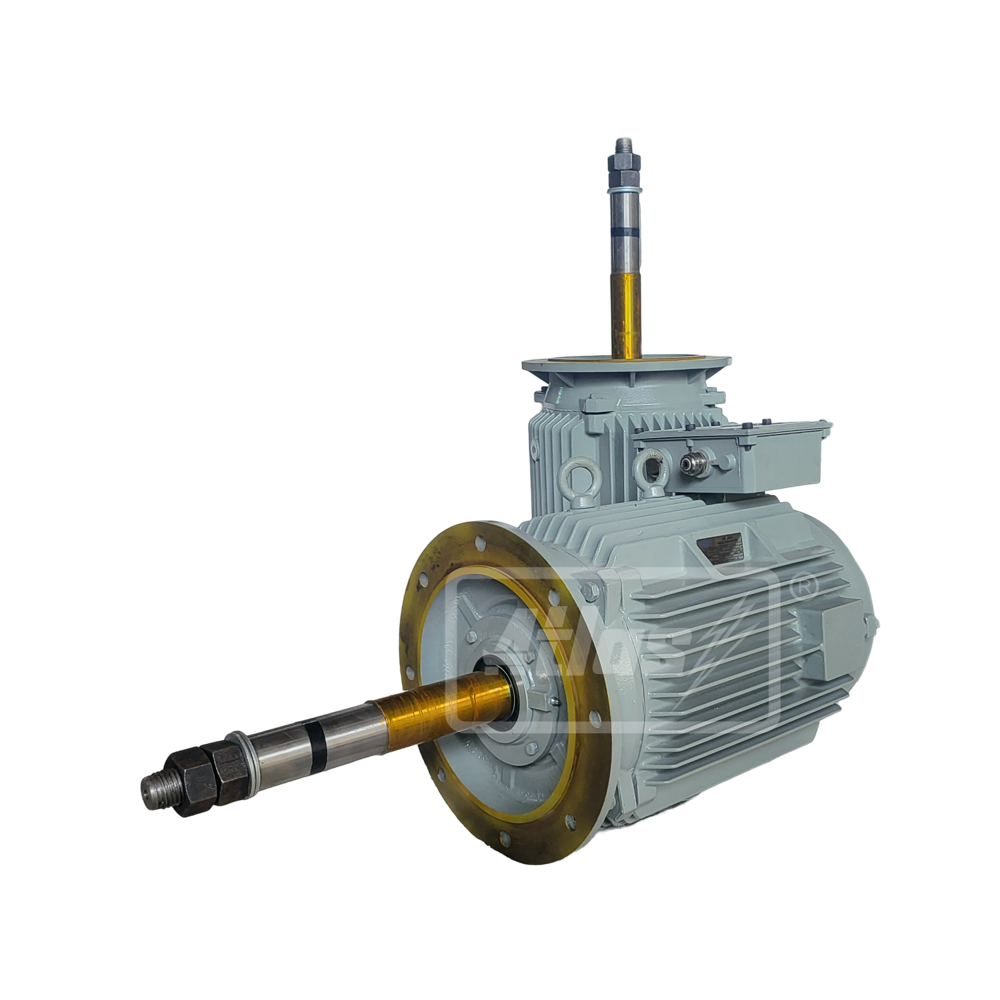

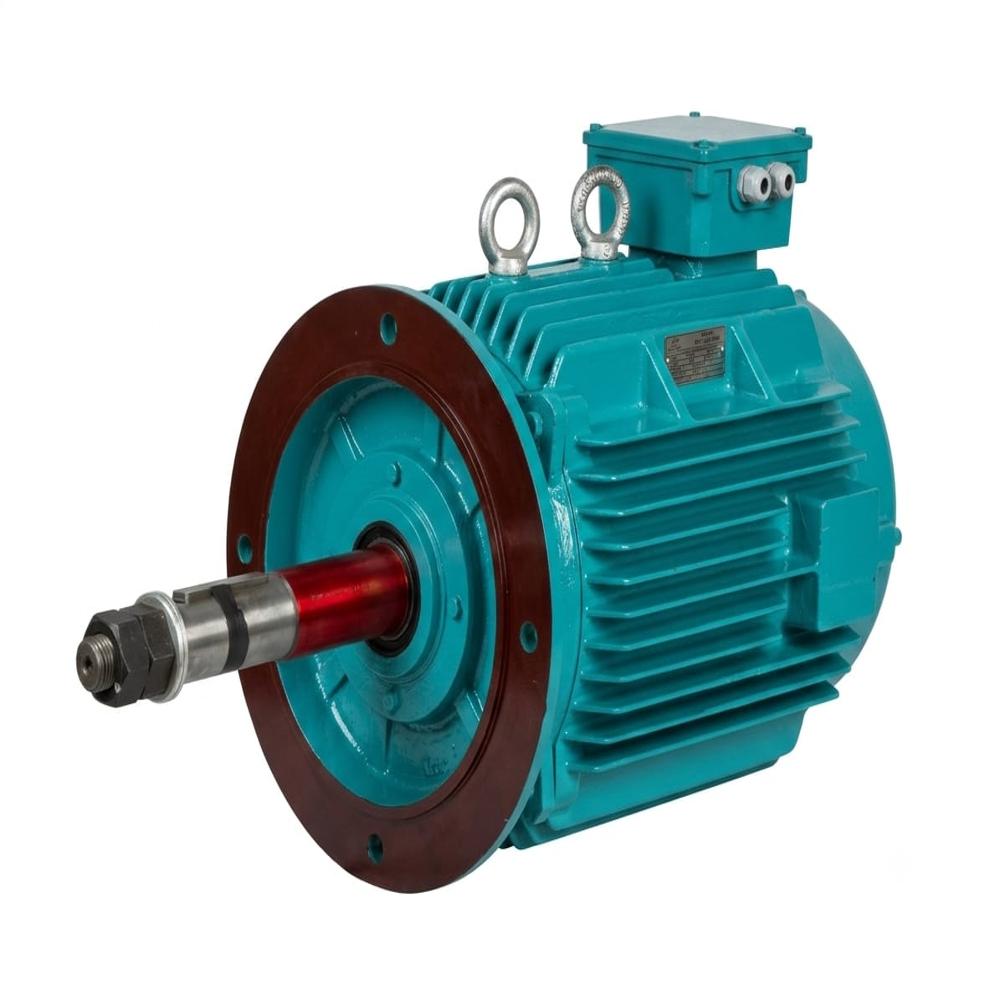

Cooling Tower Motor 25 HP 18.5 KW 500 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 25 HP 18.5 KW 500 RPM

Name: Cooling Tower Motor 25 HP 18.5 KW 500 RPM
Brand: AMIT ELECTRICALS
Price: 171850.0 INR
Availability: InStock

Price 171850.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 25 HP 18.5 KW 500 RPM Specification

Current Type
AC

Bearing Type
Ball Bearing

Power Rating
18.5 kW

Poles Number
Other

Ambient Temperature
-15C to 40C

Standard
IS 325 / IEC 60034

Rated Voltage
415 V

Torque
353 Nm

Efficacy
High Efficiency

Voltage
415 V

Sealed Type
TEFC

Cooling Method
IC411 (Self-cooled)

Features
Robust Construction, Energy Efficient, Low Vibration

Motor Type
Squirrel Cage Induction Motor

Starting Type
Direct On Line (DOL)

Horse Power
25 HP

Rated Frequency
50 Hz

Noise Level
Low Noise, < 85 dB

Product Type
Electric Motor

Output Power
18.5 KW

Frequency (MHz)
50 Hz

Protect Feature
Totally Enclosed Fan Cooled (TEFC)

Phase
Three Phase

Speed
500 RPM

Power
25 HP

Color
Grey

Dimension (L*W*H)
Customized / As Per Standard

Weight
Approx. 200-250 kg

Shaft Diameter
55 mm

Mounting Type
Foot / Flange Mounted

IP Rating
IP55

Connection Type
Star / Delta

Application
Industrial, Pumps, Compressors, Conveyors

Insulation Class
Class F

Cooling Fan Material
Plastic / Cast Iron

Service Factor
1.15

Vibration Level
Within Permissible Limit per IS:12075

Frame Size
180M

Duty Type
S1 (Continuous)

No. of Starts/Hour
Up to 6

Terminal Box Position
Top / Side

Cooling Tower Motor 25 HP 18.5 KW 500 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 25 HP 18.5 KW 500 RPM

Utilise this rare offer on the Atlas 25 HP 18.5 KW 500 RPM Cooling Tower Motor-a true masterpiece for demanding industrial applications. Built by AMIT ELECTRICALS, this world-class motor combines impeccable design with robust cast iron construction and energy-efficient performance. Suitable for continuous operation (S1 duty), it includes advanced insulation (Class F), star/delta connection, and top-tier protection (IP55). With its highly efficient operation, corrosion-resistance, and low vibration, this high-torque, six-pole motor is engineered to deliver longevity, reliability, and flawless operation in industrial pumps, conveyors, and compressors. Offered by leading exporters, manufacturers, and suppliers.

Versatile Application & Usage Areas for Industry

The 25 HP 18.5 KW 500 RPM Cooling Tower Motor is meticulously designed for high-stress industrial environments, particularly cooling towers in HVAC, textile, and plastic machinery. Its continuous (S1) duty type ensures optimal performance across pumps, compressors, and conveyors. Whether deployed in humid conditions or for extended operational routines, this model guarantees precise and reliable output. Its robust shaft and corrosion-resistant makeup provide peace of mind in applications demanding endurance, strength, and sustained usage.

Domestic Market Coverage and Supply Provisions

The Atlas 25 HP 18.5 KW 500 RPM motor has a strong presence in both the domestic mar and international sectors. AMIT ELECTRICALS offers a seamless process-from quotation to handover-ensuring customers get reliable supply ability for bulk and urgent orders. With samples available on request, clients can authenticate quality before finalizing their purchase. Known for prompt service and a well-distributed supply chain, this solution is ideal for businesses seeking excellence and efficiency.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 25 HP 18.5 KW 500 RPM:

Q: How is the 25 HP 18.5 KW 500 RPM Cooling Tower Motor typically used in industrial applications?

A: This motor is extensively used in cooling towers, as well as industrial pumps, compressors, and conveyors-particularly where continuous, reliable, and energy-efficient operation is critical.

Q: What are the primary benefits of choosing this Atlas cooling tower motor?

A: It offers high efficiency, robust construction, low vibration, and impressive durability. The advanced insulation, sealed enclosure, and IP55 rating make it ideal for demanding and high-humidity environments.

Q: When can customers request a sample or quotation for this product?

A: Samples and quotations can be requested at any time, allowing clients to verify the quality and specifications before proceeding with larger or customized orders.

Q: Where is this motor most suitable for installation?

A: It is engineered for both outdoor and indoor industrial settings, particularly where cooling towers and machinery demand reliable, long-term operation-especially under challenging environmental conditions.

Q: What is the process for installation and handover of these motors?

A: After finalizing the quotation, AMIT ELECTRICALS coordinates supply and supports clients through the installation and commissioning process, ensuring smooth handover and setup in the desired configuration.
