Cooling Tower Motor 3.0 HP 2.2 KW 500 RPM

Send Inquiry

Request To Call Back

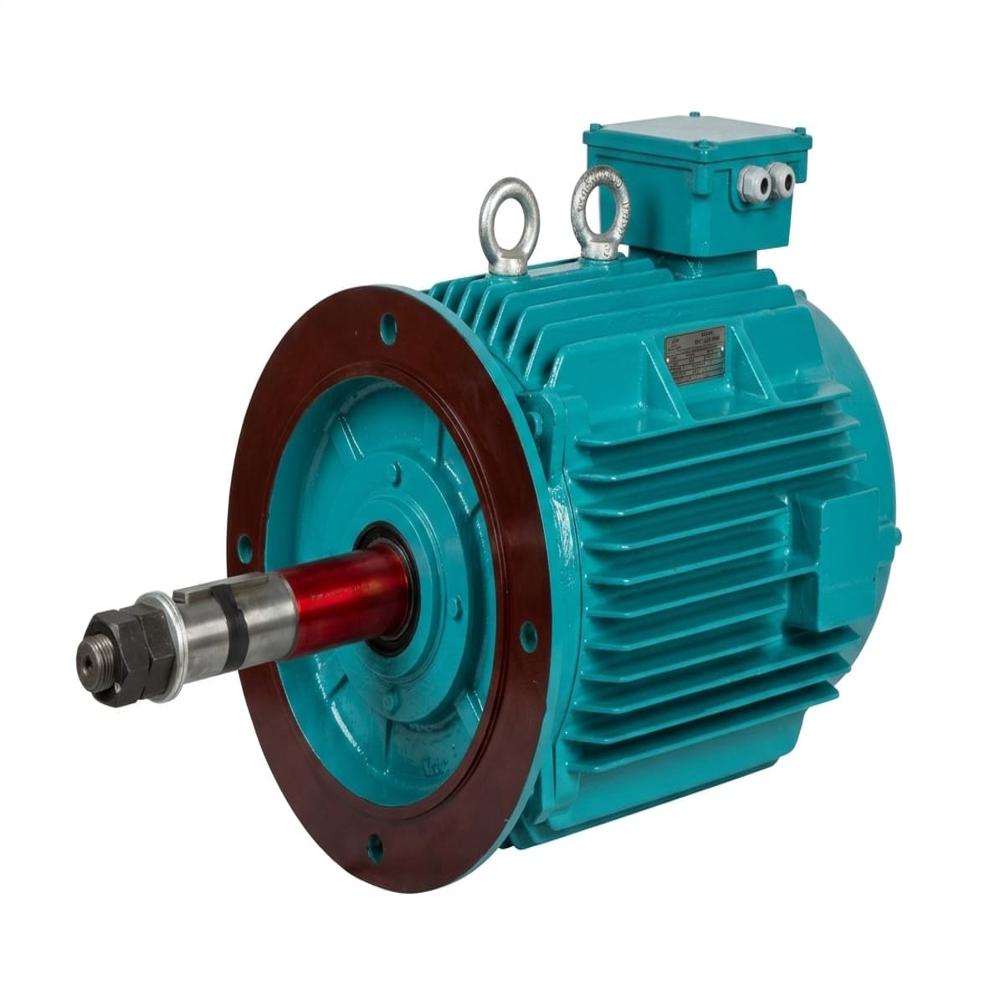

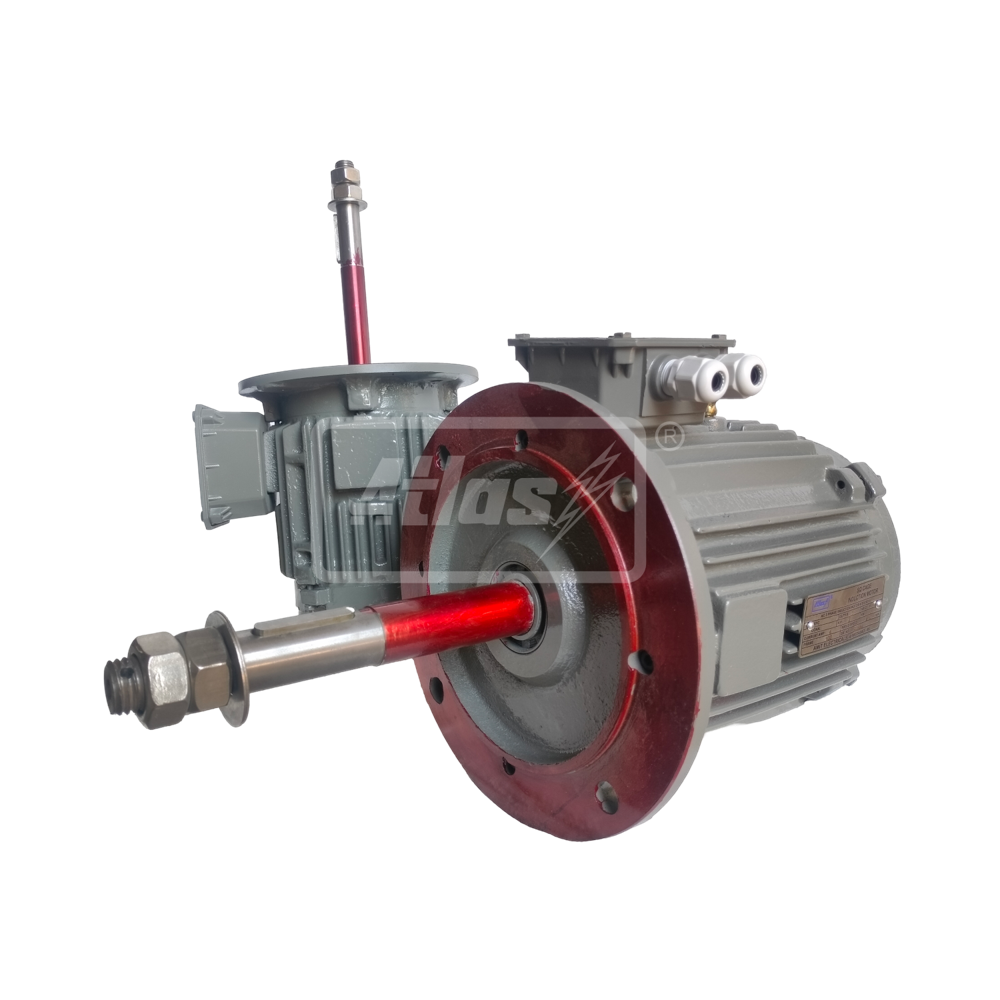

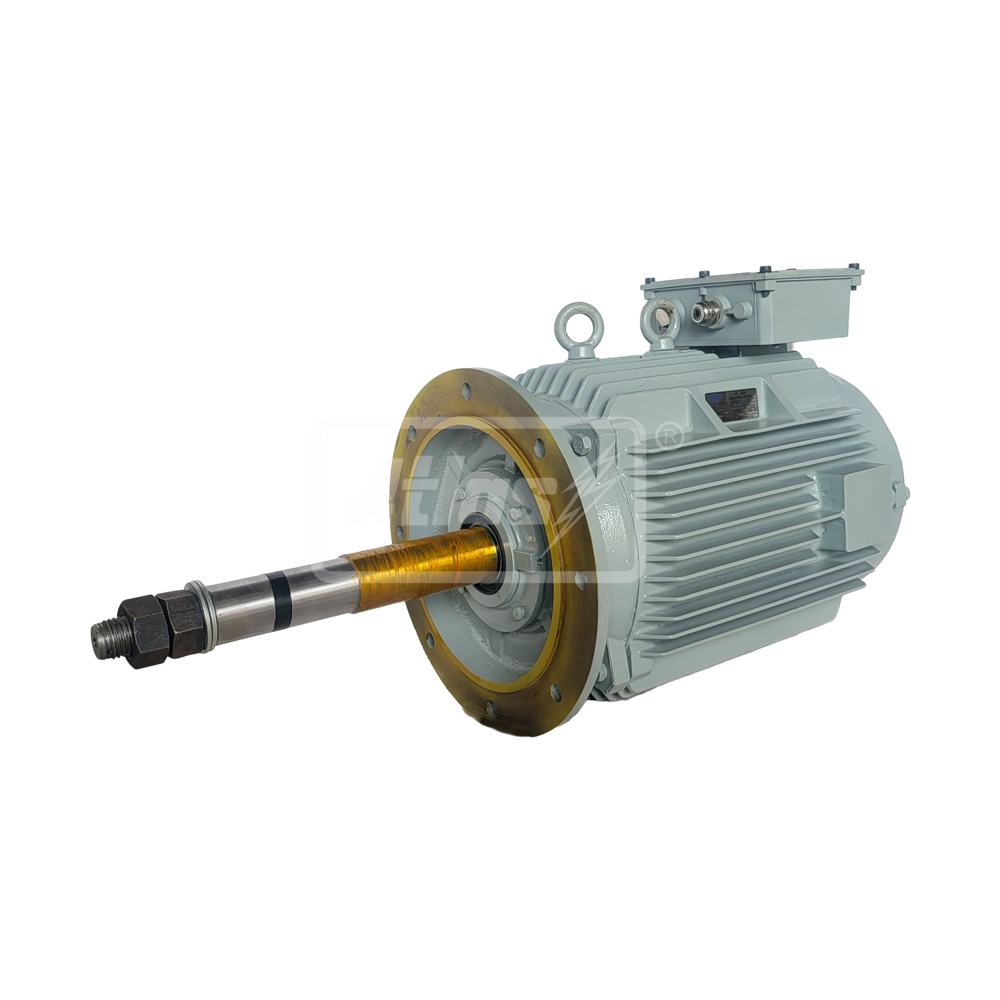

Cooling Tower Motor 3.0 HP 2.2 KW 500 RPM

Name: Cooling Tower Motor 3.0 HP 2.2 KW 500 RPM
Brand: AMIT ELECTRICALS
Price: 47850.0 INR
Availability: InStock

Price 47850.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 3.0 HP 2.2 KW 500 RPM Specification

Voltage
415 V

Power Rating
2.2 kW

Ambient Temperature
-15C to 40C

Standard
ISI, IEC 60034

Current Type
AC

Cooling Method
Air cooled

Efficacy
Premium efficiency

Torque
42 Nm (approx, at rated speed)

Poles Number
6

Starting Type
Direct On Line (DOL)

Features
Rugged construction, low vibration, noiseless operation

Horse Power
3.0 HP

Rated Frequency
50 Hz

Bearing Type
Deep groove ball bearing

Noise Level
<75 dB(A)

Sealed Type
TEFC (Totally Enclosed Fan Cooled)

Motor Type
Induction Motor

Rated Voltage
415 V

Product Type
Electric Motor

Output Power
2.2 KW

Frequency (MHz)
50 Hz

Protect Feature
IP55 protection

Phase
Three Phase

Speed
500 RPM

Power
3.0 HP

Color
Grey

Dimension (L*W*H)
Customized as per frame size

Weight
Approx 35 kg

Shaft Diameter
28 mm

Mounting Type
Foot/Flange Mount

IP Rating
IP55

Design
Squirrel Cage

Service Factor
1.15

Duty Type
S1 (Continuous Duty)

Enclosure
Cast Iron

Application
Industrial, Pumps, Fans, Compressors

Paint
Powder Coated

Rotor Type
Aluminum Die-cast

Vibration Level
Within permissible limits as per IEC standards

Insulation Class
F

Cooling Tower Motor 3.0 HP 2.2 KW 500 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 3.0 HP 2.2 KW 500 RPM

Take advantage of this Bargain offer on the champion-class Atlas Cooling Tower Motor by Amit Electricals, with a robust 3.0 HP and 2.2 KW output at 500 RPM. Renowned for its rugged cast iron build, this TEFC induction motor features premium efficiency, excellent IP55 protection, and a powder-coated finish for long-term durability. Advance Purchase is easy with Instant Checkout and a proposal that reflects true value. Perfect for pumps, fans, and compressors, this terrific motor is your solution for continuous industrial performance.

Champion Features & Versatile Application

Engineered with a sturdy cast iron enclosure and premium insulation Class F, this 3.0 HP, 2.2 KW motor is ideally suited for continuous S1 duty in industrial settings. Application methods include foot or flange mounting, while advanced design ensures noiseless and low-vibration operation. This excellent motor excels in demanding environments such as cooling towers, industrial HVAC, textile, and plastic machinery where high reliability and smooth performance are paramount.

Premium Samples & Reliable Nationwide Delivery

Premium samples of the Atlas 3.0 HP 2.2 KW 500 RPM motor are available upon request, providing you with the opportunity to estimate fit and performance before finalizing your proposal amount. Each unit is securely packaged for damage-free transit and timely delivery across the main domestic market. Amit Electricals ensures excellence from the first interaction to delivery-making your investment smooth and worry-free.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 3.0 HP 2.2 KW 500 RPM:

Q: How is the Atlas Cooling Tower Motor installed for different applications?

A: The motor supports both foot and flange (B5) mounting methods, making it adaptable to a wide range of installations like fans, industrial HVAC, and compressors. Please refer to the installation guide for proper setup.

Q: What are the main features of the motor's construction material?

A: The enclosure is made from robust cast iron, ensuring excellent durability, long service life, low vibration, and optimal heat dissipation, making it well-suited for high humidity and demanding industrial settings.

Q: When can I request for a sample and what does it include?

A: You can request a premium sample at any stage of your project planning. The sample allows you to evaluate the motor's build quality, suitability, and performance before making a bulk order or finalizing your proposal.

Q: Where is this product commonly used?

A: This motor is widely utilized in cooling towers for industrial HVAC, textile machinery, and plastic machinery. It is designed to perform reliably in environments with high humidity and continuous operation.

Q: What benefits does the IP55 protection provide?

A: The IP55 rating means the motor is protected against dust ingress and water jets, which makes it suitable for outdoor or harsh industrial environments, enhancing lifespan and performance reliability.

Q: How does the packaging ensure safe delivery in the domestic market?

A: Each unit is carefully packaged using high-quality materials to prevent damage during transit. Amit Electricals offers secure and timely delivery to all major domestic markets, ensuring products arrive in excellent condition.
