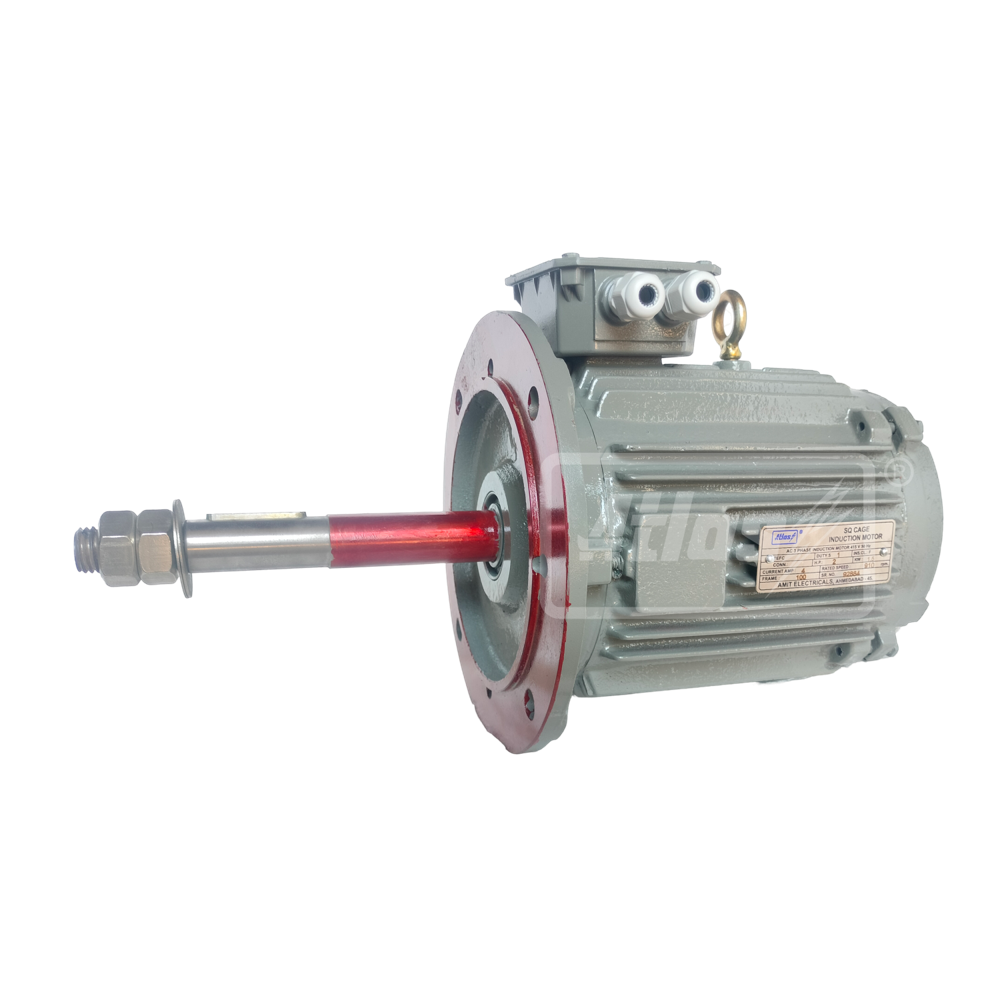

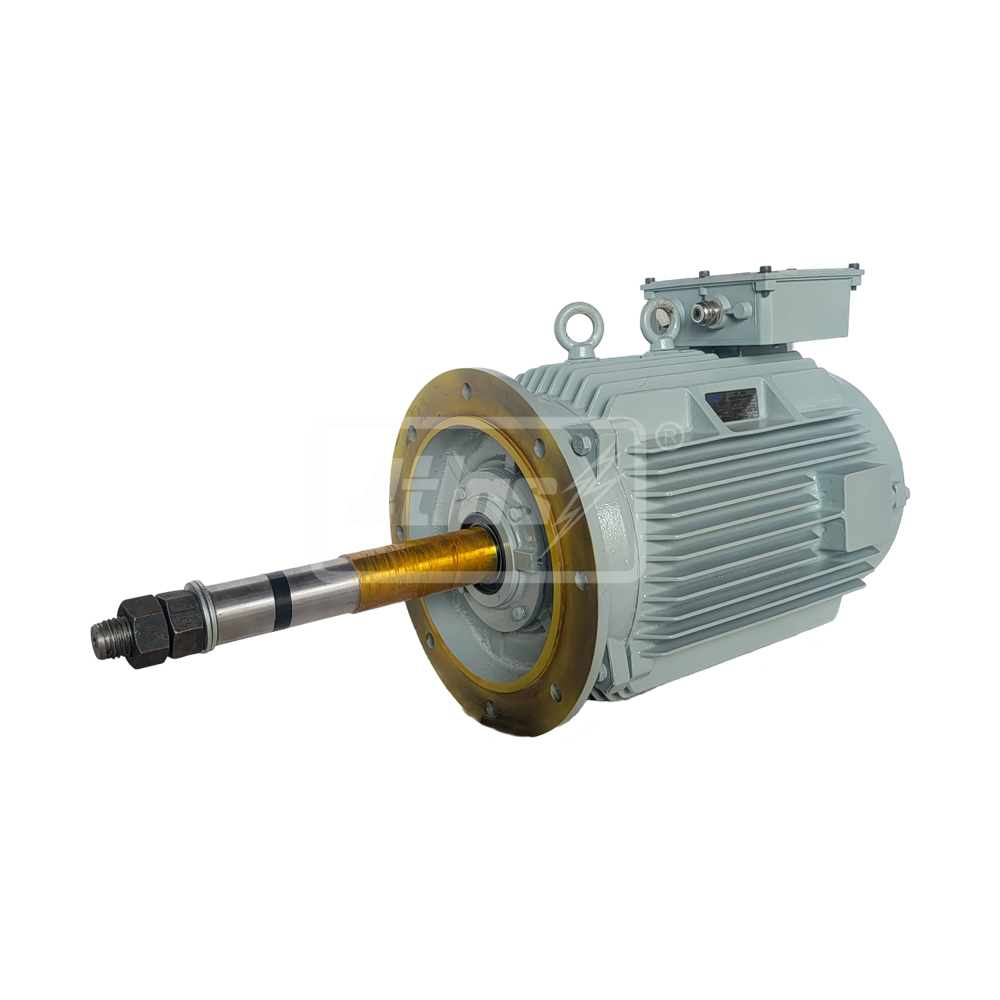

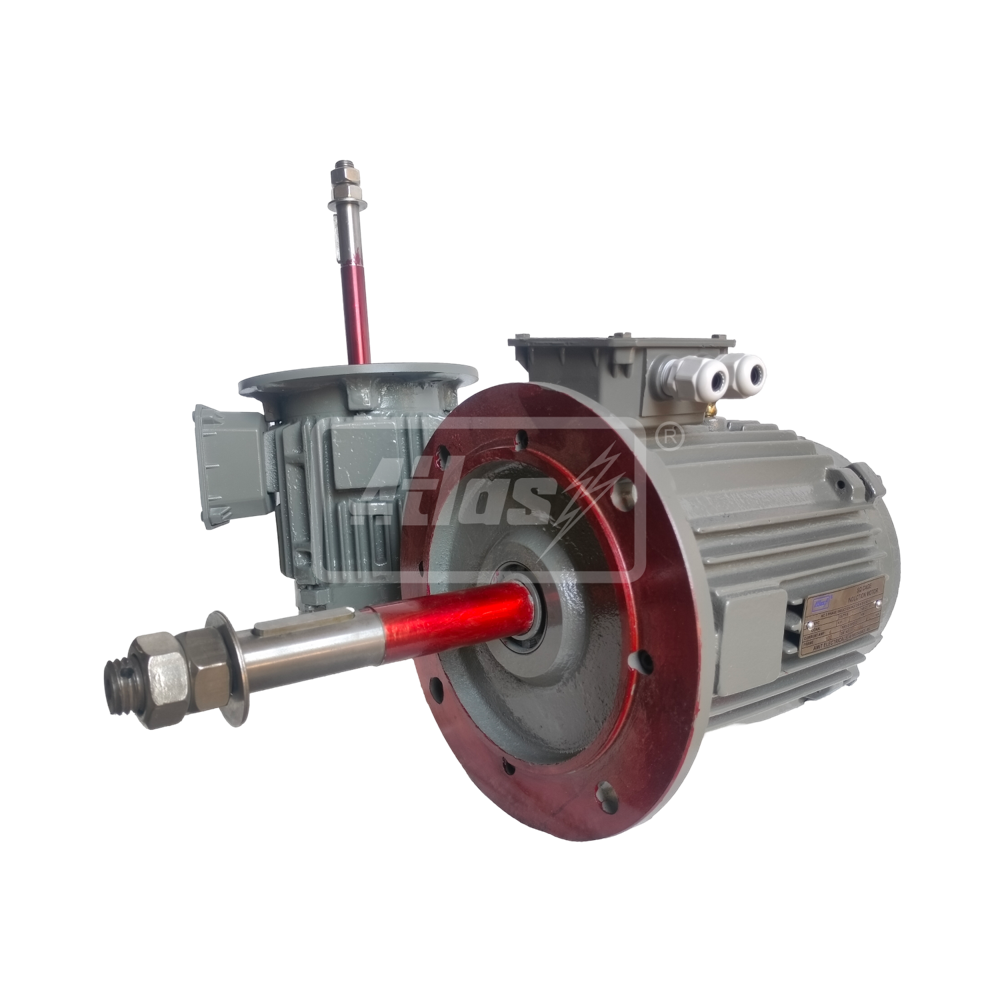

Cooling Tower Motor 25 HP 18.5 KW 600 RPM

Send Inquiry

Request To Call Back

Cooling Tower Motor 25 HP 18.5 KW 600 RPM

Name: Cooling Tower Motor 25 HP 18.5 KW 600 RPM
Brand: AMIT ELECTRICALS
Price: 140300.0 INR
Availability: InStock

Price 140300.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Cooling Tower Motor 25 HP 18.5 KW 600 RPM Specification

Torque
High Starting Torque

Features
Robust Construction, Energy Efficient, Low Vibration

Motor Type
Squirrel Cage Induction Motor

Efficacy
High Efficiency

Cooling Method
IC411

Sealed Type
Totally Enclosed Fan Cooled (TEFC)

Starting Type
Direct On Line (DOL)

Noise Level
< 70 dB

Bearing Type
Deep Groove Ball Bearing

Standard
IEC 60034

Poles Number
Other

Rated Frequency
50 Hz

Horse Power
25 HP

Current Type
AC

Ambient Temperature
Up to 50C

Rated Voltage
415 V

Power Rating
18.5 kW

Voltage
415 V

Product Type
Electric Motor

Output Power
18.5 kW

Frequency (MHz)
50 Hz

Protect Feature
IP55

Phase
Three Phase

Speed
600 RPM

Power
25 HP

Color
Grey

Dimension (L*W*H)
Standard Frame (specific dimensions as per manufacturer)

Weight
Approx. 250 kg

Shaft Diameter
Standard (As per frame size)

Mounting Type
Foot Mounted / Flange Mounted

IP Rating
IP55

Rotor Type
Aluminum Die Cast

Vibration Level
As per IS 12075

Insulation Class
F Class

Thermal Protection
PTC Thermistor (on request)

Application
Pumps, Fans, Compressors, Industrial Machinery

Relative Humidity
< 90% Non-Condensing

Lubrication
Grease Packed

Altitude
Suitable up to 1000m above sea level

Frame Material
Cast Iron

Duty Type
S1 Continuous Duty

Cooling Tower Motor 25 HP 18.5 KW 600 RPM Trade Information

Minimum Order Quantity
1 Piece

Delivery Time
7 Days

About Cooling Tower Motor 25 HP 18.5 KW 600 RPM

Discover exceptional value with the new release Atlas Cooling Tower Motor by AMIT ELECTRICALS. This elite 25 HP, 18.5 kW, 600 RPM masterpiece features a robust cast iron frame, aluminum die-cast rotor, and energy-efficient squirrel cage induction design. Engineered for illustrious durability in industrial HVAC, textile, and plastic machinery, it offers high starting torque and continuous S1 duty. With IP55 protection, advanced insulation, and top-tier performance, experience an unrivaled offer that merges precision with longevity-setting a new standard for industrial motors.

Optimized Applications & Advanced Features

The Atlas 25 HP 18.5 KW 600 RPM motor is specifically engineered for demanding media such as pumps, fans, compressors, and other industrial machinery. Utilizing a direct-on-line ignition and foot or flange mounting, it excels in high humidity environments and supports applications across multiple sectors. Enhanced with deep groove ball bearings, PTC thermistor (on request), and totally enclosed fan-cooled construction, it assures reliable performance and minimal vibration-even under continuous operation and challenging conditions.

Sample Availability & Streamlined Handover

Sample units of the 25 HP 18.5 KW 600 RPM Cooling Tower Motor can be arranged for reputed clients seeking comprehensive valuation and performance review prior to investment. Our main domestic market focuses on pan-India supply, with flexible proposal amounts tailored to varied industrial requirements. Post-approval, the handover and delivery process is seamless-generally within a committed time frame-ensuring your operations gain from this illustrious motor's superior technology and enduring efficiency without delay.

Company Name	AMIT ELECTRICALS
Brand	Atlas
Product Name	Cooling Tower Motor
Application	Specifically designed for cooling tower fan operations in high humidity areas like industrial hvac, textile machinery, plastic machinery
Range of Production	Power: 0.25 to 25 HP (0.18 to 18.5 KW) Frame: 63 to 250M Poles: 4, 6, 8, 10, 12 Speeds: 1500, 1000, 750, 600, 500 RPM @ 50 Hz
Mounting Types	Flange (B5)
Frame Material	Robust cast iron frame
Ratings	S1: Continuous Duty
Voltage & Frequency	Standard: 415 5%, 3 Phase, 50 Hz 3% Optional: 220, 380, 460, 525 V at various frequencies
Protection	IP55 protection Suitable for up to 90% relative humidity
Shaft	Material: Stainless Steel AISI-410 Nut & Washer: Stainless Steel AISI-202 Extended shaft for fan fitting Corrosion protection
Insulation & Duty	Insulation Class F Designed for continuous operation (S1)
Bearings & Oil Seal	Double shielded bearings (ZZ or 2RS) Pre-lubricated with high temp grease Oil seal prevents moisture ingress
Enclosure	T.E.S.C. (Totally Enclosed Surface Cooled)
Thermal Overload Protection	Optional T.O.P. switch available on demand
Earthing Terminals	Minimum two: one in terminal box, one on body
Paint	Semi-glossy synthetic enamel (special paints available on request)
Features	Highly efficient Durable Smooth finishing Economical price Precision design Long life

FAQ's of 25 HP 18.5 KW 600 RPM:

Q: How does the Atlas Cooling Tower Motor ensure reliable operation in high humidity environments?

A: The Atlas Cooling Tower Motor features an IP55-rated robust cast iron frame, corrosion-protected stainless steel shaft, oil-sealed bearings, and optional thermal overload protection, making it highly suitable for environments with up to 90% relative humidity.

Q: What industries can benefit from installing this 25 HP 18.5 KW 600 RPM motor?

A: Industries such as industrial HVAC, textile manufacturing, and plastic machinery benefit greatly, as the motor is specifically designed for cooling tower fans, pumps, compressors, and similar demanding applications.

Q: Where can this motor be mounted for optimal use?

A: The motor supports both foot-mounted and flange-mounted (B5) options, providing flexibility for integration into diverse systems and equipment configurations across different industrial setups.

Q: What process is followed for requesting a sample and completing the purchase?

A: To request a sample, customers can contact AMIT ELECTRICALS with their requirements. After valuation and proposal approval, the order is processed, and the product is handed over within the committed delivery schedule.

Q: When should users opt for the optional thermal protection feature?

A: Users should request the optional PTC thermistor or thermal overload protection when operating in environments with fluctuating temperatures or where enhanced safety against motor overheating is required.

Q: What are the key benefits of the motor's totally enclosed fan-cooled (TEFC) design?

A: The TEFC enclosure ensures the motor is protected from dust, moisture, and contamination, which extends operational life, reduces downtime, and maintains high efficiency in continuous-duty industrial applications.
