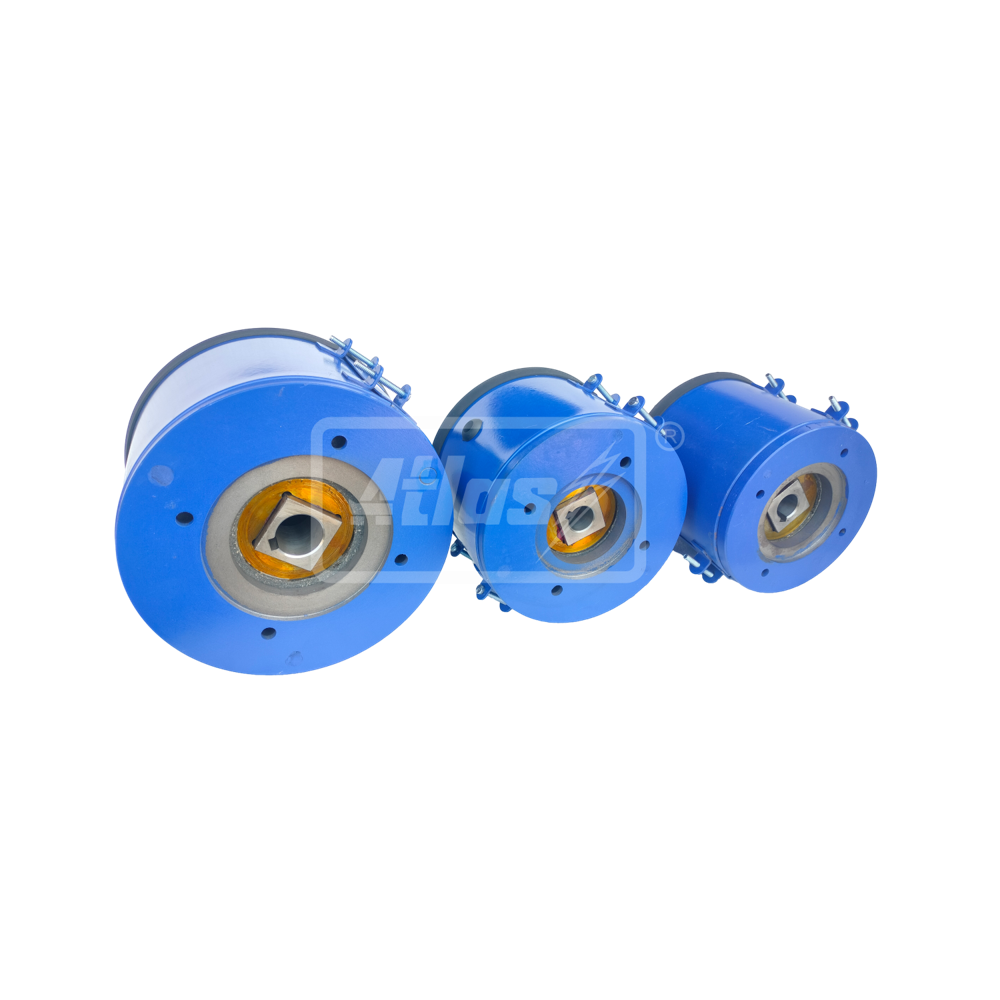

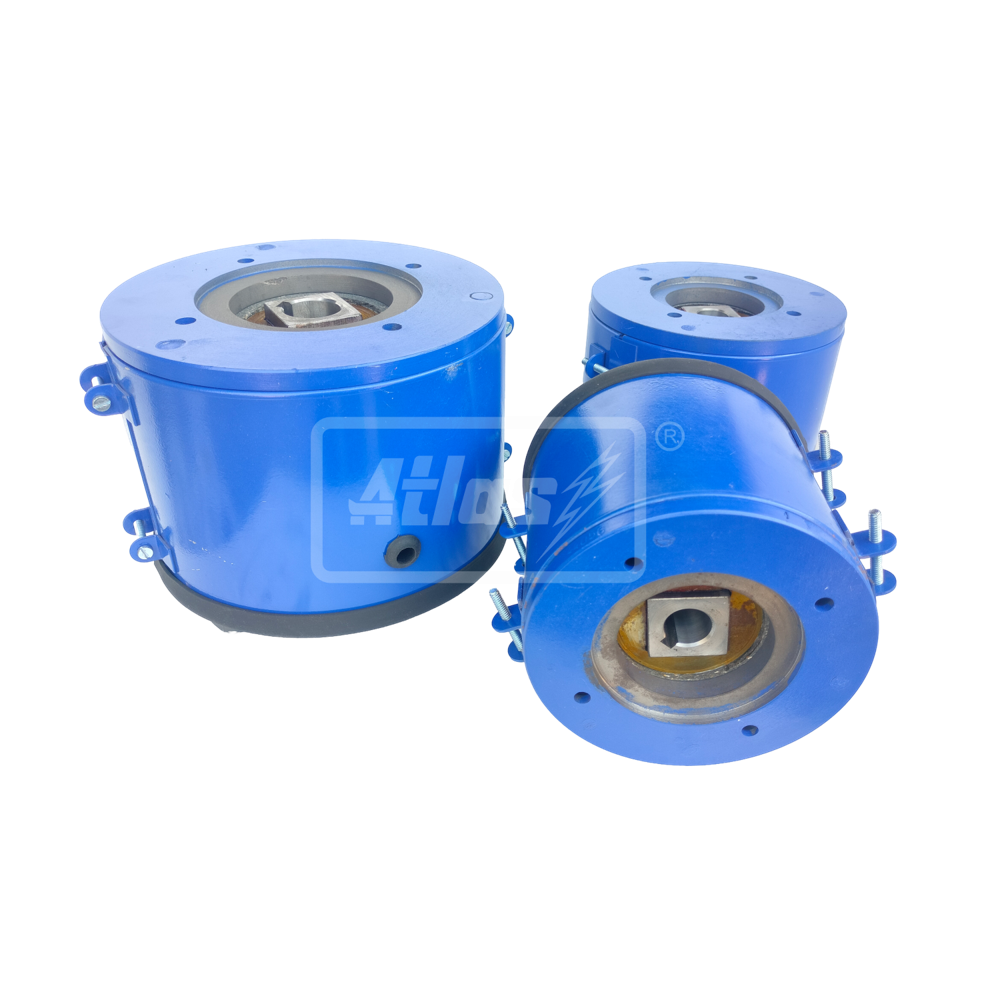

AC Fail Safe Brake

AC Fail Safe Brake
Send Inquiry
Product Code : 17
Brand Name : Atlas
Product Description

Our organization is engaged in manufacturing, exporting and supplying of premium quality AC Fail Safe Brake. These brakes are manufactured under strict supervision of our expert team with the incorporation of latest technology and advanced machinery. Widely used in machine tools, hydro extractors, coil winding machines, wire drawing machines, rubber mixing mills, rolling mills and printing machines, this brake is available in various dimensions and specifications. Our clients can avail this AC Fail Safe Brake at reasonable price.



  • Efficient performance
  • Long operational life
  • Noise free operation

A C Fail Safe Brake Design

Very compact and modern in design. Foundation is not necessary as they are directly mounted on non-driving end shaft of the motor. It consists of liner plates (Brake Disc) with square hole at the center. One corresponding piece of square hub is supplied with the brake. This hub is keyed to the motor shaft and the liner plate is free on this hub. Normally liner plate is gripped between two discs with the help of spring pressure. They work on 230/ 415 Volt A.C. When the current is supplied on the brake, one disc is attracted by electromagnet against pressure and the liner plate is released. Thus the brakes are  Once the brake is set it dose not require adjustment or maintenance. When the liner plates wear with the use then only air gap is required to be maintained periodically. An arrangement to release the brake manually could be provided on request.

Used in Machine Tools, Hydro Extactors, Coil winding Machines, Wire Drawing Machines, Rubber Mixing Mills, Rolling Mills, Printing Machines and in many other industries such as a Cement, Mining, Sugar, Textile, Material Handling etc..In case of power failure in machines like Hoists, Cranes, Winches, Elevators, etc.. Application of brake is must. We offer AC type brakes, called fail safe brake, as in case of power failure, these brakes apply mechanically.


  • Speedy performance
  • Noise free
  • Longer functional life

 Other Information

  • Pay Mode Terms: T/T (Bank Transfer)
  • Port of Dispatch: Ahmedabad, India
  • Production Capacity: 20000 piece per year
  • Delivery Time: As per the Order
  • Packaging Details: Export packing available

 And we are also offering Three Phase Motor, single phase motor, Torque motor, Vibrating motor, Crane and hoist duty motor, lift duty motor, Cooling tower motor, Two speed Motor, Single phase brake motor, Brake motor, Worm gear motor, helical gear motor, planetary gear motor, Fail safe brake, Bench Grinder machine, Bench polisher Machine, Flexible shaft Grinder machine, variable frequency derive, Ip 68 motor, Dual voltage, Cut section ac motor,  Gear Shaft, H class motor, Extend Shaft, Hollow Shaft Motor, Encoder Mounted Motor, Hollow shaft Brake motor, Center flange Vibrating motor, Geared Brake motor, Dabble flange motor, Two speed Gear Motor, Two speed Geared Brake motor, Two speed Vibrating motor, force cooling motor coolant pumps .
