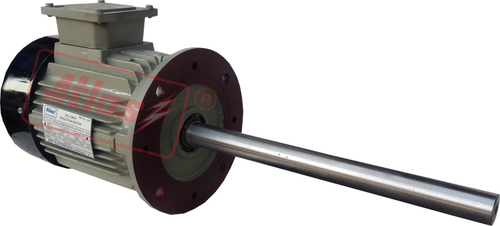

Stirrer Motor

Stirrer Motor
Stirrer Motor
Product Code : Stirrer Motor
Brand Name : "ATLAS"
Product Description

Amit Electricals Manufacture, Exporter and Supplier of Long shaft motor. It Total custom built motor. We are manufacturing Long Shaft motor as per customer requirements.

Long shaft motor Specifications

Range of Production

Three Phase Motors 0.10 H.p. to 20H.p. (0.075 K.W. to 15 K.W.) Frame 63 to 180L in 2, 4, 6, 8, 10 & 12 Pole

Single Phase Motors 0.10 H.p. to 3H.p. (0.075 K.W. to 2.2 K.W.) Frame 63 to 112M in 2 and 4 Pole

Mounting Type

-Foot (B3) -Flange (B5) -Face (B14)

-Foot with Flange (B35)  -Foot with Face (B34)

Three Phase Long shaft motors are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.

All Long shaft motor Standard Three phase Motors are continuous rated to comply with performance standards.

Voltage and Frequency
Three phase Long shaft motor Supply volts 415 ± 5% 3 phase 50 Hz. ± 3% We are also capable for Manufacturing three phase motor in different volts and frequency Like 220, 380, 460, 525

Long shaft motor are IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

Three Phase Long shaft motor supply with class B & F insulation as standard feature. Also supply H on request of customer.

Terminal Box
All Long Shaft Motor Supply with Terminal box on top position For Foot mounted (B3). Other position box like left or right supply on customer request

Long shaft motor shaft Made from high carbon steel Pipe to provide exceptional Strength & rigidity to minimize deflection. Also available in S.S. 304, 316, 410 or any other specific material.

All Long shaft motor Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise

Bearings & Lubrication
Long shaft motor Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Long shaft motor Supply with Enclosure T.E.F.C. (Totally Enclosed Fan Cooling).

Thermal Overload Protection
We can also supply motor with T.O.P Switch on Demand of Customer. It can provide motor extra safety form over lord protection.

Earthing terminals
Long shaft motor provided with minimum two earthling terminals. One in the terminal box and other on foot.

All standard Three Phase Long shaft motor are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.

Long shaft motor are widely Use in Pump, Gear Box, Chemical stirr, Textile ect.
