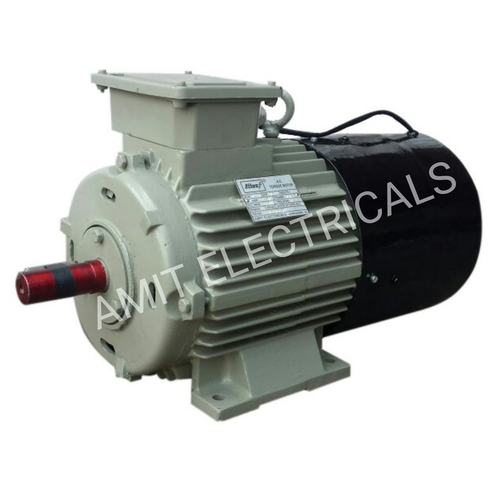

Encoder Mounted Motor

Encoder Mounted Motor
Send Inquiry
Product Code : 36
Brand Name : Atlas
Product Description

IntroductionIn The modern time of automation there is need to control Motor Through Encorder. Amit electricals able to supply A c motor with Encorder. It help in automation many ways for Commanding machine.

Motor Specification
RangeThree Phase Motors 0.10 H.p. to 75 H.p. (0.075 K.W. to 55 K.W.) Frame 63 to 250M in 2, 4, 6, 8, 10 & 12 Pole

MountingMotor Mounting Foot, Flange, Face

StandardsAll Three Phase Motors Performance conforms to dimensions according to IS 1231 & IS 2223

FrameThree Phase Motors are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.

RatingsAll Standard Three phase Motors are continuous rated to comply with performance standards.

Voltage and FrequencyThree phase Motor Supply volts 415
± 5% 3 phase 50 Hz. Â± 3% ( also available in Other Volts)


EnclosuresThree Phase Motors are IP-44 Protection as defined in IS: 4691. Motors can be supplied with IP-54 and IP-55 on request.

InsulationThree Phase Motors supply with class B & F insulation as standard feature. Also supply H on request of customer.

ShaftThree phase motor shaft Made from high carbon steel to provide exceptional Strength & rigidity to minimize deflection.

RotorAll Three Phase Motors Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise

Bearings & LubricationThree Phase Motors Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Earthing terminalsThree Phase Motors provided with minimum two earthling terminals. One in the terminal box and other on foot.

PaintsAll standard Three Phase Motors are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.

Encoder Detail
TypeWe are supply motor with incremental with hollow shaft encoder. The encoders are integrated under the fan cover.

Resolution PPR and SpeedWe supply motor with 1024, 1500, 2000, 2048, 4096 PPR Encoder and operating maximum speed 6000 Rpm

Out put Detail
Rs 422 / TTL / HTL

Features
Simple and compact Construction

Accurate result
