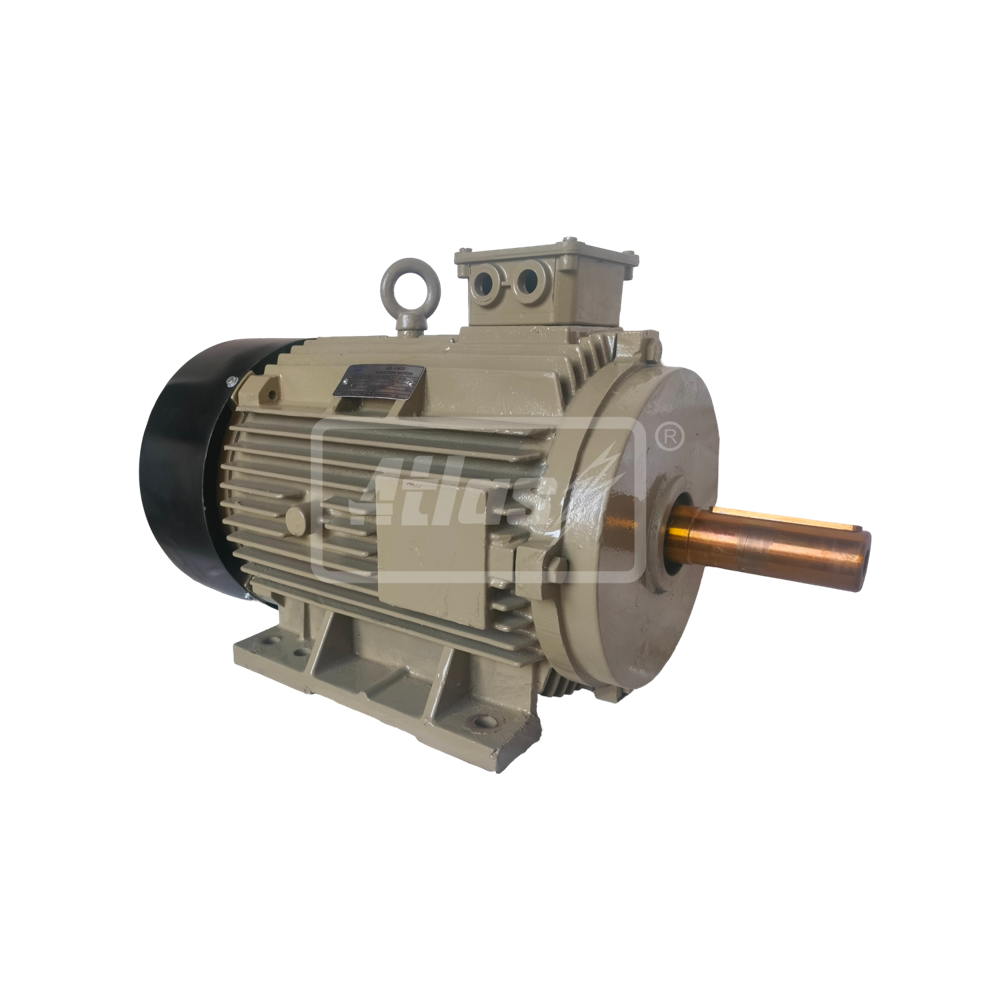

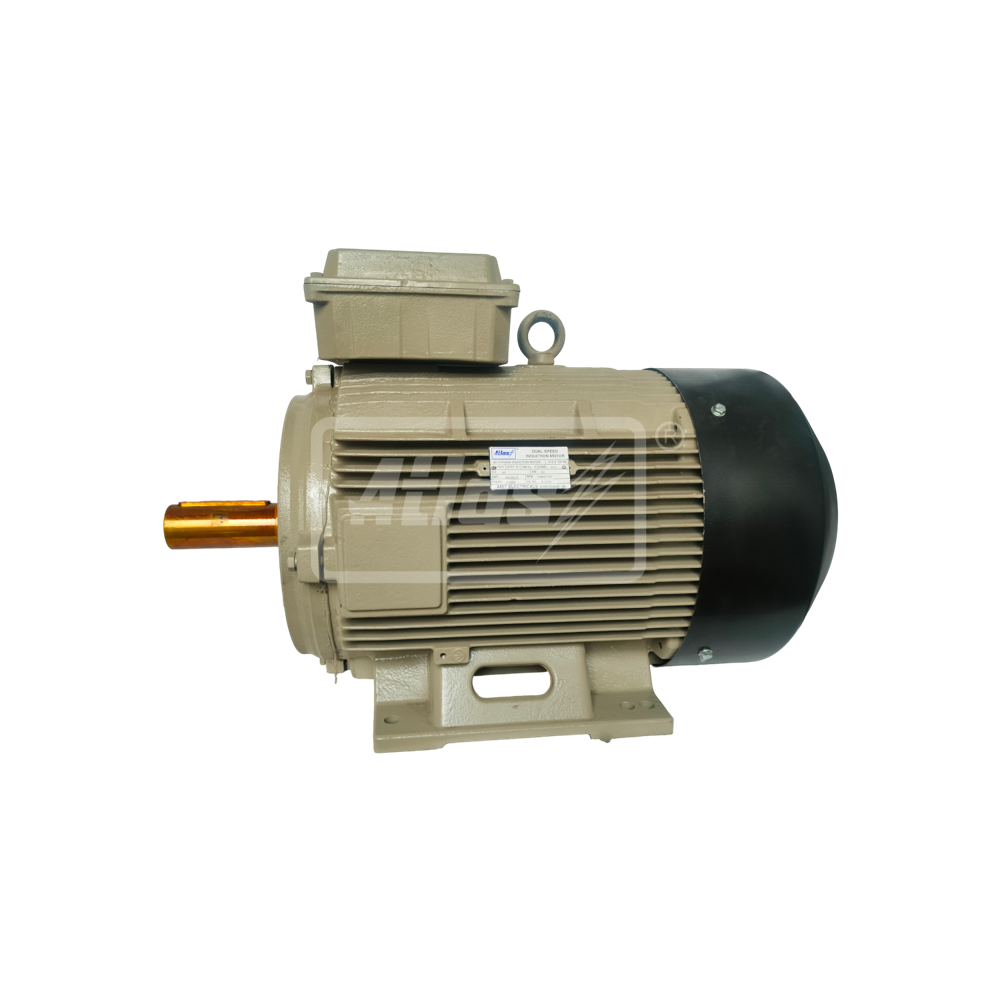

Two Speed Motors

Two Speed  Motors
Two Speed Motors
Product Code : 16
Brand Name : Atlas
Product Description

Introduction Application
Amit Electricals manufacturing AtlasĀ Make Dual speed Motor In year 1978 since Company establishment it in Our products range. Dual Speed motors specially design for Working in Two different speed. Designed for work in applications in which multiple speeds are required

Range
We have wide production Range in Two speed motor

0.25 to 20 H.P. ( 0.18 to 15 K.w.)



Two speed motor are offer in 2/4, 2/6, 2/8, 4/6, 4/8,& 6/8 poles. (3000/1500, 3000/1000, 3000/750, 1500/1000, 1500/750 & 1000/750)



Dual sped motor available in single winding 2/4, 4/8, 4/6 and other pole in double winding. Two speed motor are suitable to 415+-5% 50 Hz+-3%. & combined +-6%. On customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also

Mounting
Dual speed motors are available in

- Foot - Flange - Face

Frame
Dual speed Motor ar supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.


Insulation
All dual speed motor is supplied with F class insulation but temperature rise restricted to H class.

Enclosures
Dual speed Motor IP-44 Protection as defined in IS: 4691. Dual speed Motors are also can be supplied with IP-54 and IP-55 on request.


Duty
Our dual speed Motor is suitable for: -

Continues duty (S1)

Short time duty (S2)

Intermittent periodic duty (S3)

Intermittent duty with Starting (S4)

Insulation
Dual speed Motor supply with class F insulation as standard feature. Also supply H on request of customer.

Shaft
Made from high carbon steel to provide exceptional Strength & rigidity to minimize deflection.


Rotor
Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced.Its make motor low amplitudes of Vibration & noise

Bearings & Lubrication
Bearings are adequately lubricated with lithium based high temp up to 150 deg. All theDual Speed motor are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.


Earthing terminals
Motor provided with minimum two earthling terminals. One in the terminal box and other on foot.

Paints
All motor are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.

Applications
Dual speed motor are use in Many application which multiple speeds are required. Pharmaceuticals, Crane, hoist, lift, construction, Chemical industries, Food equipment, Ceramic industries Machine tools for different application.

We can also provide dual speed gear motor, dual brake motor.
