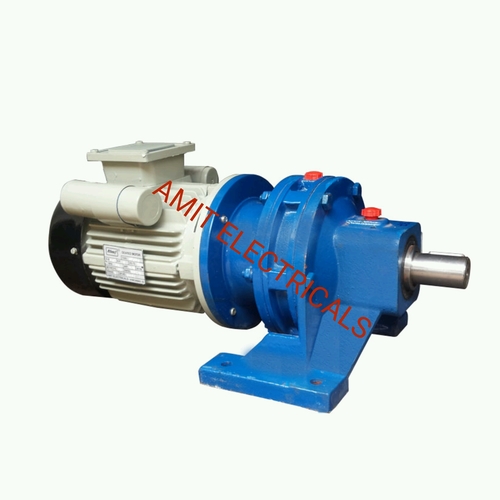

Cycloidal Reducers

Cycloidal Reducers

Product Details:

  • Material Cast Iron
  • Speed 8 to 140 RPM
  • Supply Ability : 10000 Piece Per Year
7100 INR/Piece
X

Price And Quantity

  • 1 Piece
  • 7100 INR/Piece

Product Specifications

  • 8 to 140 RPM
  • Cast Iron

Trade Information

  • Ahmedabad
  • Cash in Advance (CID), Cash Advance (CA), Cash on Delivery (COD), Cash Against Delivery (CAD)
  • 10000 Piece Per Year
  • Export Packing (As per the Suitable in Air/Shipping/Cargo Consignment)
  • Africa, Middle East, South America, Asia
  • ISO / CE

Product Description

We are introducing a widespread arrangement of well-designed Cycloidal Reducers. They are utilized in a diverse number of applications for torque and speed conversion. The Reducers are accessible in different specifications to effectively cater diverse industrial demands. They have a hard-boiled structure, high strength, impact proof body, industrial based tensile strength and corrosion resistance. The Cycloidal Reducers are demanded widely in the market for their optimum and excellent working as per the expectations of users.

Range Ratio
  • We having Wide Range in Cycloidal speed reducer it Range Ratio 11, 17, 23, 29, 35, 43, 59, 71 and 87

Working Principal

Cycloidal reducers working principal is simple. The input shaft is mounted eccentrically to bearing causing the cycloidal disc to move in a circle. Cycloidal reducers disc will independently rotate around the bearing as it is pushed against the ring gear. The number of pins on the ring gear is larger than the number of pins on the cycloidal disc. It need to accurate machining. This causes the cycloidal disc to rotate around the bearing faster than the input shaft is moving it around, giving an overall rotation in the direction opposing the rotation of the input shaft. The cycloidal disc has holes that are slightly larger than the output roller pins that go inside them. The output pins will move around in the holes to achieve steady rotation of the output shaft from the wobbling movement of the cycloidal disc.



Single Phase Cycloidal speed reducer

K W 0.1 to 2.2. (0.15 To 3 Hp) in 215  volts 50 HZ. other voltage and frequency also we can supply on demand.


Three Phase Cycloidal speed reducer

K W 0.1 to 2.2. (0.15 To 10 Hp) in 415  volts 50 HZ. other voltage and frequency also we can supply on demand.

Mounting

cycloidal speed reducer are Available in Foot and Flange Mounting for Various application

Body

Cyclodical Gear box body is Made by a robust, rugged cast iron frame with integral feet. It provid long life.

Shaft

Shaft id of single piece accurately made out of case carburized alloy steel. Solid with shaft made of high grade alloy steel so as to give hardware resisting surface duly case hardened & super finished. The Bearing & Oil Seal generals are accurately, cylindrically Ground to give smooth running.

Oil seals

Superior quality oil seals are user to ensure complete oil tight.

Lubrication

Gear and bearing are automatically and positively lubricated by means of serially selected synthetic lubricant at all speed by splash of their lubricant from the sump. Thus no special attention is necessary for long time of gear lubrication

Application

Conveyors, Packaging, Crane travel, Material handling lift, Machine tools application.

Features

-Excellent performance and high efficiency

-Long life and Little breakdown

-Strong against impact

-Wide output reduction ratio, large torque and good capability of enduring overloads

-Running stably, low noise and wearing well Wide applicability.
