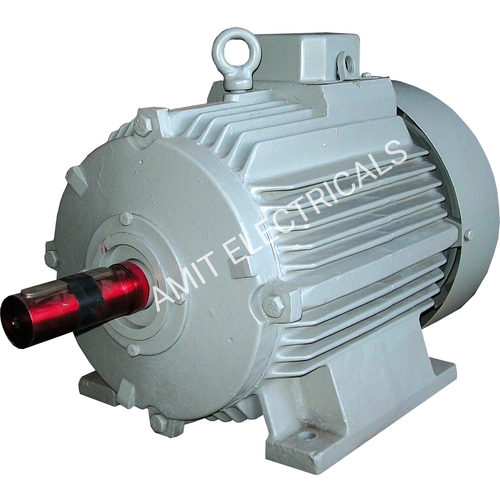

Dual Voltage Motor

Dual Voltage Motor
Dual Voltage Motor
Product Code : 36
Brand Name : Atlas
Product Description

Introduction
Amit electrical manufacturing Dual voltage motor in various ratio. Dual voltage motor has the ability to operate on two different voltages and still maintain the motor characteristics of the nameplate specifications. As the voltage goes down the current will increase in value but the HP and RPM will remain the same.


Dual Voltage Motor Specifications


Range
0.10 H.p. to 75 H.p. (0.075 K.W. to 55 K.W.) Frame 63 to 250M in 2, 4, 6, 8, 10 & 12Pole

Mounting
Dual Voltage Motor Supply with Foot, Flange, Face

Standards
Performance conforms to Is: 12615 and dimensions according to IS 1231 & IS 2223

Frame
Dual voltage motor are supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.

Ratings
All Dual voltage motor Motors are continuous rated to comply with performance standards. Other Rating also supply on Customer request.

Voltage and Frequency
We are Manufacturing Dual voltage motor in Ratio 1 : 1.732 & 2 : 1 with 50 or 60 Hz
Ratio 1 : 1.732 (48/83, 120/210, 220/380, 240/415, 380/660 & 400/690)
Ratio  2: 1        (96/48, 230/115, 440/220)



Enclosures
Dual voltage motor IP-44 Protection as defined in IS: 4691. Dual voltage motor can be supplied with IP-54 and IP-55 on request.

Insulation
Dual voltage motor supply with class F insulation as standard feature. Also supply H on request of customer.

Shaft
Dual voltage motor Shaft Made from high carbon steel to provide exceptional Strength & rigidity to minimize deflection.

Rotor
Dual voltage motor Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced. Its make motor low amplitudes of Vibration & noise

Bearings & Lubrication
Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the motors are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.

Earthling terminals
Dual voltage motor provided with minimum two earthling terminals. One in the terminal box and other on foot.

Paints
All Dual voltage motor are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.

Application
Manufacture design dual voltage is to make this motor available for any country used because every country have a different voltage. It Can Help to all Machine Manufacture who are Export.

Other Dual Voltage  Products

Dual Voltage Two speed Motor                          Dual Voltage  Crane Duty Motor

Dual Voltage  Cooling Tower Motor                    Dual Voltage  Torque Motor

Dual Voltage  Vibrating Motor



Other Information
  • Pay Mode Terms: T/T (Bank Transfer)
  • Minimum Order Quantity: 1 Piece
  • Port of Dispatch: Ahmedabad,India
  • Production Capacity: 20000
  • Delivery Time: As per the Order
  • Packaging Details: Export Packing (As per the Suitable in Air/Shipping/Cargo Consignment)
