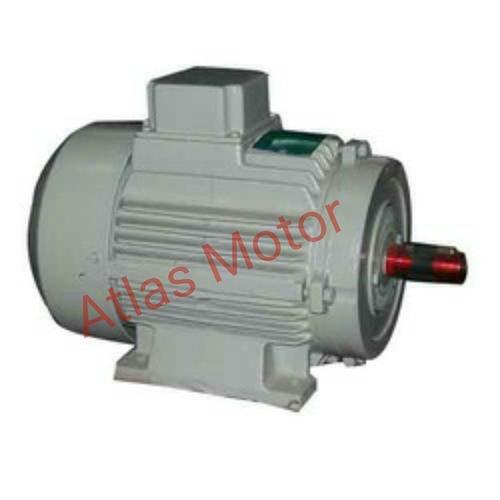

Crane Duty Two Speed Motor

Crane Duty Two Speed Motor
Send Inquiry
Product Code : 37
Brand Name : Atlas
Product Description

Introduction Application

Amit Electricals manufacturing Atlas Make Crane Duty Dual speed Motor In year 1978 since Company establishment it in Our products range.Crane Duty Dual Speed motors specially design for Working in Two different speed. Designed for work in applications in which multiple speeds are required


Range
We have wide production Range in Crane Duty Two speed motor


0.25 to 20 H.P. ( 0.18 to 15 K.w.)


Two speed motor are offer in 2/4, 2/6, 2/8, 4/6, 4/8,& 6/8 poles. (3000/1500, 3000/1000, 3000/750, 1500/1000, 1500/750 & 1000/750)


Crane Duty Dual sped motor available in single winding 2/4, 4/8, 4/6 and other pole in double winding. Two speed motor are suitable to 415+-5% 50 Hz+-3%. & combined +-6%. On customer request we are also able supply motor in 220, 380, 460, 525 volts on HZ. 50 or 60 Also

Mounting
Crane Duty Dual speed motors are available in

- Foot - Flange - Face

Frame
Crane Duty Dual speed Motor ar supplied in a robust, rugged cast iron frame with integral feet. On Request we can supply motor in aluminum body up to 100 L frame.


Insulation
All Crane Duty dual speed motor is supplied with F class insulation but temperature rise restricted to B class.


Enclosures
Dual speed Motor IP-44 Protection as defined in IS: 4691. Dual speed Motors are also can be supplied with IP-54 and IP-55 on request.


Duty
Our Crane Duty dual speed Motor is suitable for: -



Short time duty (S2)

Intermittent periodic duty (S3)

Intermittent duty with Starting (S4)

Insulation
Crane Duty Dual speed Motor supply with class F insulation as standard feature. Also supply H on request of customer.

Shaft
Crane Duty Dual speed Motor Shaft Made from high carbon steel to provide exceptional Strength & rigidity to minimize deflection.


Rotor
Crane Duty Dual speed Motor Rotors are of high-pressure E.C. Grad aluminum die-cast. Every rotor is dynamically balanced.Its make motor low amplitudes of Vibration & noise

Bearings & Lubrication
Bearings are adequately lubricated with lithium based high temp up to 150 deg. All the Dual Speed motor are supplied with C3 ball bearing & fully charged with lithium base grease at the time of assembly.


Earthing terminals
Crane Duty Dual speed Motor Motor provided with minimum two earthling terminals. One in the terminal box and other on foot.

Paints
All Crane Duty Dual speed Motor are painted with semi glossy synthetic enamel paint. However sp. Paint is available on request.


Applications
Crane Duty Dual speed Motor are use in Many application which multiple speeds are required. Crane, hoist, lift, Hoist ect.


We can also provide dual speed gear motor, Dual Speed Geared Brake Motor,

 Other Information

  • Pay Mode Terms: T/T (Bank Transfer)
  • Minimum Order Quantity: 1 Piece
  • Port of Dispatch: Ahmedabad
  • Production Capacity: 20000
  • Delivery Time: As per the Order
  • Packaging Details: Export Packing (As per the Suitable in Air/Shipping/Cargo Consignment)
